0. 环境准备
下载示例Project ：
go get -d github.com/wolfogre/go-pprof-practice 关键代码：
package main
import (
_ "net/http/pprof" // 会自动注册 handler 到 http server，方便通过 http 接口获取程序运行采样报告
)
func main() {
runtime.GOMAXPROCS(1) // 限制 CPU 使用数，避免过载
runtime.SetMutexProfileFraction(1) // 开启对锁调用的跟踪
runtime.SetBlockProfileRate(1) // 开启对阻塞操作的跟踪
go func() {
// 启动一个 http server，注意 pprof 相关的 handler 已经自动注册过了
if err := http.ListenAndServe(":6060", nil); err != nil {
log.Fatal(err)
}
os.Exit(0)
}()
}
http://localhost:6060/debug/pprof/看到如下内容：
/debug/pprof/
Types of profiles available:
Count Profile
27 allocs
3 block
0 cmdline
45 goroutine
27 heap
1 mutex
0 profile
6 threadcreate
0 trace
full goroutine stack dump
Profile Descriptions:
allocs: A sampling of all past memory allocations
block: Stack traces that led to blocking on synchronization primitives
cmdline: The command line invocation of the current program
goroutine: Stack traces of all current goroutines
heap: A sampling of memory allocations of live objects. You can specify the gc GET parameter to run GC before taking the heap sample.
mutex: Stack traces of holders of contended mutexes
profile: CPU profile. You can specify the duration in the seconds GET parameter. After you get the profile file, use the go tool pprof command to investigate the profile.
threadcreate: Stack traces that led to the creation of new OS threads
trace: A trace of execution of the current program. You can specify the duration in the seconds GET parameter. After you get the trace file, use the go tool trace command to investigate the trace.下面正式开始排查
1.排查内存占用过高
C:\Users\xxx>go tool pprof http://localhost:6060/debug/pprof/heap
Fetching profile over HTTP from http://localhost:6060/debug/pprof/heap
Saved profile in C:\Users\xxx\pprof\pprof.alloc_objects.alloc_space.inuse_objects.inuse_space.003.pb.gz
Type: inuse_space
Time: Sep 16, 2020 at 4:10pm (CST)
Entering interactive mode (type "help" for commands, "o" for options)
(pprof) top
Showing nodes accounting for 1GB, 100% of 1GB total
flat flat% sum% cum cum%
1GB 100% 100% 1GB 100% github.com/wolfogre/go-pprof-practice/animal/muridae/mouse.(*Mouse).Steal
0 0% 100% 1GB 100% github.com/wolfogre/go-pprof-practice/animal/muridae/mouse.(*Mouse).Live
0 0% 100% 1GB 100% main.main
0 0% 100% 1GB 100% runtime.main
(pprof)输入命令之后，进入交互终端，可以通过help查看支持的命令
(pprof) help
Commands:
callgrind Outputs a graph in callgrind format
comments Output all profile comments
disasm Output assembly listings annotated with samples
dot Outputs a graph in DOT format
eog Visualize graph through eog
evince Visualize graph through evince
gif Outputs a graph image in GIF format
gv Visualize graph through gv
kcachegrind Visualize report in KCachegrind
list Output annotated source for functions matching regexp
pdf Outputs a graph in PDF format
peek Output callers/callees of functions matching regexp
png Outputs a graph image in PNG format
proto Outputs the profile in compressed protobuf format
ps Outputs a graph in PS format
raw Outputs a text representation of the raw profile
svg Outputs a graph in SVG format
tags Outputs all tags in the profile
text Outputs top entries in text form
top Outputs top entries in text form
topproto Outputs top entries in compressed protobuf format
traces Outputs all profile samples in text form
tree Outputs a text rendering of call graph
web Visualize graph through web browser
weblist Display annotated source in a web browser
o/options List options and their current values
quit/exit/^D Exit pprof
Options:
call_tree Create a context-sensitive call tree
compact_labels Show minimal headers
divide_by Ratio to divide all samples before visualization
drop_negative Ignore negative differences
edgefraction Hide edges below <f>*total
focus Restricts to samples going through a node matching regexp
hide Skips nodes matching regexp
ignore Skips paths going through any nodes matching regexp
mean Average sample value over first value (count)
nodecount Max number of nodes to show
nodefraction Hide nodes below <f>*total
noinlines Ignore inlines.
normalize Scales profile based on the base profile.
output Output filename for file-based outputs
prune_from Drops any functions below the matched frame.
relative_percentages Show percentages relative to focused subgraph
sample_index Sample value to report (0-based index or name)
show Only show nodes matching regexp
show_from Drops functions above the highest matched frame.
source_path Search path for source files
tagfocus Restricts to samples with tags in range or matched by regexp
taghide Skip tags matching this regexp
tagignore Discard samples with tags in range or matched by regexp
tagshow Only consider tags matching this regexp
trim Honor nodefraction/edgefraction/nodecount defaults
trim_path Path to trim from source paths before search
unit Measurement units to display
Option groups (only set one per group):
cumulative
cum Sort entries based on cumulative weight
flat Sort entries based on own weight
granularity
addresses Aggregate at the address level.
filefunctions Aggregate at the function level.
files Aggregate at the file level.
functions Aggregate at the function level.
lines Aggregate at the source code line level.
: Clear focus/ignore/hide/tagfocus/tagignore
type "help <cmd|option>" for more information本文主要使用 top list web 三个命令
(pprof) list Steal
Total: 1GB
ROUTINE ======================== github.com/wolfogre/go-pprof-practice/animal/muridae/mouse.(*Mouse).Steal in E:\goproject\thirdparty\src\github.com\wolfogre\go-pprof-practice\animal\muridae\mouse\mouse.go
1GB 1GB (flat, cum) 100% of Total
. . 45:
. . 46:func (m *Mouse) Steal() {
. . 47: log.Println(m.Name(), "steal")
. . 48: max := constant.Gi
. . 49: for len(m.buffer) * constant.Mi < max {
1GB 1GB 50: m.buffer = append(m.buffer, [constant.Mi]byte{})
. . 51: }
. . 52:}
(pprof)很明显 m.buffer = append(m.buffer, [constant.Mi]byte{}) 导致了内存占用过高。

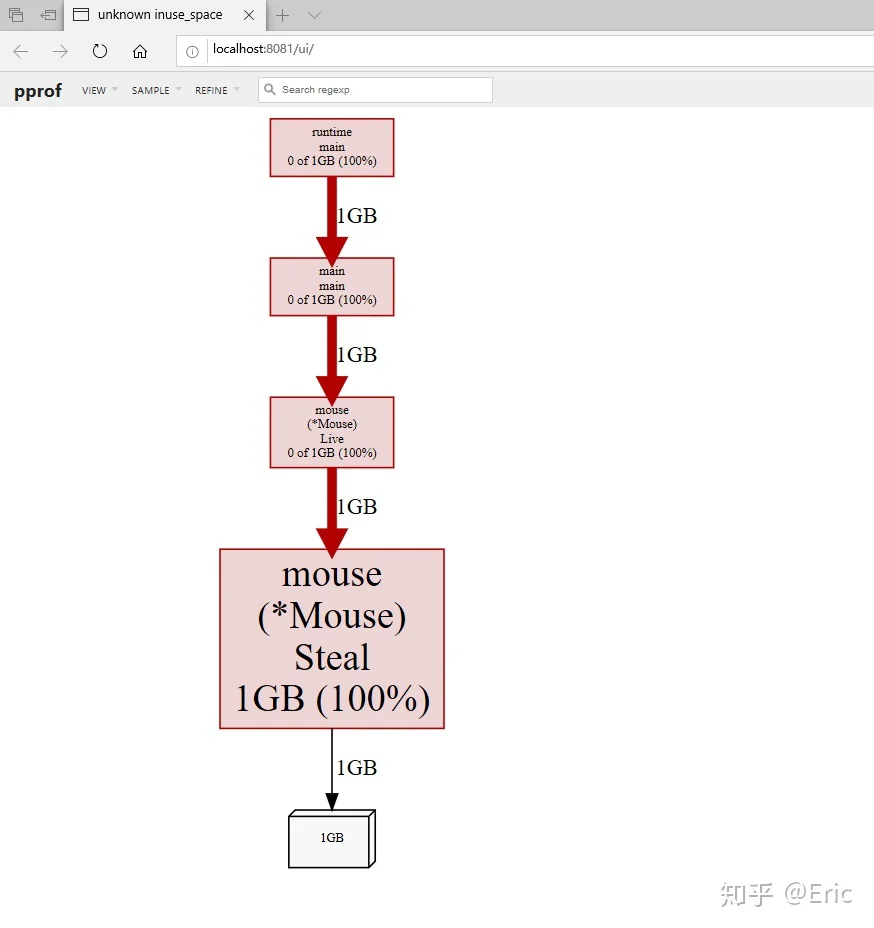

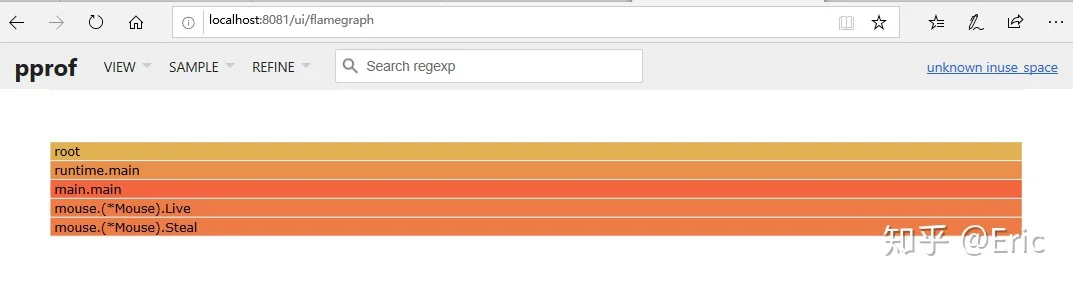

启动可视化UI
C:\Users\xxx>go tool pprof -http=":8081" pprof\pprof.alloc_objects.alloc_space.inuse_objects.inuse_space.003.pb.gzUI支持多种视图，包括TOP /Graph /Flame Graph/ Peek /Source 等等，非常直观好用
2.排查CPU占用过高
C:\Users\xxx>go tool pprof http://localhost:6060/debug/pprof/profile?seconds=60
Fetching profile over HTTP from http://localhost:6060/debug/pprof/profile?seconds=60
Saved profile in C:\Users\xxx\pprof\pprof.samples.cpu.003.pb.gz
Type: cpu
Time: Sep 16, 2020 at 4:18pm (CST)
Duration: 1.06mins, Total samples = 42.39s (66.77%)
Entering interactive mode (type "help" for commands, "o" for options)
(pprof) top
Showing nodes accounting for 42.37s, 100% of 42.39s total
Dropped 16 nodes (cum <= 0.21s)
flat flat% sum% cum cum%
42.37s 100% 100% 42.37s 100% github.com/wolfogre/go-pprof-practice/animal/felidae/tiger.(*Tiger).Eat
0 0% 100% 42.37s 100% github.com/wolfogre/go-pprof-practice/animal/felidae/tiger.(*Tiger).Live
0 0% 100% 42.38s 100% main.main
0 0% 100% 42.38s 100% runtime.main
(pprof) list Eat
Total: 42.39s
ROUTINE ======================== github.com/wolfogre/go-pprof-practice/animal/felidae/tiger.(*Tiger).Eat in E:\goproject\thirdparty\src\github.com\wolfogre\go-pprof-practice\animal\felidae\tiger\tiger.go
42.37s 42.37s (flat, cum) 100% of Total
. . 19:}
. . 20:
. . 21:func (t *Tiger) Eat() {
. . 22: log.Println(t.Name(), "eat")
. . 23: loop := 10000000000
42.37s 42.37s 24: for i := 0; i < loop; i++ {
. . 25: // do nothing
. . 26: }
. . 27:}
. . 28:
. . 29:func (t *Tiger) Drink() {
(pprof)

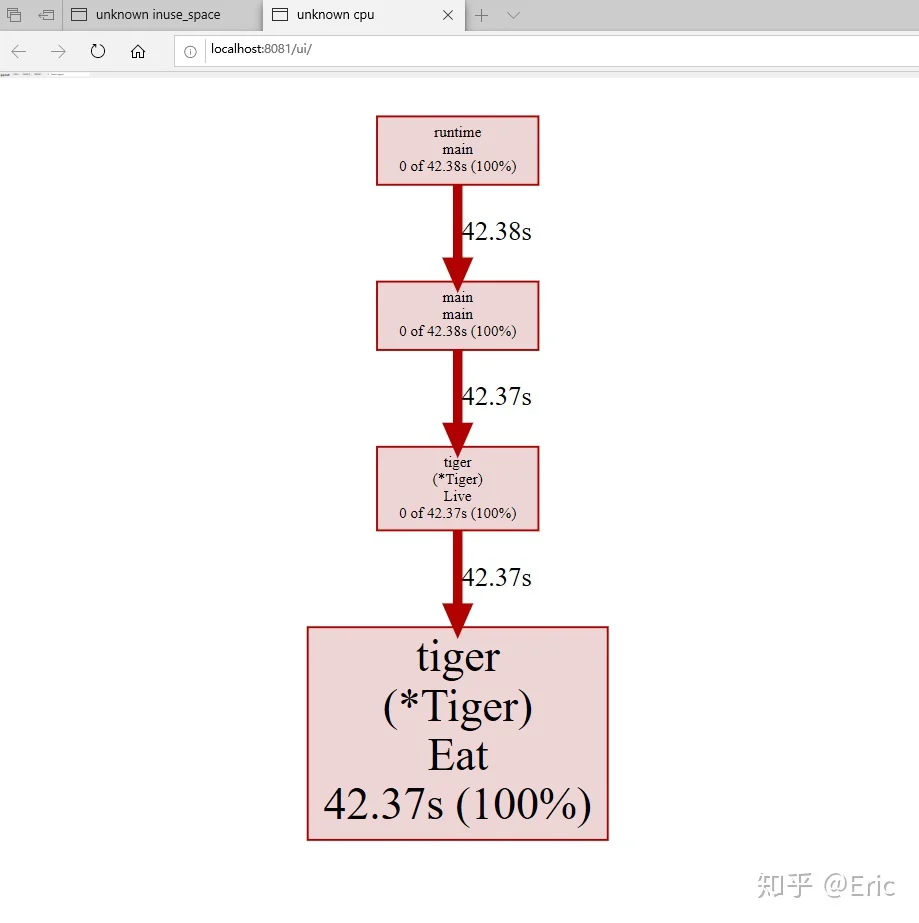

启动可视化UI
C:\Users\xxx>go tool pprof -http=":8081" pprof\pprof.samples.cpu.003.pb.gz
3.排查频繁内存回收
启动时增加参数 GODEBUG=gctrace=1
gc日志显示出程序正在频繁gc
gc 2 @7.993s 0%: 0+3.9+0 ms clock, 0+0.99/0/0+0 ms cpu, 7->7->6 MB, 8 MB goal, 1 P
gc 3 @7.997s 0%: 0+5.9+0 ms clock, 0+0.99/0/0+0 ms cpu, 14->14->12 MB, 15 MB goal, 1 P
gc 4 @8.002s 0%: 0+9.9+0 ms clock, 0+0/0.99/0+0 ms cpu, 28->28->24 MB, 29 MB goal, 1 P
gc 5 @8.013s 0%: 0+16+0 ms clock, 0+0/0/0+0 ms cpu, 56->56->48 MB, 57 MB goal, 1 P
gc 6 @8.032s 0%: 0+39+0 ms clock, 0+0/0/0+0 ms cpu, 112->112->96 MB, 113 MB goal, 1 P
gc 7 @8.076s 0%: 0+71+0 ms clock, 0+0/0/0+0 ms cpu, 224->224->192 MB, 225 MB goal, 1 P
gc 8 @8.154s 0%: 0+141+0 ms clock, 0+0/0.99/0+0 ms cpu, 448->448->384 MB, 449 MB goal, 1 P
gc 9 @8.309s 0%: 0+284+0 ms clock, 0+0/0/0+0 ms cpu, 896->896->768 MB, 897 MB goal, 1 P
gc 10 @8.621s 0%: 0+561+0 ms clock, 0+0/0/0+0 ms cpu, 1792->1792->1536 MB, 1793 MB goal, 1 Ppprof命令
这里我们使用web命令，web命令会生成一个svg格式的图片，与UI界面上显示的Graph一致。
首次使用时可能会出错，因为需要安装图形化工具graphviz。工具下载地址：
C:\Users\xxx>go tool pprof http://localhost:6060/debug/pprof/allocs
Fetching profile over HTTP from http://localhost:6060/debug/pprof/allocs
Saved profile in C:\Users\xxx\pprof\pprof.alloc_objects.alloc_space.inuse_objects.inuse_space.004.pb.gz
Type: alloc_space
Time: Sep 16, 2020 at 4:31pm (CST)
Entering interactive mode (type "help" for commands, "o" for options)
(pprof)
(pprof) top
Showing nodes accounting for 2.01GB, 100% of 2.01GB total
flat flat% sum% cum cum%
2GB 99.22% 99.22% 2GB 99.22% github.com/wolfogre/go-pprof-practice/animal/muridae/mouse.(*Mouse).Steal
0.02GB 0.78% 100% 0.02GB 0.78% github.com/wolfogre/go-pprof-practice/animal/canidae/dog.(*Dog).Run
0 0% 100% 0.02GB 0.78% github.com/wolfogre/go-pprof-practice/animal/canidae/dog.(*Dog).Live
0 0% 100% 2GB 99.22% github.com/wolfogre/go-pprof-practice/animal/muridae/mouse.(*Mouse).Live
0 0% 100% 2.01GB 100% main.main
0 0% 100% 2.01GB 100% runtime.main
(pprof) list Steal
Total: 2.01GB
ROUTINE ======================== github.com/wolfogre/go-pprof-practice/animal/muridae/mouse.(*Mouse).Steal in E:\goproject\thirdparty\src\github.com\wolfogre\go-pprof-practice\animal\muridae\mouse\mouse.go
2GB 2GB (flat, cum) 99.22% of Total
. . 45:
. . 46:func (m *Mouse) Steal() {
. . 47: log.Println(m.Name(), "steal")
. . 48: max := constant.Gi
. . 49: for len(m.buffer) * constant.Mi < max {
2GB 2GB 50: m.buffer = append(m.buffer, [constant.Mi]byte{})
. . 51: }
. . 52:}
(pprof) list Run
Total: 2.01GB
ROUTINE ======================== github.com/wolfogre/go-pprof-practice/animal/canidae/dog.(*Dog).Run in E:\goproject\thirdparty\src\github.com\wolfogre\go-pprof-practice\animal\canidae\dog\dog.go
16MB 16MB (flat, cum) 0.78% of Total
. . 38: log.Println(d.Name(), "pee")
. . 39:}
. . 40:
. . 41:func (d *Dog) Run() {
. . 42: log.Println(d.Name(), "run")
16MB 16MB 43: _ = make([]byte, 16 * constant.Mi)
. . 44:}
. . 45:
. . 46:func (d *Dog) Howl() {
. . 47: log.Println(d.Name(), "howl")
. . 48:}

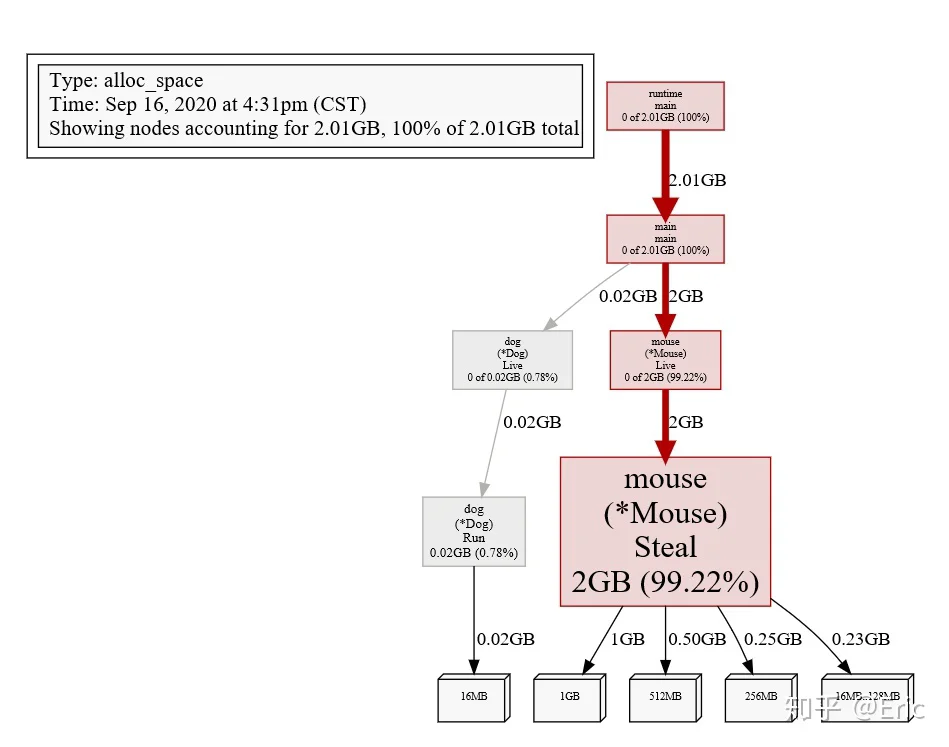

(pprof) web
(pprof)
4.排查协程泄露/协程失控
同样使pprof top list web 四个步骤
C:\Users\xxx>go tool pprof http://localhost:6060/debug/pprof/goroutine
Fetching profile over HTTP from http://localhost:6060/debug/pprof/goroutine
Saved profile in C:\Users\xxx\pprof\pprof.goroutine.001.pb.gz
Type: goroutine
Time: Sep 16, 2020 at 4:38pm (CST)
Entering interactive mode (type "help" for commands, "o" for options)
(pprof)
(pprof) top
Showing nodes accounting for 45, 100% of 45 total
Showing top 10 nodes out of 36
flat flat% sum% cum cum%
43 95.56% 95.56% 43 95.56% runtime.gopark
1 2.22% 97.78% 1 2.22% net/http.(*connReader).backgroundRead
1 2.22% 100% 1 2.22% runtime/pprof.writeRuntimeProfile
0 0% 100% 40 88.89% github.com/wolfogre/go-pprof-practice/animal/canidae/wolf.(*Wolf).Drink.func1
0 0% 100% 1 2.22% github.com/wolfogre/go-pprof-practice/animal/canidae/wolf.(*Wolf).Howl
0 0% 100% 1 2.22% github.com/wolfogre/go-pprof-practice/animal/canidae/wolf.(*Wolf).Howl.func1
0 0% 100% 1 2.22% github.com/wolfogre/go-pprof-practice/animal/canidae/wolf.(*Wolf).Live
0 0% 100% 1 2.22% internal/poll.(*FD).Accept
0 0% 100% 1 2.22% internal/poll.(*FD).acceptOne
0 0% 100% 1 2.22% internal/poll.(*ioSrv).ExecIO
(pprof) list Drink
Total: 45
ROUTINE ======================== github.com/wolfogre/go-pprof-practice/animal/canidae/wolf.(*Wolf).Drink.func1 in E:\goproject\thirdparty\src\github.com\wolfogre\go-pprof-practice\animal\canidae\wolf\wolf.go
0 40 (flat, cum) 88.89% of Total
. . 29:
. . 30:func (w *Wolf) Drink() {
. . 31: log.Println(w.Name(), "drink")
. . 32: for i := 0; i < 10; i++ {
. . 33: go func() {
. 40 34: time.Sleep(30 * time.Second)
. . 35: }()
. . 36: }
. . 37:}
. . 38:
. . 39:func (w *Wolf) Shit() {

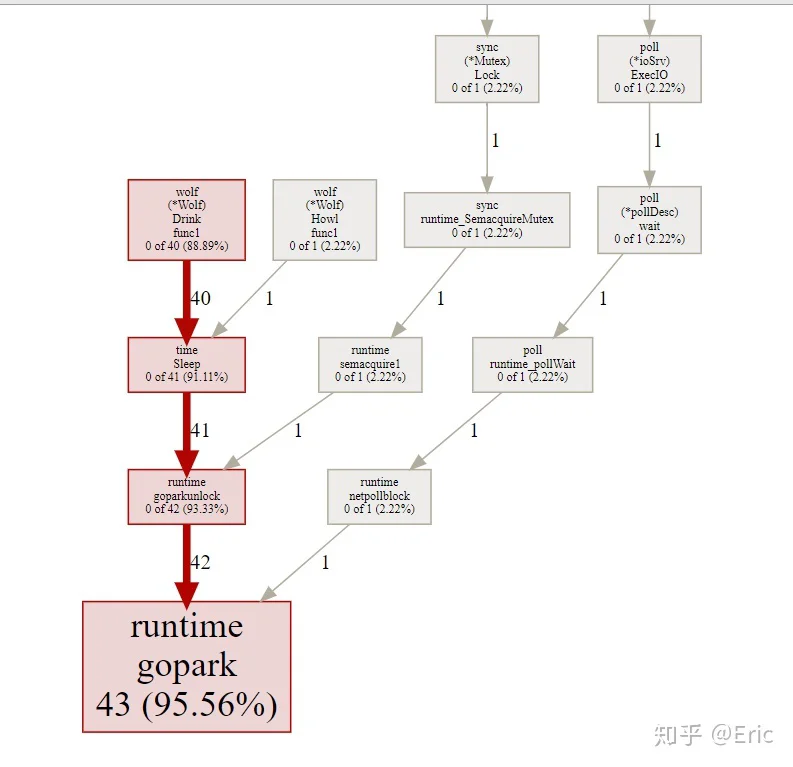

(pprof) web
(pprof)

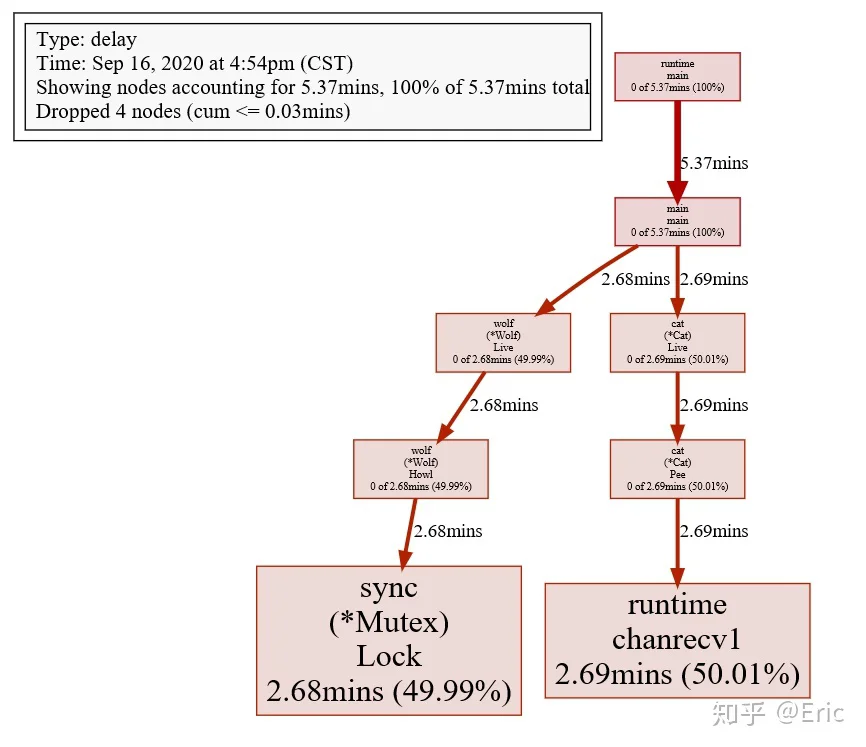

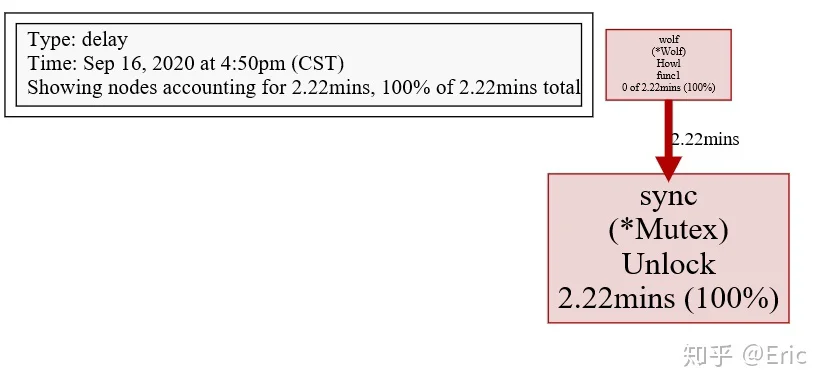

5.排查锁的争用
C:\Users\xxx>go tool pprof http://localhost:6060/debug/pprof/mutex
Fetching profile over HTTP from http://localhost:6060/debug/pprof/mutex
Saved profile in C:\Users\xxx\pprof\pprof.contentions.delay.004.pb.gz
Type: delay
Time: Sep 16, 2020 at 4:52pm (CST)
Entering interactive mode (type "help" for commands, "o" for options)
(pprof) top
Showing nodes accounting for 2.47mins, 100% of 2.47mins total
flat flat% sum% cum cum%
2.47mins 100% 100% 2.47mins 100% sync.(*Mutex).Unlock
0 0% 100% 2.47mins 100% github.com/wolfogre/go-pprof-practice/animal/canidae/wolf.(*Wolf).Howl.func1
(pprof) list How1
Total: 2.47mins
(pprof) list func1
Total: 2.47mins
ROUTINE ======================== github.com/wolfogre/go-pprof-practice/animal/canidae/wolf.(*Wolf).Howl.func1 in E:\goproject\thirdparty\src\github.com\wolfogre\go-pprof-practice\animal\canidae\wolf\wolf.go
0 2.47mins (flat, cum) 100% of Total
. . 53:
. . 54: m := &sync.Mutex{}
. . 55: m.Lock()
. . 56: go func() {
. . 57: time.Sleep(time.Second)
. 2.47mins 58: m.Unlock()
. . 59: }()
. . 60: m.Lock()
. . 61:}
(pprof)
6. 排查阻塞操作
C:\Users\xxx>go tool pprof http://localhost:6060/debug/pprof/block
Fetching profile over HTTP from http://localhost:6060/debug/pprof/block
Saved profile in C:\Users\xxx\pprof\pprof.contentions.delay.005.pb.gz
Type: delay
Time: Sep 16, 2020 at 4:54pm (CST)
Entering interactive mode (type "help" for commands, "o" for options)
(pprof) top
Showing nodes accounting for 5.37mins, 100% of 5.37mins total
Dropped 4 nodes (cum <= 0.03mins)
flat flat% sum% cum cum%
2.69mins 50.01% 50.01% 2.69mins 50.01% runtime.chanrecv1
2.68mins 49.99% 100% 2.68mins 49.99% sync.(*Mutex).Lock
0 0% 100% 2.68mins 49.99% github.com/wolfogre/go-pprof-practice/animal/canidae/wolf.(*Wolf).Howl
0 0% 100% 2.68mins 49.99% github.com/wolfogre/go-pprof-practice/animal/canidae/wolf.(*Wolf).Live
0 0% 100% 2.69mins 50.01% github.com/wolfogre/go-pprof-practice/animal/felidae/cat.(*Cat).Live
0 0% 100% 2.69mins 50.01% github.com/wolfogre/go-pprof-practice/animal/felidae/cat.(*Cat).Pee
0 0% 100% 5.37mins 100% main.main
0 0% 100% 5.37mins 100% runtime.main
(pprof) list Pee
Total: 5.37mins
ROUTINE ======================== github.com/wolfogre/go-pprof-practice/animal/felidae/cat.(*Cat).Pee in E:\goproject\thirdparty\src\github.com\wolfogre\go-pprof-practice\animal\felidae\cat\cat.go
0 2.69mins (flat, cum) 50.01% of Total
. . 34:}
. . 35:
. . 36:func (c *Cat) Pee() {
. . 37: log.Println(c.Name(), "pee")
. . 38:
. 2.69mins 39: <-time.After(time.Second)
. . 40:}
. . 41:
. . 42:func (c *Cat) Climb() {
. . 43: log.Println(c.Name(), "climb")
. . 44:}
(pprof) web
(pprof)
