概览

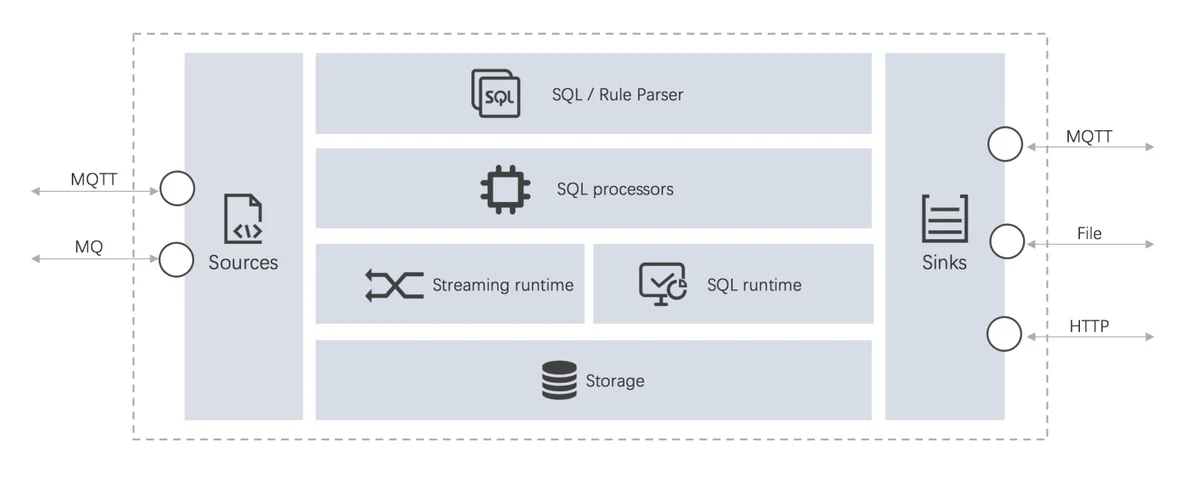

源 (Source)SQL (业务逻辑处理)目标 (Sink)
  • 源(Source):流式数据的数据源,例如来自于 MQTT 服务器 的数据。在 EdgeX 的场景下,数据源就是 EdgeX 消息总线(EdgeX message bus),可以是来自于 ZeroMQ 或者 MQTT 服务器;

  • SQL:SQL 是你流式数据处理指定业务逻辑的地方,Kuiper 提供了 SQL 语句可以对数据进行抽取、过滤和转换;

  • 目标(Sink):目标用于将分析结果发送到特定的目标。例如,将分析结果发送到另外的 MQTT 服务器,或者一个 HTTP Rest 地址; arch.png

使用 Kuiper,一般需要完成以下三个步骤。

  • 创建流,就是你定义数据源的地方
  • 写规则
    • 为数据分析写 SQL
    • 指定一个保存分析结果的目标
  • 部署,并且运行规则

该教程描述如何使用 Kuiper 处理来自于 EdgeX 消息总线的数据。

Kuiper EdgeX 集成

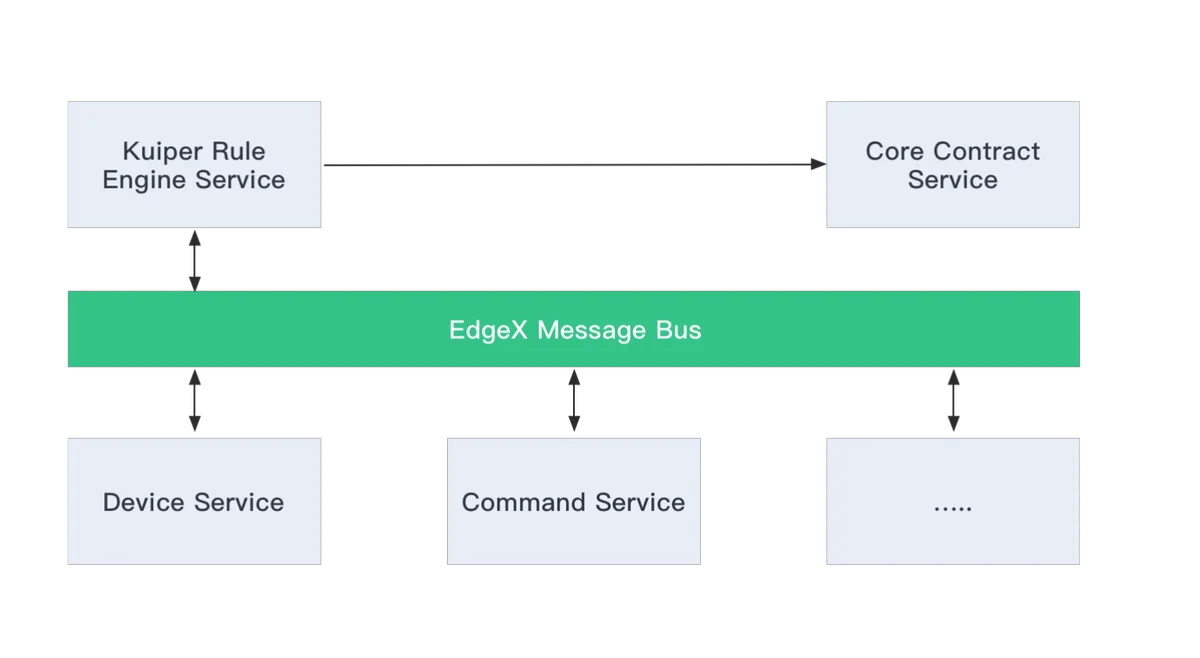

在不同的微服务之间,EdgeX 使用消息总线进行数据交换。它包含了一个抽象的消息总线接口,并分别实现了 ZeroMQ 与 MQTT,在不同的微服务之间信息交互的支持。Kuiper 和 EdgeX 的集成工作包含了以下三部分,

CREATE STREAM demo (temperature bigint) WITH (FORMAT="JSON"...)


运行 EdgeX Docker 实例

打开 EdgeX develop-scripts 项目,并且下载 Geneva 版本的 Docker compose file,然后启动所有的 EdgeX 容器。

# docker-compose -f ./docker-compose-nexus-redis-no-secty.yml up -d --build
docker ps
$ docker ps
CONTAINER ID        IMAGE                                                                  COMMAND                  CREATED             STATUS              PORTS                                                                                              NAMES
5618c93027a9        nexus3.edgexfoundry.org:10004/docker-device-virtual-go:master          "/device-virtual --p…"   37 minutes ago      Up 37 minutes       0.0.0.0:49990->49990/tcp                                                                           edgex-device-virtual
fabe6b9052f5        nexus3.edgexfoundry.org:10004/docker-edgex-ui-go:master                "./edgex-ui-server"      37 minutes ago      Up 37 minutes       0.0.0.0:4000->4000/tcp                                                                             edgex-ui-go
950135a7041d        emqx/kuiper:0.3.1                                                      "/usr/bin/docker-ent…"   37 minutes ago      Up 37 minutes        0.0.0.0:20498->20498/tcp, 9081/tcp, 0.0.0.0:48075->48075/tcp                                       edgex-kuiper
c49b0d6f9347        nexus3.edgexfoundry.org:10004/docker-support-scheduler-go:master       "/support-scheduler …"   37 minutes ago      Up 37 minutes       0.0.0.0:48085->48085/tcp                                                                           edgex-support-scheduler
4265dcc2bb48        nexus3.edgexfoundry.org:10004/docker-core-command-go:master            "/core-command -cp=c…"   37 minutes ago      Up 37 minutes       0.0.0.0:48082->48082/tcp                                                                           edgex-core-command
4667160e2f41        nexus3.edgexfoundry.org:10004/docker-app-service-configurable:master   "/app-service-config…"   37 minutes ago      Up 37 minutes       48095/tcp, 0.0.0.0:48100->48100/tcp                                                                edgex-app-service-configurable-rules
9bbfe95993f5        nexus3.edgexfoundry.org:10004/docker-core-metadata-go:master           "/core-metadata -cp=…"   37 minutes ago      Up 37 minutes       0.0.0.0:48081->48081/tcp, 48082/tcp                                                                edgex-core-metadata
2e342a3aae81        nexus3.edgexfoundry.org:10004/docker-support-notifications-go:master   "/support-notificati…"   37 minutes ago      Up 37 minutes       0.0.0.0:48060->48060/tcp                                                                           edgex-support-notifications
3cfc628e013a        nexus3.edgexfoundry.org:10004/docker-sys-mgmt-agent-go:master          "/sys-mgmt-agent -cp…"   37 minutes ago      Up 37 minutes       0.0.0.0:48090->48090/tcp                                                                           edgex-sys-mgmt-agent
f69e9c4d6cc8        nexus3.edgexfoundry.org:10004/docker-core-data-go:master               "/core-data -cp=cons…"   37 minutes ago      Up 37 minutes       0.0.0.0:5563->5563/tcp, 0.0.0.0:48080->48080/tcp                                                   edgex-core-data
9e5091928409        nexus3.edgexfoundry.org:10004/docker-support-logging-go:master         "/support-logging -c…"   37 minutes ago      Up 37 minutes       0.0.0.0:48061->48061/tcp                                                                           edgex-support-logging
74e8668f892c        redis:5.0.7-alpine                                                     "docker-entrypoint.s…"   37 minutes ago      Up 37 minutes       0.0.0.0:6379->6379/tcp                                                                             edgex-redis
9b341bb217f9        consul:1.3.1                                                           "docker-entrypoint.s…"   37 minutes ago      Up 37 minutes       0.0.0.0:8400->8400/tcp, 8300-8302/tcp, 8301-8302/udp, 8600/tcp, 8600/udp, 0.0.0.0:8500->8500/tcp   edgex-core-consul
ed7ad5ae08b2        nexus3.edgexfoundry.org:10004/docker-edgex-volume:master               "/bin/sh -c '/usr/bi…"   37 minutes ago      Up 37 minutes                                                                                                          edgex-files

创建流

该步骤是创建一个可以从 EdgeX 消息总线进行数据消费的流。有两种方法来支持管理流,你可以选择喜欢的方式。

方式1: 使用 Rest API

480759081
$kuiper_server
curl -X POST \
  http://$kuiper_server:48075/streams \
  -H 'Content-Type: application/json' \
  -d '{
  "sql": "create stream demo() WITH (FORMAT=\"JSON\", TYPE=\"edgex\")"
}'

关于其它 API,请参考该文档.

方式2: 使用 Kuiper 命令行

使用以下命令,进入运行中的 Kuiper docker 实例。

docker exec -it kuiper /bin/sh
demo
bin/cli create stream demo'() WITH (FORMAT="JSON", TYPE="edgex")'

其它命令行,请参考该文档。


CREATE STREAMetc/sources/edgex.yamlcat etc/sources/edgex.yaml
#Global Edgex configurations
default:
  protocol: tcp
  server: localhost
  port: 5566
  topic: events
  serviceServer: http://localhost:48080
.....

更多关于配置文件的信息,请参考该文档.

创建规则

让我们创建一条规则,将分析结果发送至 MQTT 服务器,关于 MQTT 目标的相关配置,请参考这个链接。与创建流的过程类似,你可以选择使用 REST 或者命令行来管理规则。

events
broker.emqx.ioresult

选项1: 使用 Rest API

curl -X POST \
  http://$kuiper_server:9081/rules \
  -H 'Content-Type: application/json' \
  -d '{
  "id": "rule1",
  "sql": "SELECT * FROM demo",
  "actions": [
    {
      "mqtt": {
        "server": "tcp://broker.emqx.io:1883",
        "topic": "result",
        "clientId": "demo_001"
      }
    },
    {
      "log":{}
    }
  ]
}

选项2: 使用 Kuiper 命令行

rule.txt
{
  "sql": "SELECT * from demo",
  "actions": [
    {
      "mqtt": {
        "server": "tcp://broker.emqx.io:1883",
        "topic": "result",
        "clientId": "demo_001"
      }
    },
    {
      "log":{}
    }
  ]
}

在运行的容器中,执行以下命令。

# bin/cli create rule rule1 -f rule.txt
Connecting to 127.0.0.1:20498...
Creating a new rule from file rule.txt.
Rule rule1 was created successfully, please use 'cli getstatus rule rule1' command to get rule status.

log/stream.log
time="2020-04-17T06:32:24Z" level=info msg="Serving kuiper (version - 0.3.1-4-g9e63fe1) on port 20498, and restful api on port 9081. \n" file="server.go:101"
time="2020-04-17T06:32:24Z" level=info msg="The connection to edgex messagebus is established successfully." file="edgex_source.go:95" rule=rule1
time="2020-04-17T06:32:24Z" level=info msg="Successfully subscribed to edgex messagebus topic events." file="edgex_source.go:104" rule=rule1
time="2020-04-17T06:32:24Z" level=info msg="The connection to server tcp://broker.emqx.io:1883 was established successfully" file="mqtt_sink.go:161" rule=rule1
time="2020-04-17T06:32:25Z" level=info msg="Get 24 of value descriptors from service." file="edgex_source.go:223"
time="2020-04-17T06:32:25Z" level=info msg="sink result for rule rule1: [{\"int32\":-697766590}]" file="log_sink.go:16" rule=rule1
time="2020-04-17T06:32:25Z" level=info msg="sink result for rule rule1: [{\"int8\":-47}]" file="log_sink.go:16" rule=rule1
time="2020-04-17T06:32:25Z" level=info msg="sink result for rule rule1: [{\"int16\":-318}]" file="log_sink.go:16" rule=rule1
time="2020-04-17T06:32:25Z" level=info msg="sink result for rule rule1: [{\"int64\":-8680421421398846880}]" file="log_sink.go:16" rule=rule1
time="2020-04-17T06:32:31Z" level=info msg="sink result for rule rule1: [{\"bool\":true}]" file="log_sink.go:16" rule=rule1

监控分析结果

tcp://broker.emqx.io:1883mosquitto_sub
# mosquitto_sub -h broker.emqx.io -t result
[{"bool":true}]
[{"bool":false}]
[{"bool":true}]
[{"randomvalue_int16":3287}]
[{"float64":8.41326e+306}]
[{"randomvalue_int32":-1872949486}]
[{"randomvalue_int8":-53}]
[{"int64":-1829499332806053678}]
[{"int32":-1560624981}]
[{"int16":8991}]
[{"int8":-4}]
[{"bool":true}]
[{"bool":false}]
[{"float64":1.737076e+306}]
...

你也可以敲入以下的命令来查看规则执行的状态。相关的查看规则状态的 REST API 也有提供,请检查相关文档.

# bin/cli getstatus rule rule1
Connecting to 127.0.0.1:20498...
{
  "source_demo_0_records_in_total": 29,
  "source_demo_0_records_out_total": 29,
  "source_demo_0_exceptions_total": 0,
  "source_demo_0_process_latency_ms": 0,
  "source_demo_0_buffer_length": 0,
  "source_demo_0_last_invocation": "2020-04-17T10:30:09.294337",
  "op_preprocessor_demo_0_records_in_total": 29,
  "op_preprocessor_demo_0_records_out_total": 29,
  "op_preprocessor_demo_0_exceptions_total": 0,
  "op_preprocessor_demo_0_process_latency_ms": 0,
  "op_preprocessor_demo_0_buffer_length": 0,
  "op_preprocessor_demo_0_last_invocation": "2020-04-17T10:30:09.294355",
  "op_filter_0_records_in_total": 29,
  "op_filter_0_records_out_total": 21,
  "op_filter_0_exceptions_total": 0,
  "op_filter_0_process_latency_ms": 0,
  "op_filter_0_buffer_length": 0,
  "op_filter_0_last_invocation": "2020-04-17T10:30:09.294362",
  "op_project_0_records_in_total": 21,
  "op_project_0_records_out_total": 21,
  "op_project_0_exceptions_total": 0,
  "op_project_0_process_latency_ms": 0,
  "op_project_0_buffer_length": 0,
  "op_project_0_last_invocation": "2020-04-17T10:30:09.294382",
  "sink_sink_mqtt_0_records_in_total": 21,
  "sink_sink_mqtt_0_records_out_total": 21,
  "sink_sink_mqtt_0_exceptions_total": 0,
  "sink_sink_mqtt_0_process_latency_ms": 0,
  "sink_sink_mqtt_0_buffer_length": 1,
  "sink_sink_mqtt_0_last_invocation": "2020-04-17T10:30:09.294423"

总结

在本教程中,我们介绍了使用 EdgeX Kuiper 规则引擎的非常简单的例子,如果使用过程中发现任何问题,请到 EdgeX,或者 Kuiper Github 中报问题。

更多练习

目前的规则没有过滤发送给 Kuiper 的任何数据,那么如何过滤数据呢?请使用删除规则,然后试着更改一下 SQL 语句,完成更改后,重新部署规则。这时候如果监听 MQTT 服务的结果主题,检查一下相关的规则是否起作用?
