golang源码分析：dtm分布式事务（1）

        https://github.com/dtm-labs/dtm和seata类似是一个分布式事务管理器，不过是golang实现的，它有丰富的例子可以供我们学习https://github.com/dtm-labs/dtm-examples。常见的事务模式，支持对比如下：

1，TCC事务：dtm和Seata都支持了TCC事务。

2，XA事务：dtm和Seata都支持XA事务。dtm采用的是回调函数形式的接口，而Seata采用的是Java特有的注解形式接口，本质都是回调。

3，AT事务：AT事务是Seata独有的事务模式（类似XA，性能更高，但有脏回滚)

4，SAGA事务：Seata的Saga实现采用了状态机，优点是可以做到灵活配置，缺点是上手难度非常高。dtm支持并发的Saga。

5，二阶段消息：dtm支持了二阶段消息事务模式，该模式受到RocketMQ的事务消息启发。提供了比本地消息表和事务消息更简单的架构，更易用的接口：PrepareAndSubmit，适用于无需回滚的数据一致性场景

        总的来说，对于golang用户学习分布式事务是一个非常不错的选择。在学习本篇之前，建议先学习下mysql的XAgolang源码分析：golang使用mysql XA事务，然后会发现大家的最终方案都是相似的。也可以对比seata的golang客户端来学习golang源码分析：seata-go （1）at模式，golang源码分析：seata-go （2）tcc模式。

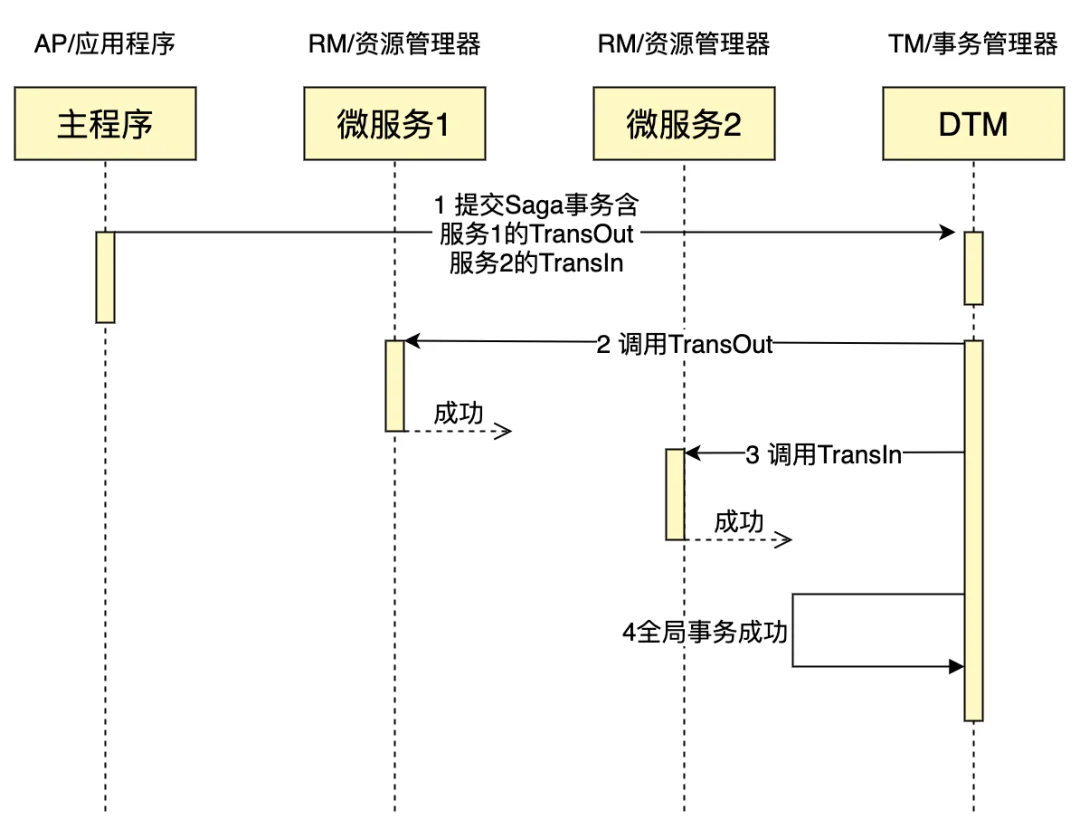

      dtm在传输协议上支持三种，grpc，http和http-json，它的通信链路大概可以分为三条：

1，对外提供服务的链路。

2，ap（应用程序）调用dtm（事务管理器）上报数据的链路

3，dtm回调应用程序的链路。

        下面，我们基于dtm-examples的qs例子源码对dtm进行简单介绍：

1，对外提供的服务接口是基于gin http服务实现的，它的端口是8081

go busi.RunHTTP(app)

const (
  // BusiAPI busi api prefix
  BusiAPI = "/api/busi"
  // BusiPort busi server port
  BusiPort = 8081
  // BusiGrpcPort busi server port
  BusiGrpcPort = 58081
)

提供了转入，转出等多个接口。

func BaseAddRoute(app *gin.Engine) {
  app.POST(BusiAPI+"/workflow/resume"
  app.POST(BusiAPI+"/TransIn",

2，上报数据链路，qs例子，实现了saga模式

saga := dtmcli.NewSaga(dtmServer, shortuuid.New()).

首先通过uuid产生了全局事务id，然后组装回调需要的接口和参数，然后上报给dtm服务器，地址是http://localhost:36789/api/dtmsvr/submit ，也可以是grpc模式

 const dtmServer = "http://localhost:36789/api/dtmsvr"

对应实现在github.com/dtm-labs/client@v1.15.1/dtmcli/trans_saga.go

func NewSaga(server string, gid string) *Saga {
        &Saga{TransBase: *dtmimp.NewTransBase(gid, "saga", server, ""), orders: map[int][]int{}}

github.com/dtm-labs/client@v1.15.1/dtmcli/dtmimp/trans_base.go

func NewTransBase(gid string, transType string, dtm string, branchID string) *TransBase {
    return &TransBase{
    Gid:          gid,
    TransType:    transType,
    BranchIDGen:  BranchIDGen{BranchID: branchID},
    Dtm:          dtm,
    TransOptions: TransOptions{PassthroughHeaders: PassthroughHeaders},
    Context:      context.Background(),
  }

然后调用Add方法添加需要上报的信息

func (s *Saga) Add(action string, compensate string, postData interface{}) *Saga {
  s.Steps = append(s.Steps, map[string]string{"action": action, "compensate": compensate})
  s.Payloads = append(s.Payloads, dtmimp.MustMarshalString(postData))

最后通过submit提交给dtm

func (s *Saga) Submit() error {
      s.BuildCustomOptions()
return dtmimp.TransCallDtm(&s.TransBase, "submit")

// TransCallDtm is the short call for TransCallDtmExt
func TransCallDtm(tb *TransBase, operation string) error {
  _, err := TransCallDtmExt(tb, tb, operation)

func TransCallDtmExt(tb *TransBase, body interface{}, operation string) (*resty.Response, error) {
   resp, err := RestyClient.R().
    SetBody(body).Post(fmt.Sprintf("%s/%s", tb.Dtm, operation))

3，dtm回调业务的接口也是基于gin的http服务实现的，端口是8082

// busi address
const qsBusiAPI = "/api/busi_start"
const qsBusiPort = 8082
var qsBusi = fmt.Sprintf("http://localhost:%d%s", qsBusiPort, qsBusiAPI)

        在启动1中的gin http服务后，会调用dtm的上报接口，将回调信息上报给dtm，其中就包括dtm 回调用的接口，详细信息如下：

[
        {
            "action": "http://localhost:8082/api/busi_start/TransOut",
            "compensate": "http://localhost:8082/api/busi_start/TransOutCompensate"
        },
        {
            "action": "http://localhost:8082/api/busi_start/TransIn",
            "compensate": "http://localhost:8082/api/busi_start/TransInCompensate"
        }
],
    "payloads": ["{mount\:30}","{mount\:30}"
    ]

对于qs实例来说，就包括两个分支事务的正向操作接口和对应的补偿接口，具体实现在qsAddRoute方法里面：

func qsAddRoute(app *gin.Engine) {
  app.POST(qsBusiAPI+"/TransIn",

4，在dtm的server端提供了相应的submit接口，接收客户端也就是应用程序提交的submit请求，对应路由注册在dtmsvr/api_http.go

func addRoute(engine *gin.Engine) {
    engine.GET("/api/dtmsvr/newGid", dtmutil.WrapHandler2(newGid))
    engine.POST("/api/dtmsvr/prepare", dtmutil.WrapHandler2(prepare))
    engine.POST("/api/dtmsvr/submit", dtmutil.WrapHandler2(submit))
    engine.POST("/api/dtmsvr/abort", dtmutil.WrapHandler2(abort))
    engine.POST("/api/dtmsvr/registerBranch", dtmutil.WrapHandler2(registerBranch))

        实现位于dtmsvr/api.go

func svcSubmit(t *TransGlobal) interface{}

func submit(c *gin.Context) interface{} {
  return svcSubmit(TransFromContext(c))

下面我们启动官方的例子跑一下：

首先启动dtm 服务端

cd  dtm
go run main.go

然后运行例子中的qs例子

cd dtm-examples
go run main.go qs

         可以看到下面的日志

{"level":"info","ts":"2022-12-18T18:29:24.433+0800","caller":"dtmutil/db.go:103","msg":"connecting 'mysql' 'en.dtm.pub' 'dtm' '3306' ''"}
{"level":"debug","ts":"2022-12-18T18:29:24.713+0800","caller":"dtmutil/db.go:79","msg":"installing db plugin: tracePlugin"}
{"level":"debug","ts":"2022-12-18T18:29:24.748+0800","caller":"dtmutil/db.go:68","msg":"used: 34 ms affected: -1 sql is: xa recover"}
{"level":"debug","ts":"2022-12-18T18:29:24.748+0800","caller":"busi/base_grpc.go:57","msg":"dtm client inited"}
{"level":"info","ts":"2022-12-18T18:29:24.748+0800","caller":"busi/base_http.go:54","msg":"examples starting"}
{"level":"debug","ts":"2022-12-18T18:29:24.748+0800","caller":"busi/base_http.go:69","msg":"initing BarrierSetup"}
{"level":"debug","ts":"2022-12-18T18:29:24.949+0800","caller":"busi/base_http.go:77","msg":"Starting busi at: 8081"}
2022/12/18 18:29:25 quick start examples listening at 8082
{"level":"debug","ts":"2022-12-18T18:29:25.252+0800","caller":"dtmimp/vars.go:46","msg":"requesting: POST http://localhost:36789/api/dtmsvr/submit {\"gid\":\"QHEbkW3zWVwFEpWuAdRwQK\",\"trans_type\":\"saga\",\"concurrent\":false,\"steps\":[{\"action\":\"http://localhost:8082/api/busi_start/TransOut\",\"compensate\":\"http://localhost:8082/api/busi_start/TransOutCompensate\"},{\"action\":\"http://localhost:8082/api/busi_start/TransIn\",\"compensate\":\"http://localhost:8082/api/busi_start/TransInCompensate\"}],\"payloads\":[\"{\\\"amount\\\":30}\",\"{\\\"amount\\\":30}\"],\"protocol\":\"\"} resolved: http://localhost:36789/api/dtmsvr/submit"}
{"level":"debug","ts":"2022-12-18T18:29:25.294+0800","caller":"dtmimp/vars.go:54","msg":"requested: 200 POST http://localhost:36789/api/dtmsvr/submit {\"dtm_result\":\"SUCCESS\"}"}
2022/12/18 18:29:25 TransOut
2022/12/18 18:29:25 TransIn
2022/12/18 18:29:25 TransInCompensate
2022/12/18 18:29:25 TransOutCompensate

当然，我们也可以请求下，我们本地服务提供的http服务

% curl -iv -X POST http://127.0.0.1:8081/api/busi/TransIn -d '{"amount":30}'
Note: Unnecessary use of -X or --request, POST is already inferred.
*   Trying 127.0.0.1:8081...
* Connected to 127.0.0.1 (127.0.0.1) port 8081 (#0)
> POST api/busi/TransIn HTTP/1.1
> Host: 127.0.0.1:8081
> User-Agent: curl/7.79.1
> Accept: */*
> Content-Length: 13
> Content-Type: application/x-www-form-urlencoded
>
* Mark bundle as not supporting multiuse
< HTTP/1.1 200 OK
HTTP/1.1 200 OK
< Content-Type: application/json; charset=utf-8
Content-Type: application/json; charset=utf-8
< Date: Sun, 18 Dec 2022 10:38:13 GMT
Date: Sun, 18 Dec 2022 10:38:13 GMT
< Content-Length: 4
Content-Length: 4


<
* Connection #0 to host 127.0.0.1 left intact
nul
