准备工作
Go(基于Gin)与 Net Core 准备一最简单的接口,为避免影响,不返回任何数据。
Go :test.go
package test
import (
"github.com/gin-gonic/gin"
)
func Index(c *gin.Context) {
c.Done()
}
Go:router.go
func InitRouter() *gin.Engine {
router := gin.New()
router.GET("/favicon.ico", func(c *gin.Context) {
})
testRouter := router.Group("test")
{
testRouter.GET("index", test.Index)
}
return router
}
Go:main.go
package main
import (
"findo.api/conf"
"findo.api/router"
"findo.api/services/redis"
)
func main() {
router := router.InitRouter()
router.Run()
}

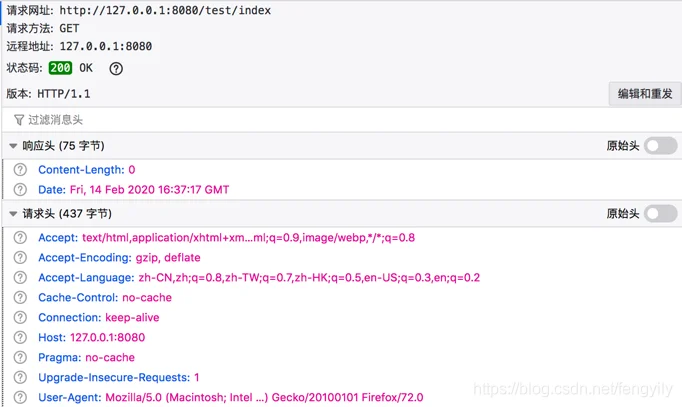

测试Go应用
Net Core
MainController.cs,/main/index不做任何处理
using System;
using System.Collections.Generic;
using System.Text;
using Microsoft.AspNetCore.Authorization;
using Microsoft.AspNetCore.Http;
using Microsoft.AspNetCore.Mvc;
using Microsoft.Extensions.Options;
namespace Findo.Controllers {
[Route ("Main")]
public class MainController {
private IHttpContextAccessor _accessor;
public MainController (IHttpContextAccessor accessor) {
_accessor = accessor;
}
[AllowAnonymous]
[HttpPost]
[HttpGet]
[Route ("index")]
public void index () {
}
}
}

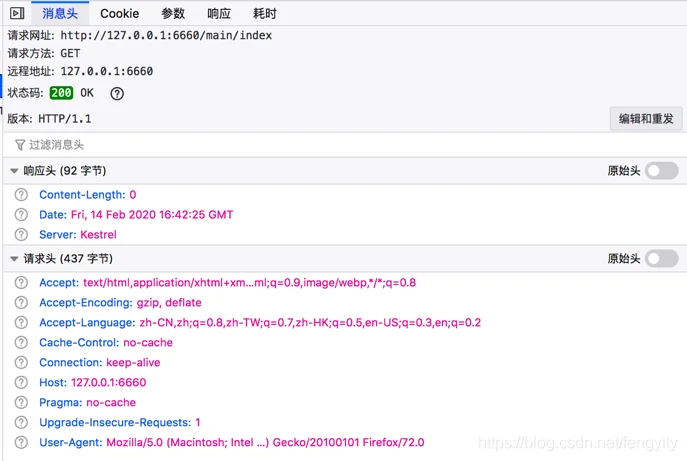

测试:
布属情况查看:
[root@k8s-0001 wrk]# kubectl get pods -n develop -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
findo-api-84bd4f9bdc-97qpj 1/1 Running 1 116m 192.168.1.117 k8s-0004 <none> <none>
findo-api-84bd4f9bdc-x2llt 1/1 Running 1 116m 192.168.1.85 k8s-0003 <none> <none>
go-findo-api-8598ff7d86-2c9mw 1/1 Running 2 137m 192.168.1.117 k8s-0004 <none> <none>
go-findo-api-8598ff7d86-77m95 1/1 Running 1 146m 192.168.1.85 k8s-0003 <none> <none>
go-findo-api-8598ff7d86-hswhx 1/1 Running 0 137m 192.168.1.100 k8s-0002 <none> <none>
测试比较:
1、镜像大小比较
fengyideMacBook-Pro:Downloads fengyi$ docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
fengyily/netcore.findo.api v2 70d6599dcdb0 2 hours ago 264MB
fengyily/go.findo.api auto d9cb3d8ac5ac 2 hours ago 21.8MB
由于go应用是基于 alpine制作,大小只有 21M,.net core应用 264M
2、压力测试:使用wrk压测。
先安装wrk
git clone https://github.com/wg/wrk.git
cd wrk
make
第一次测试:内网、1CPU 1GB内存
# 以下为 GO 应用的测试结果
内网测试,云服务器,入门型,1 CPU 1 GB内存
Running 1m test @ http://192.168.1.100:8080/test/index
12 threads and 1000 connections
Thread Stats Avg Stdev Max +/- Stdev
Latency 24.11ms 5.04ms 88.87ms 82.68%
Req/Sec 3.46k 289.38 4.22k 72.51%
2480092 requests in 1.00m, 177.39MB read
Requests/sec: 41307.53
Transfer/sec: 2.95MB
#以下为 .net Core应用的测试结果
[root@k8s-0001 wrk]# ./wrk -t 12 -c 1000 -d 60s http://192.168.1.85:6660/main/index
Running 1m test @ http://192.168.1.85:6660/main/index
12 threads and 1000 connections
Thread Stats Avg Stdev Max +/- Stdev
Latency 89.63ms 35.21ms 1.98s 81.24%
Req/Sec 0.93k 305.73 4.47k 72.13%
663779 requests in 1.00m, 58.24MB read
Socket errors: connect 0, read 0, write 0, timeout 71
Requests/sec: 11053.71
Transfer/sec: 0.97MB
GO:Requests/sec: 41307.53
.Net Core:Requests/sec: 11053.71
第二次测试:内网、2CPU 4GB内存(我采用的是云服务器,通过更改服务器规格实现)
# Go 内网测试,云服务器,入门型,2vCPUs | 4GB
[root@k8s-0001 wrk]# ./wrk -t 12 -c 1000 -d 60s http://192.168.1.117:8080/test/index
Running 1m test @ http://192.168.1.117:8080/test/index
12 threads and 1000 connections
Thread Stats Avg Stdev Max +/- Stdev
Latency 13.89ms 3.61ms 66.14ms 82.41%
Req/Sec 6.01k 240.48 11.71k 85.08%
4309218 requests in 1.00m, 308.22MB read
Requests/sec: 71716.09
Transfer/sec: 5.13MB
# Net Core 内网测试,云服务器,入门型,2vCPUs | 4GB
[root@k8s-0001 wrk]# ./wrk -t 12 -c 1000 -d 60s http://192.168.1.117:6660/main/index
Running 1m test @ http://192.168.1.117:6660/main/index
12 threads and 1000 connections
Thread Stats Avg Stdev Max +/- Stdev
Latency 51.47ms 64.88ms 1.46s 94.90%
Req/Sec 1.91k 446.08 4.37k 73.41%
1364717 requests in 1.00m, 119.74MB read
Requests/sec: 22707.53
Transfer/sec: 1.99MB
结果:
Go:Requests/sec: 71716.09
Net Core:Requests/sec: 22707.53
第三次测试:内网测试,云服务器,入门型,4 CPU 4GB 内存
# Go 内网测试,云服务器,入门型,4 CPU 4GB 内存
[root@k8s-0001 wrk]# ./wrk -t 12 -c 1000 -d 60s http://192.168.1.85:8080/test/index
Running 1m test @ http://192.168.1.85:8080/test/index
12 threads and 1000 connections
Thread Stats Avg Stdev Max +/- Stdev
Latency 30.23ms 52.63ms 420.53ms 86.08%
Req/Sec 8.96k 4.62k 30.90k 66.28%
5914190 requests in 1.00m, 423.02MB read
Requests/sec: 98407.30
Transfer/sec: 7.04MB
# Net Core 内网测试,云服务器,入门型,4 CPU 4GB 内存
[root@k8s-0001 wrk]# ./wrk -t 12 -c 1000 -d 60s http://192.168.1.85:6660/main/index
Running 1m test @ http://192.168.1.85:6660/main/index
12 threads and 1000 connections
Thread Stats Avg Stdev Max +/- Stdev
Latency 27.26ms 34.34ms 862.66ms 93.93%
Req/Sec 3.66k 645.86 7.12k 87.61%
2613362 requests in 1.00m, 229.29MB read
Requests/sec: 43530.40
Transfer/sec: 3.82MB
结果:
GO:Requests/sec: 98407.30
Net Core:Requests/sec: 43530.40
采用.Net core 3.1 重新制作镜像,Dockerfile
FROM mcr.microsoft.com/dotnet/core/aspnet:3.1 AS base
WORKDIR /app
EXPOSE 6660
FROM mcr.microsoft.com/dotnet/core/sdk:3.1 AS build
WORKDIR /src
# COPY ["Findo.csproj", "./"]
COPY . .
RUN dotnet restore "./Findo.csproj"
WORKDIR "/src/."
# RUN dotnet build "Findo.csproj" -c Release -o /app/build
FROM build AS publish
RUN dotnet publish "Findo.csproj" -c Release -o /app/publish
FROM base AS final
WORKDIR /app
COPY --from=publish /app/publish .
ADD dbinit.ini .
COPY appsettings.json.bak appsettings.json
ENTRYPOINT ["dotnet", "Findo.dll"]
fengyideMacBook-Pro:Findo fengyi$ docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
fengyily/netcore.findo.api v3 6cbac6da8f2e 23 minutes ago 217MB
fengyily/netcore.findo.api v2 70d6599dcdb0 2 days ago 264MB
fengyily/netcore.findo.api v1 4843c5a36ffe 2 days ago 264MB
mcr.microsoft.com/dotnet/core/sdk 3.1 0a4c7c13f9d6 2 weeks ago 689MB
mcr.microsoft.com/dotnet/core/sdk 2.1 be2b589b3992 2 weeks ago 1.74GB
mcr.microsoft.com/dotnet/core/aspnet 3.1 e28362768eed 2 weeks ago 207MB
mcr.microsoft.com/dotnet/core/aspnet 2.1 d27433e73f8b 2 weeks ago 253MB
debian latest a8797652cfd9 2 weeks ago 114MB
golang alpine 87eefb76f0a8 2 weeks ago 359MB
alpine latest e7d92cdc71fe 4 weeks ago 5.59MB
golang latest 6586e3d10e96 2 weeks ago 803MB
3.1的镜像比 2.1的镜像要少不少,打出来的镜像也小 50M左右,接下来测试对比下
#Net Core 3.1 内网测试,云服务器,入门型,1 CPU 1 GB内存
./wrk -t 12 -c 1000 -d 60s http://192.168.1.100:6660/main/index
Running 1m test @ http://192.168.1.100:6660/main/index
12 threads and 1000 connections
Thread Stats Avg Stdev Max +/- Stdev
Latency 64.81ms 35.99ms 813.41ms 92.09%
Req/Sec 1.33k 375.18 2.47k 71.48%
886475 requests in 1.00m, 77.78MB read
Socket errors: connect 0, read 0, write 0, timeout 996
Requests/sec: 14758.00
Transfer/sec: 1.29MB
总结:
对比 1CPU 1GB内存
GO:Requests/sec: 41307.53
Net Core 2.1: Requests/sec: 11053.71
Net Core 3.1: Requests/sec: 14758.00
Go性能确实优秀,几乎是.Net Core 的4倍,net core 3.1性能比2.1也有30%左右的提升,但还是远不如GO的性能。
待有时间,再把Java、PHP、Python加入到测试中比较。
