javacv处理rtsp流，抽帧，转hls流，播放视频

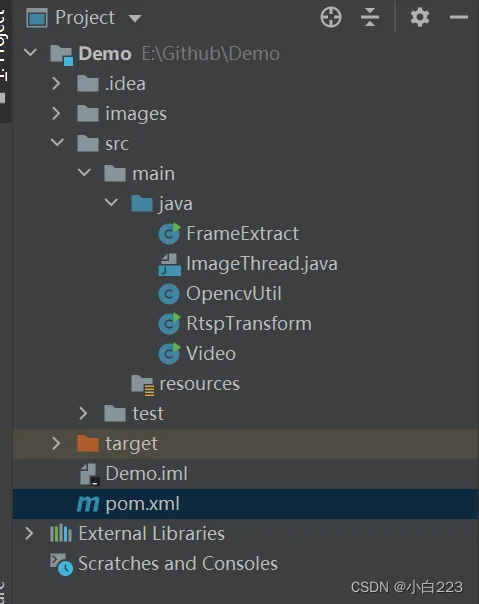

整体项目结构：

pom文件引入依赖：

<dependencies>
    <dependency>
        <groupId>org.bytedeco</groupId>
        <artifactId>javacv-platform</artifactId>
        <version>1.5.7</version>
    </dependency>
</dependencies>

1.播放视频 video类：

import org.bytedeco.javacv.CanvasFrame;
import org.bytedeco.javacv.FFmpegFrameGrabber;
import org.bytedeco.javacv.Frame;
import org.bytedeco.javacv.OpenCVFrameConverter;

import javax.swing.*;

public class Video {
    public static void main(String[] args) {
        FFmpegFrameGrabber grabber = null;
        try {
            String file = "rtsp://admin:Zjlab@2022@10.0.108.100:554/Streaming/Channels/101";
            grabber = FFmpegFrameGrabber.createDefault(file);
            grabber.setOption("rtsp_transport", "tcp"); // 使用tcp的方式，不然会丢包很严重
            grabber.setImageWidth(1280);
            grabber.setImageHeight(720);
            System.out.println("grabber start");
            grabber.start();

//1.播放视频

            CanvasFrame canvasFrame = new CanvasFrame("摄像机");
            canvasFrame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
            canvasFrame.setAlwaysOnTop(true);
            OpenCVFrameConverter.ToMat converter = new OpenCVFrameConverter.ToMat();
            while (true) {
                Frame frame = grabber.grabImage();
                canvasFrame.showImage(frame);
            }

        } catch (Exception e) {
            System.out.println(e);
        } finally {

        }
    }
}

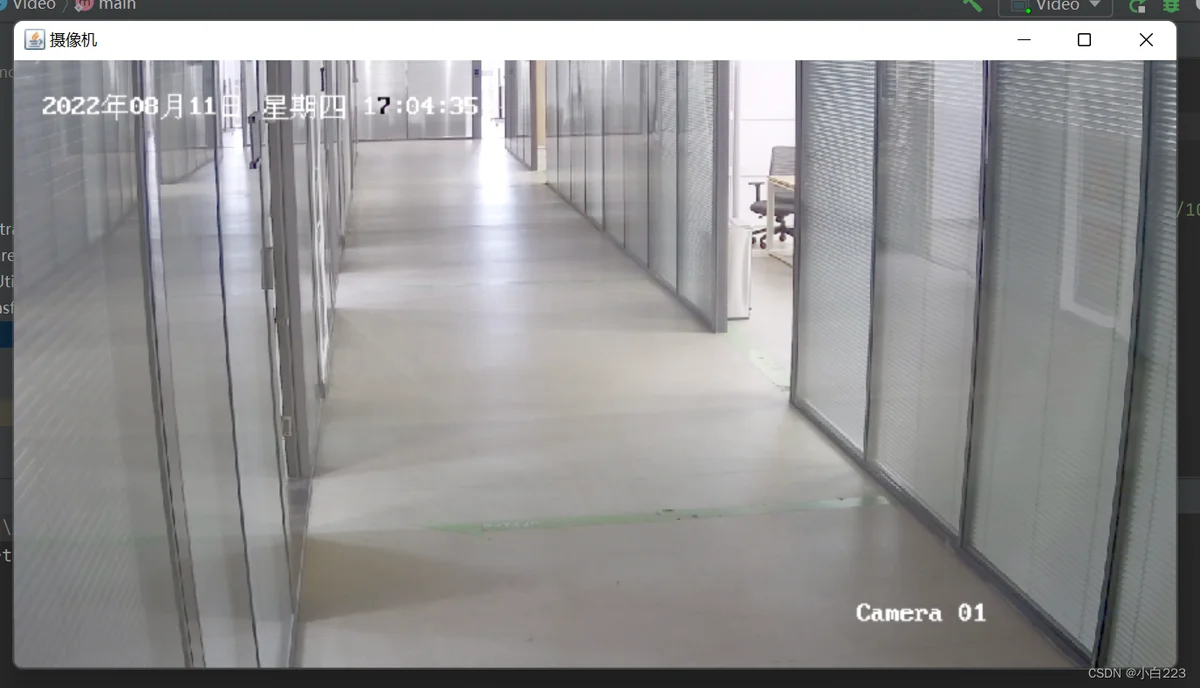

效果展示：



2.转换hls流

import org.bytedeco.ffmpeg.global.avcodec;
import org.bytedeco.ffmpeg.global.avutil;
import org.bytedeco.javacv.*;

import java.io.IOException;

public class RtspTransform {

    public static void main(String[] args) throws IOException {
        String rtspUrl="rtsp://admin:Zjlab@2022@10.0.108.100:554/Streaming/Channels/101";
        String hlsUrl="D:\\code\\temp\\hls\\baibing.m3u8";
        RtspTransform.convertMediaToM3u8ByHttp(rtspUrl,
               hlsUrl ,"5",20);
    }


    public static void convertMediaToM3u8ByHttp(String inputStream, String m3u8Url, String hls_time,int maxSize) throws IOException {

        avutil.av_log_set_level(avutil.AV_LOG_INFO);
        FFmpegLogCallback.set();

        FFmpegFrameGrabber grabber = new FFmpegFrameGrabber(inputStream);
        grabber.start();

        FFmpegFrameRecorder recorder = new FFmpegFrameRecorder(m3u8Url, grabber.getImageWidth(), grabber.getImageHeight(), grabber.getAudioChannels());

        recorder.setFormat("hls");
        recorder.setOption("hls_time", hls_time);
        recorder.setOption("hls_list_size", maxSize-1+"");
        recorder.setOption("hls_flags", "delete_segments");
        recorder.setOption("hls_delete_threshold", "1");
        recorder.setOption("hls_segment_type", "mpegts");


        // http属性
        recorder.setOption("method", "POST");

        recorder.setFrameRate(25);
        recorder.setGopSize(2 * 25);
        recorder.setVideoQuality(1.0);
        recorder.setVideoBitrate(10 * 1024);
        recorder.setVideoCodec(avcodec.AV_CODEC_ID_H264);
        recorder.setAudioCodec(avcodec.AV_CODEC_ID_AAC);
        recorder.start();

        Frame frame;
        while ((frame = grabber.grabImage()) != null) {
            try {
                recorder.record(frame);
            } catch (FrameRecorder.Exception e) {
                e.printStackTrace();
            }
        }
        recorder.setTimestamp(grabber.getTimestamp());
        recorder.close();
        grabber.close();
    }

}

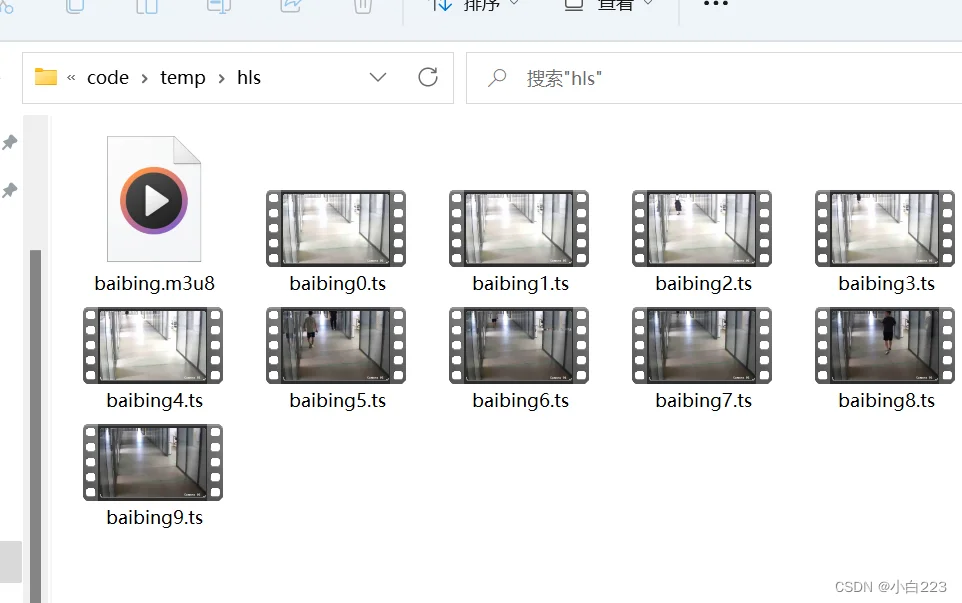

效果展示



3.抽帧

import org.bytedeco.javacv.FFmpegFrameGrabber;

import javax.imageio.ImageIO;
import java.io.File;

public class FrameExtract {
    public static void main(String[] args) {
        FFmpegFrameGrabber grabber = null;
        try {
           String file = "rtsp://admin:Zjlab@2022@10.0.108.100:554/Streaming/Channels/101";
            grabber = FFmpegFrameGrabber.createDefault(file);
            grabber.setOption("rtsp_transport", "tcp"); // 使用tcp的方式，不然会丢包很严重
            grabber.setImageWidth(1280);
            grabber.setImageHeight(720);
            System.out.println("grabber start");
            grabber.start();

//2.帧截图
            int i = 0;
            while (i < 1000) {
                File outPut = new File("images/" + i + ".jpeg");
                org.bytedeco.javacv.Frame frame = grabber.grabImage();
                if (frame != null) {
                    ImageIO.write(OpencvUtil.FrameToBufferedImage(frame), "jpeg", outPut);
                    System.out.println("图片已保存");
                    Thread.sleep(1000);
                    i++;
                }

            }
            grabber.stop();
            grabber.release();
        } catch (Exception e) {
            System.out.println(e);
        } finally {

        }
    }
}

效果：

工具类代码：

import org.bytedeco.javacv.Java2DFrameConverter;

import java.awt.image.BufferedImage;

public class OpencvUtil {

    public static BufferedImage FrameToBufferedImage(org.bytedeco.javacv.Frame frame) {
        Java2DFrameConverter converter = new Java2DFrameConverter();
        BufferedImage bufferedImage = converter.getBufferedImage(frame);
//      bufferedImage=rotateClockwise90(bufferedImage);
        return bufferedImage;
    }

    /**
     * 处理图片，将图片旋转90度。
     */
    public static BufferedImage rotateClockwise90(BufferedImage bi) {
        int width = bi.getWidth();
        int height = bi.getHeight();
        BufferedImage bufferedImage = new BufferedImage(height, width, bi.getType());
        for (int i = 0; i < width; i++)
            for (int j = 0; j < height; j++)
                bufferedImage.setRGB(j, i, bi.getRGB(i, j));
        return bufferedImage;
    }
}
