使用golang Lora开发一个图像界面GUI应用

使用golang Lora开发一个图像界面GUI应用

1.简介

zserge/lorca一个非常小的库,用于在Go中构建现代HTML5桌面应用程序. 它使用Chrome浏览器作为UI层. 与Electron不同,它不会将Chrome捆绑到应用程序包中,而是重用已安装的那个. Lorca建立了与浏览器窗口的连接,允许从UI调用Go代码并以无缝方式从Go操作UI.

1.1原理

Lorca使用Chrome DevTools协议来检测Chrome实例. 首先,Lorca尝试找到已安装的Chrome,启动绑定到临时端口的远程调试实例,并从stderr读取实际的WebSocket端点. 然后Lorca打开与WebSocket服务器的新客户端连接,并通过WebSocket发送Chrome DevTools协议方法的JSON消息来监控Chrome. JavaScript函数在Chrome中进行评估,而Go函数实际上在Go运行时运行,返回的值将发送到Chrome.

2.代码实例

这是一个简单的计数器demo

2.1Examples/counter代码文件结构功能说明

./icons./www./assets.gogen.gobuild_linux.shbuild_macos.shbuild_windows.batcounter.gifgen.goassets.gomain.go

main.go

//go:generate go run -tags generate gen.go

package main

import (
	"fmt"
	"log"
	"net"
	"net/http"
	"os"
	"os/signal"
	"sync"

	"github.com/zserge/lorca"
)

// Go types that are bound to the UI must be thread-safe, because each binding
// is executed in its own goroutine. In this simple case we may use atomic
// operations, but for more complex cases one should use proper synchronization.
type counter struct {
	sync.Mutex
	count int
}

func (c *counter) Add(n int) {
	c.Lock()
	defer c.Unlock()
	c.count = c.count + n
}

func (c *counter) Value() int {
	c.Lock()
	defer c.Unlock()
	return c.count
}

func main() {
	ui, err := lorca.New("", "", 480, 320)
	if err != nil {
		log.Fatal(err)
	}
	defer ui.Close()

	// A simple way to know when UI is ready (uses body.onload event in JS)
	ui.Bind("start", func() {
		log.Println("UI is ready")
	})

	// Create and bind Go object to the UI
	c := &counter{}
	ui.Bind("counterAdd", c.Add)
	ui.Bind("counterValue", c.Value)

	// Load HTML.
	// You may also use `data:text/html,<base64>` approach to load initial HTML,
	// e.g: ui.Load("data:text/html," + url.PathEscape(html))

	ln, err := net.Listen("tcp", "127.0.0.1:0")
	if err != nil {
		log.Fatal(err)
	}
	defer ln.Close()
	go http.Serve(ln, http.FileServer(FS))
	ui.Load(fmt.Sprintf("http://%s", ln.Addr()))

	// You may use console.log to debug your JS code, it will be printed via
	// log.Println(). Also exceptions are printed in a similar manner.
	ui.Eval(`
		console.log("Hello, world!");
		console.log('Multiple values:', [1, false, {"x":5}]);
	`)

	// Wait until the interrupt signal arrives or browser window is closed
	sigc := make(chan os.Signal)
	signal.Notify(sigc, os.Interrupt)
	select {
	case <-sigc:
	case <-ui.Done():
	}

	log.Println("exiting...")
}

go:generate go run -tags generate gen.gotype counter structsync.MutexAddValuelocar.Newui.Bindln, err := net.Listen("tcp", "127.0.0.1:0")go http.Serve(ln, http.FileServer(FS))ui.Evalsignal.Notify(sigc, os.Interrupt)

3.实例教程

接下来我们就使用vuejs+elementUI来创建一个简单的GUI程序

3.1创建vuejs-spa

Home.vue

ginbro/gui/ginbro-spa/src/views/Home.vue

<template>
    <el-form ref="form" :model="form" label-width="160px">
        <el-form-item label="address">
            <el-input v-model="form.mysqlAddr" placeholder="1270.0.0.1:3306"></el-input>
        </el-form-item>
        <el-form-item label="user">
            <el-input v-model="form.mysqlUser"></el-input>
        </el-form-item>
        <el-form-item label="password">
            <el-input v-model="form.mysqlPassword"></el-input>
        </el-form-item>
        <el-form-item label="database">
            <el-input v-model="form.mysqlDatabase" placeholder="the database to create RESTful app"></el-input>
        </el-form-item>
        <el-form-item label="database">
            <el-radio v-model="form.mysqlCharset" label="utf8">utf8</el-radio>
            <el-radio v-model="form.mysqlCharset" label="utf8mb4">utf8mb4</el-radio>
        </el-form-item>
        <el-form-item label="login table">
            <el-input v-model="form.authTable" placeholder="the table for login auth"></el-input>
        </el-form-item>
        <el-form-item label="password column">
            <el-input v-model="form.authPassword" placeholder="the column for password verification"></el-input>
        </el-form-item>
        <el-form-item label="app listen">
            <el-input v-model="form.appListen" placeholder="app listening address"></el-input>
        </el-form-item>
        <el-form-item label="package">
            <el-input v-model="form.outPackage" placeholder="the path relative to $GOPATH/src"></el-input>
        </el-form-item>

        <el-form-item>
            <el-button type="primary" @click="onSubmit">Generate</el-button>
            <el-button>Cancel</el-button>
        </el-form-item>
    </el-form>
</template>

<script>
    // @ is an alias to /src
    import HelloWorld from '@/components/HelloWorld.vue'
    export default {
        data() {
            return {
                form: {
                    mysqlAddr: '127.0.0.1:3306',
                    mysqlUser: 'root',
                    mysqlPassword: 'password',
                    mysqlDatabase: 'dbname',
                    mysqlCharset: 'utf8',
                    appListen: '127.0.0.1:5555',
                    authTable: 'users',
                    authPassword: 'password',
                    outPackage: 'ginbro-demo'
                },
                msg:""
            }
        },
        methods: {
            onSubmit() {
                mysqlGen(this.form).then(rsp => {
                    console.log(rsp)
                    this.$message({
                        message:rsp,
                        type: 'success'
                    });
                }).catch( err =>{
                    console.log(rsp)
                    this.$message({
                        message: err,
                        type: 'error'
                    });
                })

            }
        }
    }
</script>

mysqlGenui.Bind("mysqlGen", c.MysqlGen)

mysqlGen 发送json参数到go服务,go通过unmarshal 得到放回的struct 参数执行逻辑 通过通过promise得到go绑定方法的返回结果

function.go

package main

import (
	"github.com/libragen/ginbro/parser"
	"sync"
)

// Go types that are bound to the UI must be thread-safe, because each binding
// is executed in its own goroutine. In this simple case we may use atomic
// operations, but for more complex cases one should use proper synchronization.
type guiFunction struct {
	sync.Mutex
	result string
}

type args struct {
	MysqlUser     string `json:"mysqlUser"`
	MysqlPassword string `json:"mysqlPassword"`
	MysqlAddr     string `json:"mysqlAddr"`
	MysqlDatabase string `json:"mysqlDatabase"`
	MysqlCharset  string `json:"mysqlCharset"`
	OutPackage    string `json:"outPackage"`
	AppListen     string `json:"appListen"`
	AuthTable     string `json:"authTable"`
	AuthPassword  string `json:"authPassword"`
}

package main

import (
	"github.com/libragen/ginbro/parser"
	"sync"
)

// Go types that are bound to the UI must be thread-safe, because each binding
// is executed in its own goroutine. In this simple case we may use atomic
// operations, but for more complex cases one should use proper synchronization.
type guiFunction struct {
	sync.Mutex
	result string
}

type args struct {
	MysqlUser     string `json:"mysqlUser"`
	MysqlPassword string `json:"mysqlPassword"`
	MysqlAddr     string `json:"mysqlAddr"`
	MysqlDatabase string `json:"mysqlDatabase"`
	MysqlCharset  string `json:"mysqlCharset"`
	OutPackage    string `json:"outPackage"`
	AppListen     string `json:"appListen"`
	AuthTable     string `json:"authTable"`
	AuthPassword  string `json:"authPassword"`
}

func (c *guiFunction) MysqlGen(arg args) string {
	c.Lock()
	defer c.Unlock()
	ng, err := parser.NewGuiParseEngine(arg.MysqlUser, arg.MysqlPassword, arg.MysqlAddr, arg.MysqlDatabase, arg.MysqlCharset, arg.OutPackage, arg.AppListen, arg.AuthTable, arg.AuthPassword)
	if err != nil {
		return err.Error()
	}
	if err := ng.ParseDatabaseSchema(); err != nil {
		return err.Error()
	}
	ng.GenerateProjectCode()
	ng.GoFmt()
	return "your ginbro project is created at " + ng.OutPath
} {
	c.Lock()
	defer c.Unlock()
	ng, err := parser.NewGuiParseEngine(arg.MysqlUser, arg.MysqlPassword, arg.MysqlAddr, arg.MysqlDatabase, arg.MysqlCharset, arg.OutPackage, arg.AppListen, arg.AuthTable, arg.AuthPassword)
	if err != nil {
		return err.Error()
	}
	if err := ng.ParseDatabaseSchema(); err != nil {
		return err.Error()
	}
	ng.GenerateProjectCode()
	ng.GoFmt()
	return "your ginbro project is created at " + ng.OutPath
}

type args struct

func (c *guiFunction) MysqlGen(arg args) string

type guiFunction struct sync.Mutex

main.go

//go:generate go run -tags generate gen.go

package main

import (
	"fmt"
	"github.com/zserge/lorca"
	"log"
	"net"
	"net/http"
	"os"
	"os/signal"
)

func main() {
	ui, err := lorca.New("", "", 480, 600)
	if err != nil {
		log.Fatal(err)
	}
	defer ui.Close()

	// A simple way to know when UI is ready (uses body.onload event in JS)
	ui.Bind("start", func() {
		log.Println("UI is ready")
	})

	// Create and bind Go object to the UI
	c := &guiFunction{}
	ui.Bind("mysqlGen", c.MysqlGen)


	// Load HTML.
	// You may also use `data:text/html,<base64>` approach to load initial HTML,
	// e.g: ui.Load("data:text/html," + url.PathEscape(html))

	ln, err := net.Listen("tcp", "127.0.0.1:0")
	if err != nil {
		log.Fatal(err)
	}
	defer ln.Close()
	go http.Serve(ln, http.FileServer(FS))
	ui.Load(fmt.Sprintf("http://%s", ln.Addr()))

	// You may use console.log to debug your JS code, it will be printed via
	// log.Println(). Also exceptions are printed in a similar manner.
	ui.Eval(`

	`)

	// Wait until the interrupt signal arrives or browser window is closed
	sigc := make(chan os.Signal)
	signal.Notify(sigc, os.Interrupt)
	select {
	case <-sigc:
	case <-ui.Done():
	}

	log.Println("exiting...")
}

ui.Bind("mysqlGen", c.MysqlGen)

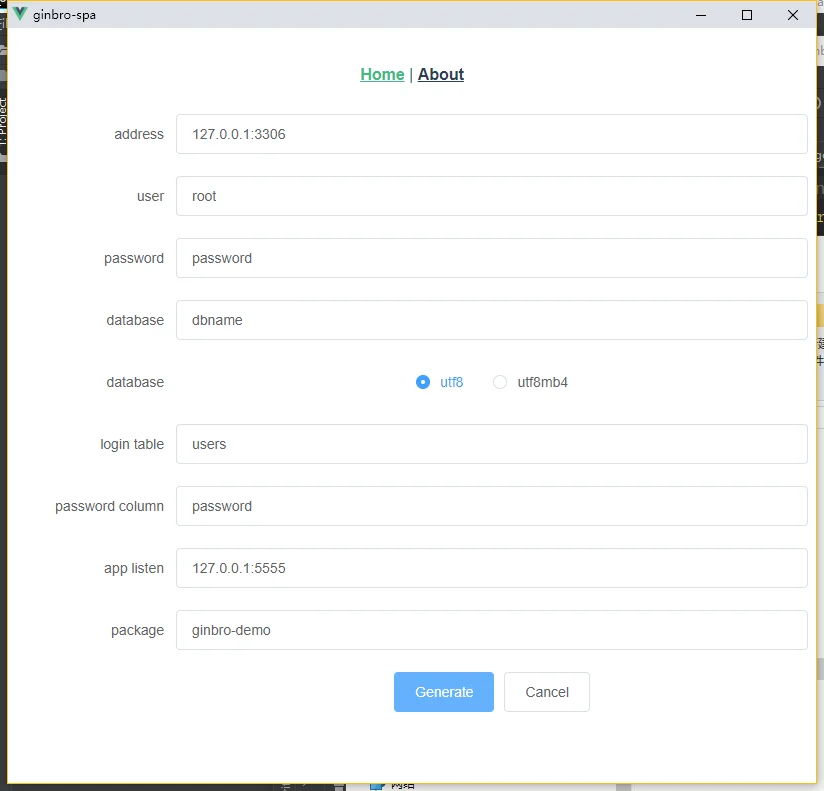

运行效果图

总结

一个非常小的库,用于在Go中构建现代HTML5桌面应用程序. 它使用Chrome浏览器作为UI层. 与Electron不同,它不会将Chrome捆绑到应用程序包中,而是重用已安装的那个. Lorca建立了与浏览器窗口的连接,允许从UI调用Go代码并以无缝方式从Go操作UI.
