最近看了下Go语言,利用Dynamsoft Barcode SDK做了一个简单的Golang条形码扫描。这里分享下如何使用SWIG来快速封装底层C/C++接口。

翻译:yushulx

下载安装

如何使用SWIG实现Cgo封装

运行cmd.exe,设置GOPATH:

创建一个package:

mkdir %GOPATH%\src\github.com\dynamsoftsamples\go-barcode-reader\dbr

从SDK目录中把DynamsoftBarcodeReaderx64.dll拷贝到%GOPATH%\src\github.com\dynamsoftsamples\go-barcode-reader\dbr\bin

接下来把头文件都拷贝到%GOPATH%\src\github.com\dynamsoftsamples\go-barcode-reader\dbr\include

创建dbr.c:

创建对应的dbr.i:

生成dbr.go和dbr_wrapper.c:

swig -go -cgo -intgosize 32 dbr.i

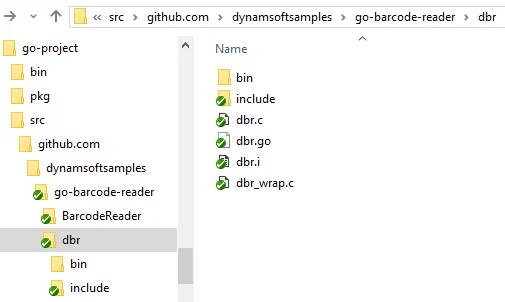

这个时候看到的目录结构:

打开dbr.go,添加头文件和库文件路径:

切换路径到根目录%GOPATH%,编译安装:

go install github.com\dynamsoftsamples\go-barcode-reader\dbr

如果在package目录中,可以直接使用:

go install

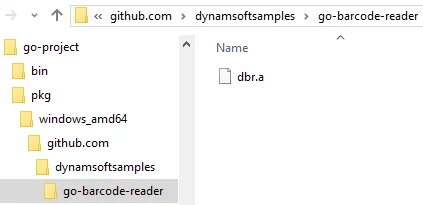

这个时候会在%GOPATH%\pkg\windows_amd64\github.com\dynamsoftsamples\go-barcode-reader中生成一个包dbr.a

Windows上实现Golang条码扫描应用

创建%GOPATH%\github.com\dynamsoftsamples\go-barcode-reader\BarcodeReader\BarcodeReader.go:

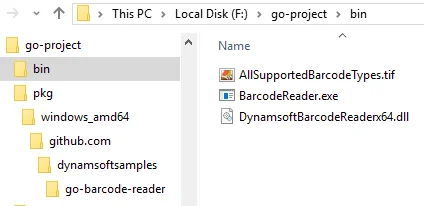

拷贝DynamsoftBarcodeReaderx64.dll%GOPATH%\bin

在根目录使用下面的命令行生成可执行文件:

go install github.com\dynamsoftsamples\go-barcode-reader\BarcodeReader

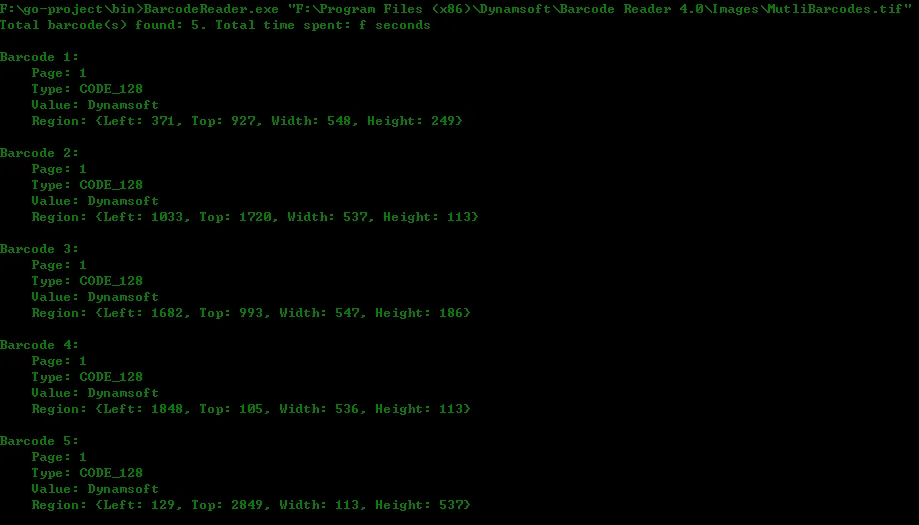

测试程序:

%GOPATH%bin\BarcodeReader.exe <barcode image>

参考

源码
