Go数据结构 标准库container/list 双向链表

Golang 标准库提供了一个双向链表container/list，看下源码是如何实现的.

Element结构体

type Element struct {
	// Next and previous pointers in the doubly-linked list of elements.
	// To simplify the implementation, internally a list l is implemented
	// as a ring, such that &l.root is both the next element of the last
	// list element (l.Back()) and the previous element of the first list
	// element (l.Front()).
	next, prev *Element

	// The list to which this element belongs.
	list *List

	// The value stored with this element.
	Value any
}

*List

List结构体

我们通过New()方法来创建一个新的链表:

// List represents a doubly linked list.
// The zero value for List is an empty list ready to use.
type List struct {
    root Element // sentinel list element, only &root, root.prev, and root.next are used
    len  int     // current list length excluding (this) sentinel element
}

// Init initializes or clears list l.
func (l *List) Init() *List {
    l.root.next = &l.root
    l.root.prev = &l.root
    l.len = 0
    return l
}

// New returns an initialized list.
func New() *List { return new(List).Init() }

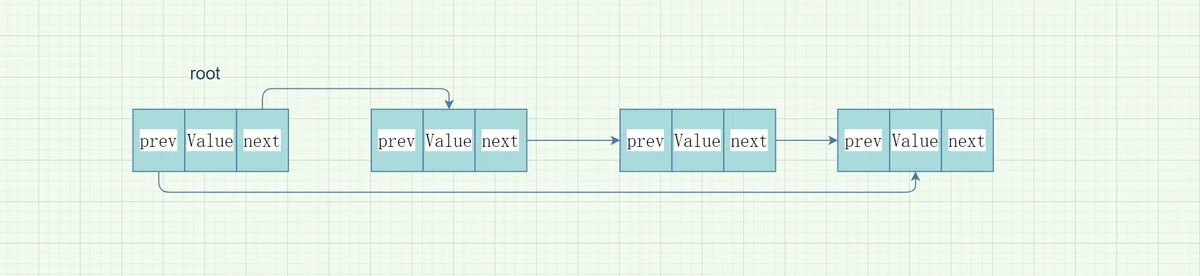

可以看到，New()调用了Init()方法，主要作用就是初始化一个链表的根元素. 实际上，这个list是一个环状结构，初始化后root作为根元素起到连接首尾的作用，但是不存储数据。

下面*List的两个方法Front()和Back()可以清楚的看出根元素的作用：

// Front returns the first element of list l or nil if the list is empty.
func (l *List) Front() *Element {
	if l.len == 0 {
		return nil
	}
	return l.root.next
}

// Back returns the last element of list l or nil if the list is empty.
func (l *List) Back() *Element {
	if l.len == 0 {
		return nil
	}
	return l.root.prev
}

使用示例

package main

import (
	"container/list"
	"fmt"
)

func main() {
	l := list.New()
	e4 := l.PushBack(4)
	e1 := l.PushFront(1)
	l.InsertBefore(3, e4)
	l.InsertAfter(2, e1)

	fmt.Println(l.Back().Value)

	// Iterate through list
	for e := l.Front(); e != nil; e = e.Next() {
		fmt.Println(e.Value)
	}
}

---

Last modified on 2021-09-11
