Monitoring Golang web apps using Gin and Prometheus

In depth application observability is a must-have feature for us; we put significant effort into monitoring all our customers’ Kubernetes deployments on the Pipeline platform, as well as the platform itself. The platform is made up of several components, some of which expose functionality through REST interfaces. To collect more information about how these components behave, we have enabled monitoring for them using Prometheus.

Find the right tools 🔗︎

metrics exporter

requests_totalrequest_duration_secondsresponse_size_bytesrequest_size_bytes

Customize the exporter 🔗︎

By default, the Prometheus exporter library takes into account all path parameters and provides counters. This may lead to the proliferation of metric instances (especially counters in our case). We wanted a bit more control over this, so we left the original behavior as it was and added a feature that makes it possible to configure the parameters taken into account during counting.

requests_totalhttp://[host]:[port]/api/v1/providers/ec2/services/eks/regions/us-east-1

1 # separate counter for every path parameter (provider, service, region)
2 http_requests_total{code="200",host="localhost:9091",method="GET",url="/api/v1/providers/aws/services/eks/regions/us-east-1"} 1
3 http_requests_total{code="200",host="localhost:9091",method="GET",url="/api/v1/providers/aws/services/compute/regions/us-east-1"} 1
4 ...
5

Note that there will be prometheus counter instances for every provider, every service and every region, as well as other path parameters.

With our modification, we can provide a list of “important” path parameters, so the number of counter instances can be reduced, making it possible to focus exclusively on relevant counters.

“Important” parameters can be configured in Prometheus when it’s created:

1   p := ginprometheus.NewPrometheus("http", []string{"provider"})

With the above modification, the example url will only generate metrics like:

1 # counters for separate providers only
2 http_requests_total{code="200",host="localhost:9091",method="GET",url="/api/v1/providers/aws/services/:service/regions/:region"} 1
3 http_requests_total{code="200",host="localhost:9091",method="GET",url="/api/v1/providers/azure/services/:service/regions/:region"} 1
4 ...
5
6

(Path parameters not explicitly passed to Prometheus are replaced with their name)

Please note, the information we get using our change can be retrieved with Prometheus queries. The change only reduces the number of metrics and metric values.

Alter the web app’ code by adding monitoring lines 🔗︎

Let’s add the necessary code to the application and enable monitoring. Provided we want to collect the number of a given endpoint, the following steps need to be taken:

Define the metric structs 🔗︎

 1	type Metric struct {
 2    	MetricCollector prometheus.Collector
 3    	ID              string
 4    	Name            string
 5    	Description     string
 6    	Type            string
 7    	Args            []string
 8    }
 9
10    var reqCnt = &Metric{
11    	ID:          "reqCnt",
12    	Name:        "requests_total",
13    	Description: "the number of HTTP requests processed",
14    	Type:        "counter_vec",
15    	Args:        []string{"status"}}

Create a Prometheus client 🔗︎

 1	type Prometheus struct {
 2    	reqCnt        *prometheus.CounterVec
 3    	router        *gin.Engine
 4    	listenAddress string
 5
 6    	Metric      *Metric
 7    	MetricsPath string
 8    }
 9
10    func newPrometheus(subsystem string) *Prometheus {
11    	p := &Prometheus{
12    		Metric:        reqCnt,
13    		MetricsPath:   "/metrics",
14    		listenAddress: ":9901",
15    	}
16
17    	p.registerMetrics(subsystem)
18    	p.router = gin.Default()
19
20    	return p
21    }
22
23    func (p *Prometheus) registerMetrics(subsystem string) {
24		metric := prometheus.NewCounterVec(
25			prometheus.CounterOpts{
26				Subsystem: subsystem,
27				Name:      reqCnt.Name,
28				Help:      reqCnt.Description,
29			},
30			reqCnt.Args,
31		)
32		if err := prometheus.Register(metric); err != nil {
33			log.Infof("%s could not be registered: ", reqCnt, err)
34		} else {
35			log.Infof("%s registered.", reqCnt)
36		}
37		p.reqCnt = metric
38
39		reqCnt.MetricCollector = metric
40    }

Register the handler that collects/exports the desired metric as middleware 🔗︎

 1	// use adds the middleware to a gin engine.
 2    func (p *Prometheus) use(e *gin.Engine) {
 3    	e.Use(p.handlerFunc())
 4    	p.setMetricsPath(e)
 5    }
 6
 7    func (p *Prometheus) handlerFunc() gin.HandlerFunc {
 8    	return func(c *gin.Context) {
 9    		if c.Request.URL.String() == p.MetricsPath {
10    			c.Next()
11    			return
12    		}
13    		c.Next()
14
15    		status := strconv.Itoa(c.Writer.Status())
16    		p.reqCnt.WithLabelValues(status).Inc()
17    	}
18    }
19
20    func (p *Prometheus) setMetricsPath(e *gin.Engine) {
21    	p.router.GET(p.MetricsPath, prometheusHandler())
22    	go p.router.Run(p.listenAddress)
23    }
24
25    func prometheusHandler() gin.HandlerFunc {
26    	h := promhttp.Handler()
27    	return func(c *gin.Context) {
28    		h.ServeHTTP(c.Writer, c.Request)
29    	}
30    }

Initialize Prometheus when the application starts 🔗︎

1		// initialize Prometheus metric
2    	p := newPrometheus("http")
3    	p.use(router)

Examples 🔗︎

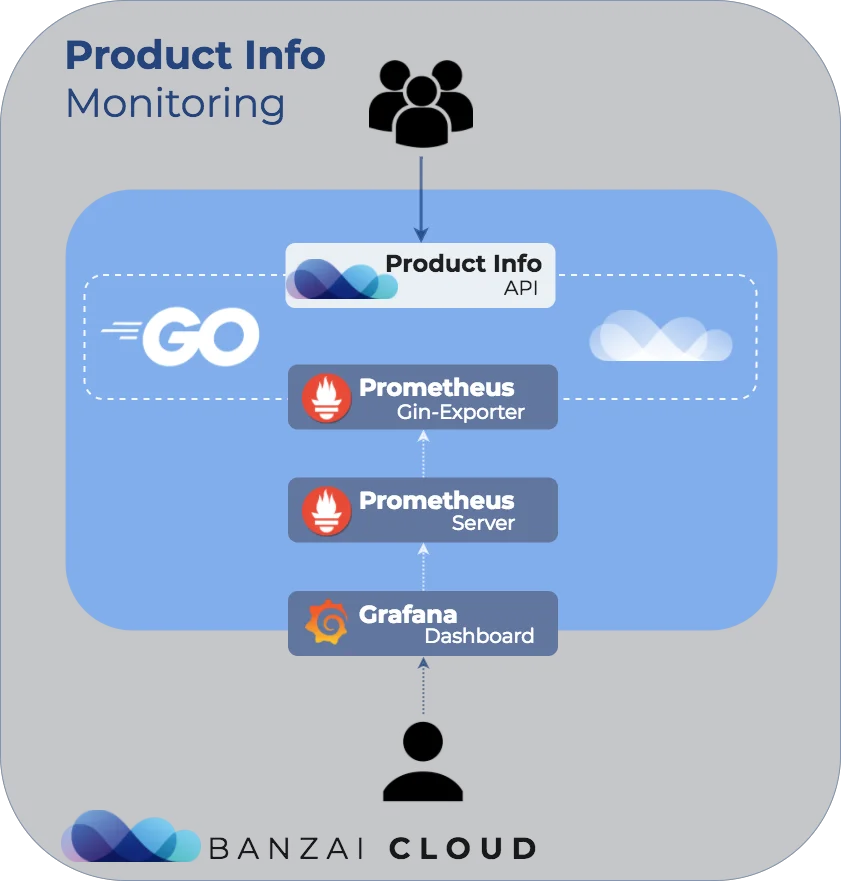

Our web applications in which monitoring through Gin is enabled have the following layout:

We have enabled monitoring for all of our web applications, and you can check our repositories for more details, here:

cloudinfo

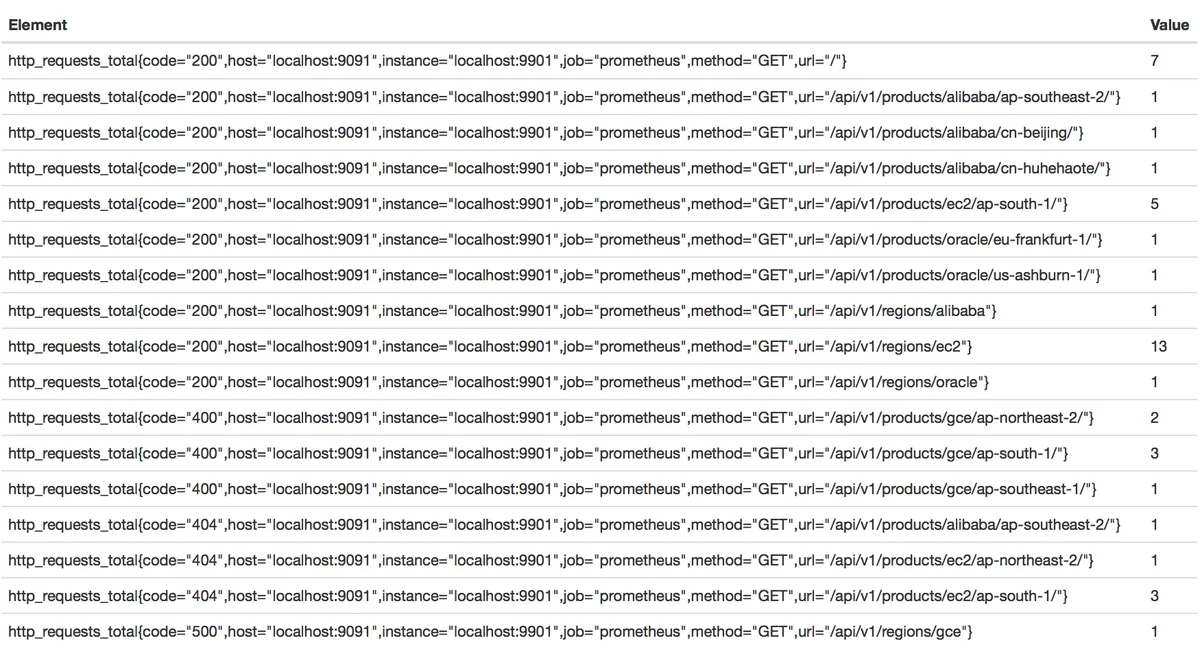

requests_total

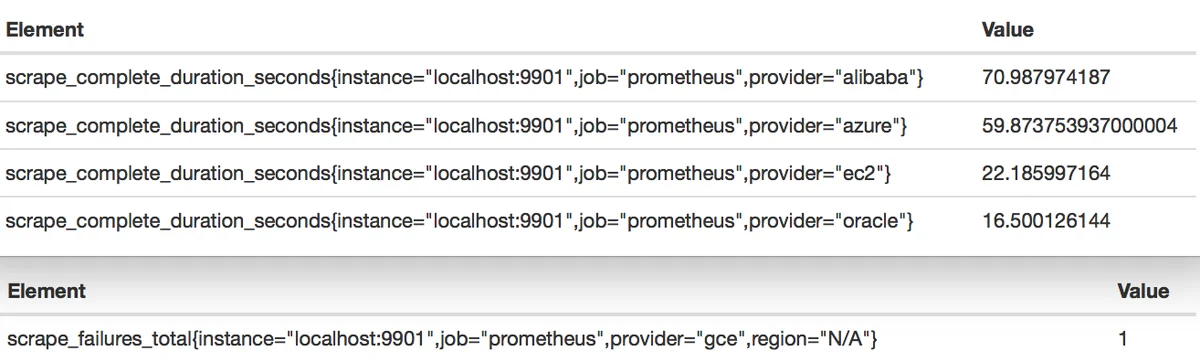

Duration of data collection, or an error when a provider is unavailable:

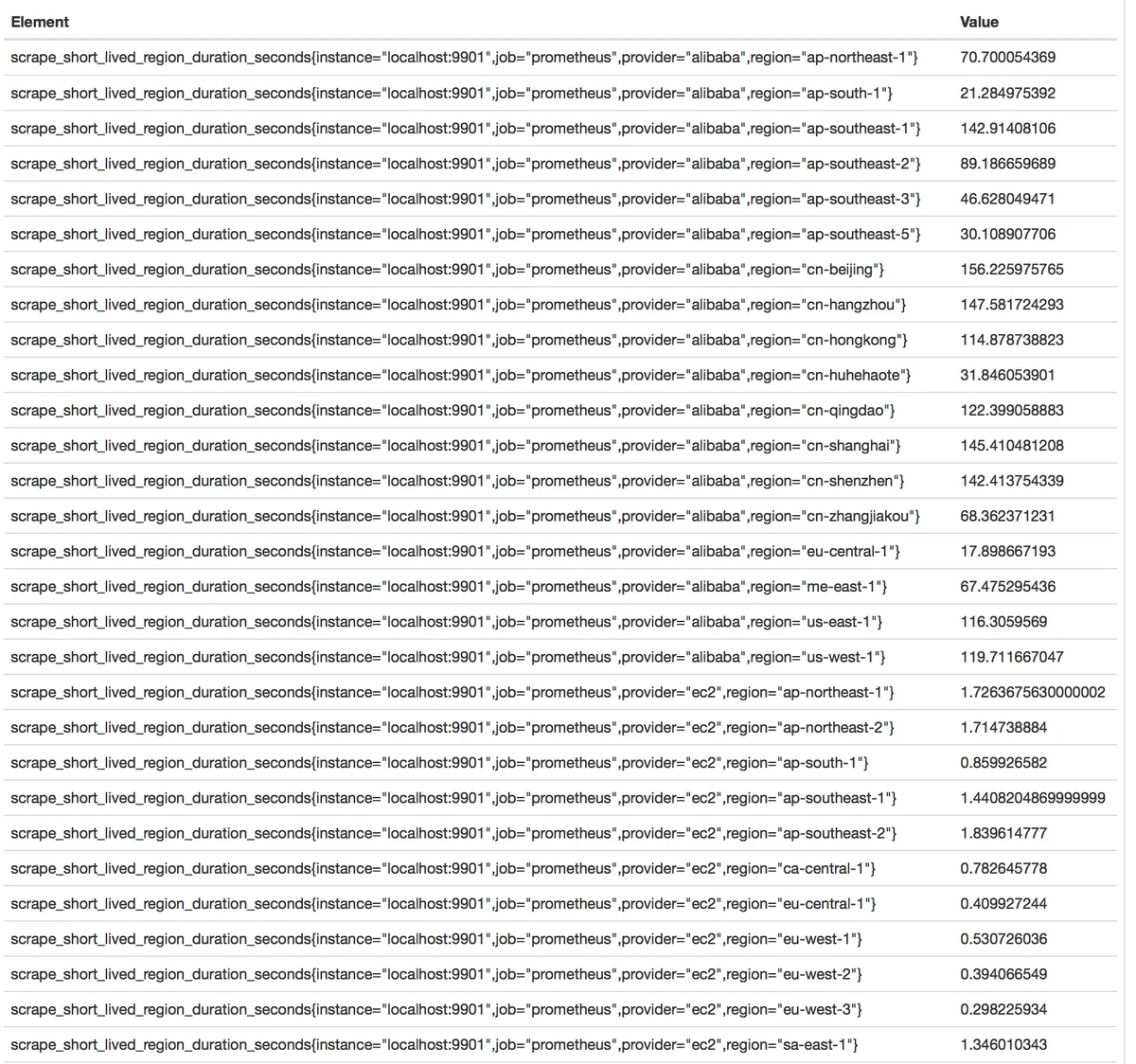

Duration of scraping rapidly changing prices:
