序言
我们通过一个系列文章跟大家详细展示一个 go-zero 微服务示例，整个系列分十篇文章，目录结构如下：
- 环境搭建
- 服务拆分
- 用户服务
- 产品服务
- 订单服务
- 支付服务
- RPC 服务 Auth 验证
- 服务监控
- 链路追踪
- 分布式事务（本文）
期望通过本系列带你在本机利用 Docker 环境利用 go-zero 快速开发一个商城系统，让你快速上手微服务。
首先，我们来看一下整体的服务拆分图：
DTMgolang 绝大多数的订单系统的事务都会跨服务，因此都有更新数据一致性的需求，都可以通过 DTM 大幅简化架构，形成一个优雅的解决方案。
而且 DTM 已经深度合作，原生的支持go-zero中的分布式事务，下面就来详细的讲解如何用 DTM 来帮助我们的订单系统解决一致性问题
go-zeroDTMorder rpcCreateOrderModelproduct rpcUpdatefunc (l *CreateLogic) Create(in *order.CreateRequest) (*order.CreateResponse, error) {
// 查询用户是否存在
_, err := l.svcCtx.UserRpc.UserInfo(l.ctx, &user.UserInfoRequest{
Id: in.Uid,
})
if err != nil {
return nil, err
}
// 查询产品是否存在
productRes, err := l.svcCtx.ProductRpc.Detail(l.ctx, &product.DetailRequest{
Id: in.Pid,
})
if err != nil {
return nil, err
}
// 判断产品库存是否充足
if productRes.Stock <= 0 {
return nil, status.Error(500, "产品库存不足")
}
newOrder := model.Order{
Uid: in.Uid,
Pid: in.Pid,
Amount: in.Amount,
Status: 0,
}
res, err := l.svcCtx.OrderModel.Insert(&newOrder)
if err != nil {
return nil, status.Error(500, err.Error())
}
newOrder.Id, err = res.LastInsertId()
if err != nil {
return nil, status.Error(500, err.Error())
}
_, err = l.svcCtx.ProductRpc.Update(l.ctx, &product.UpdateRequest{
Id: productRes.Id,
Name: productRes.Name,
Desc: productRes.Desc,
Stock: productRes.Stock - 1,
Amount: productRes.Amount,
Status: productRes.Status,
})
if err != nil {
return nil, err
}
return &order.CreateResponse{
Id: newOrder.Id,
}, nil
}之前我们说过，这里处理逻辑存在数据一致性问题，有可能订单创建成功了，但是在更新产品库存的时候可能会发生失败，这时候就会存在订单创建成功，产品库存没有减少的情况。
DTMSAGADTMDTMdtm->config.ymlMicroServiceTargetEndPointdtmetcd# ...... # 微服务 MicroService: Driver: 'dtm-driver-gozero' # 要处理注册/发现的驱动程序的名称 Target: 'etcd://etcd:2379/dtmservice' # 注册 dtm 服务的 etcd 地址 EndPoint: 'dtm:36790' # ......
dtm_barrierDTMDTMcreate database if not exists dtm_barrier /*!40100 DEFAULT CHARACTER SET utf8mb4 */ ; drop table if exists dtm_barrier.barrier; create table if not exists dtm_barrier.barrier( id bigint(22) PRIMARY KEY AUTO_INCREMENT, trans_type varchar(45) default '', gid varchar(128) default '', branch_id varchar(128) default '', op varchar(45) default '', barrier_id varchar(45) default '', reason varchar(45) default '' comment 'the branch type who insert this record', create_time datetime DEFAULT now(), update_time datetime DEFAULT now(), key(create_time), key(update_time), UNIQUE key(gid, branch_id, op, barrier_id) );
dtmcli.SetBarrierTableNameOrderModelProductModelmodelDTM$ vim mall/service/order/model/ordermodel.go
package model
......
type (
OrderModel interface {
TxInsert(tx *sql.Tx, data *Order) (sql.Result, error)
TxUpdate(tx *sql.Tx, data *Order) error
}
)
......
func (m *defaultOrderModel) TxInsert(tx *sql.Tx, data *Order) (sql.Result, error) {
query := fmt.Sprintf("insert into %s (%s) values (?, ?, ?, ?)", m.table, orderRowsExpectAutoSet)
ret, err := tx.Exec(query, data.Uid, data.Pid, data.Amount, data.Status)
return ret, err
}
func (m *defaultOrderModel) TxUpdate(tx *sql.Tx, data *Order) error {
productIdKey := fmt.Sprintf("%s%v", cacheOrderIdPrefix, data.Id)
_, err := m.Exec(func(conn sqlx.SqlConn) (result sql.Result, err error) {
query := fmt.Sprintf("update %s set %s where `id` = ?", m.table, orderRowsWithPlaceHolder)
return tx.Exec(query, data.Uid, data.Pid, data.Amount, data.Status, data.Id)
}, productIdKey)
return err
}
func (m *defaultOrderModel) FindOneByUid(uid int64) (*Order, error) {
var resp Order
query := fmt.Sprintf("select %s from %s where `uid` = ? order by create_time desc limit 1", orderRows, m.table)
err := m.QueryRowNoCache(&resp, query, uid)
switch err {
case nil:
return &resp, nil
case sqlc.ErrNotFound:
return nil, ErrNotFound
default:
return nil, err
}
}$ vim mall/service/product/model/productmodel.go
package model
......
type (
ProductModel interface {
TxAdjustStock(tx *sql.Tx, id int64, delta int) (sql.Result, error)
}
)
......
func (m *defaultProductModel) TxAdjustStock(tx *sql.Tx, id int64, delta int) (sql.Result, error) {
productIdKey := fmt.Sprintf("%s%v", cacheProductIdPrefix, id)
return m.Exec(func(conn sqlx.SqlConn) (result sql.Result, err error) {
query := fmt.Sprintf("update %s set stock=stock+? where stock >= -? and id=?", m.table)
return tx.Exec(query, delta, delta, id)
}, productIdKey)
}product rpcDecrStockDecrStockRevertproduct rpcDecrStockDecrStockRevert$ vim mall/service/product/rpc/product.proto
syntax = "proto3";
package productclient;
option go_package = "product";
......
// 减产品库存
message DecrStockRequest {
int64 id = 1;
int64 num = 2;
}
message DecrStockResponse {
}
// 减产品库存
service Product {
......
rpc DecrStock(DecrStockRequest) returns(DecrStockResponse);
rpc DecrStockRevert(DecrStockRequest) returns(DecrStockResponse);
}提示：修改后使用 goctl 工具重新生成下代码。
DecrStock$ vim mall/service/product/rpc/internal/logic/decrstocklogic.go
package logic
import (
"context"
"database/sql"
"mall/service/product/rpc/internal/svc"
"mall/service/product/rpc/product"
"github.com/dtm-labs/dtmcli"
"github.com/dtm-labs/dtmgrpc"
"github.com/tal-tech/go-zero/core/logx"
"github.com/tal-tech/go-zero/core/stores/sqlx"
"google.golang.org/grpc/codes"
"google.golang.org/grpc/status"
)
type DecrStockLogic struct {
ctx context.Context
svcCtx *svc.ServiceContext
logx.Logger
}
func NewDecrStockLogic(ctx context.Context, svcCtx *svc.ServiceContext) *DecrStockLogic {
return &DecrStockLogic{
ctx: ctx,
svcCtx: svcCtx,
Logger: logx.WithContext(ctx),
}
}

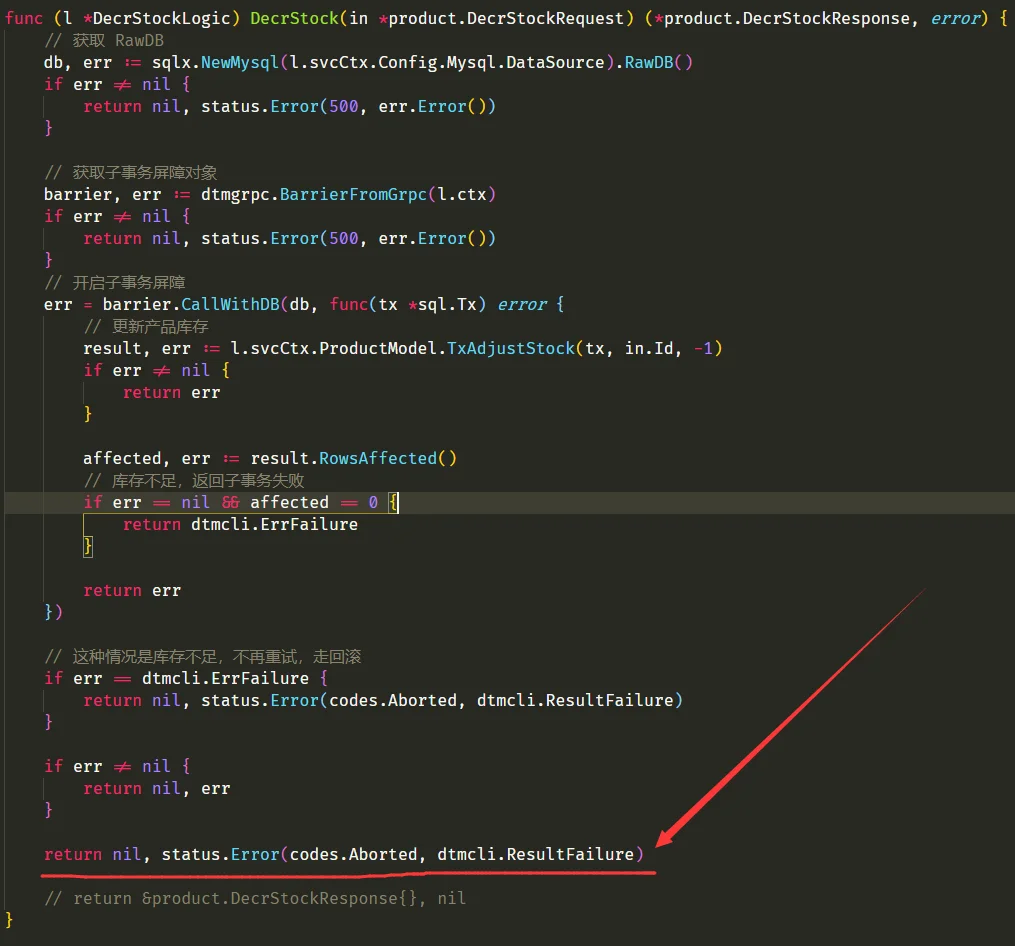

func (l *DecrStockLogic) DecrStock(in *product.DecrStockRequest) (*product.DecrStockResponse, error) {
// 获取 RawDB
db, err := sqlx.NewMysql(l.svcCtx.Config.Mysql.DataSource).RawDB()
if err != nil {
return nil, status.Error(500, err.Error())
}
// 获取子事务屏障对象
barrier, err := dtmgrpc.BarrierFromGrpc(l.ctx)
if err != nil {
return nil, status.Error(500, err.Error())
}
// 开启子事务屏障
err = barrier.CallWithDB(db, func(tx *sql.Tx) error {
// 更新产品库存
result, err := l.svcCtx.ProductModel.TxAdjustStock(tx, in.Id, -1)
if err != nil {
return err
}
affected, err := result.RowsAffected()
// 库存不足，返回子事务失败
if err == nil && affected == 0 {
return dtmcli.ErrFailure
}
return err
})
// 这种情况是库存不足，不再重试，走回滚
if err == dtmcli.ErrFailure {
return nil, status.Error(codes.Aborted, dtmcli.ResultFailure)
}
if err != nil {
return nil, err
}
return &product.DecrStockResponse{}, nil
}DecrStockRevertDecrStockDecrStock$ vim mall/service/product/rpc/internal/logic/decrstockrevertlogic.go
package logic
import (
"context"
"database/sql"
"mall/service/product/rpc/internal/svc"
"mall/service/product/rpc/product"
"github.com/dtm-labs/dtmcli"
"github.com/dtm-labs/dtmgrpc"
"github.com/tal-tech/go-zero/core/logx"
"github.com/tal-tech/go-zero/core/stores/sqlx"
"google.golang.org/grpc/status"
)
type DecrStockRevertLogic struct {
ctx context.Context
svcCtx *svc.ServiceContext
logx.Logger
}
func NewDecrStockRevertLogic(ctx context.Context, svcCtx *svc.ServiceContext) *DecrStockRevertLogic {
return &DecrStockRevertLogic{
ctx: ctx,
svcCtx: svcCtx,
Logger: logx.WithContext(ctx),
}
}
func (l *DecrStockRevertLogic) DecrStockRevert(in *product.DecrStockRequest) (*product.DecrStockResponse, error) {
// 获取 RawDB
db, err := sqlx.NewMysql(l.svcCtx.Config.Mysql.DataSource).RawDB()
if err != nil {
return nil, status.Error(500, err.Error())
}
// 获取子事务屏障对象
barrier, err := dtmgrpc.BarrierFromGrpc(l.ctx)
if err != nil {
return nil, status.Error(500, err.Error())
}
// 开启子事务屏障
err = barrier.CallWithDB(db, func(tx *sql.Tx) error {
// 更新产品库存
_, err := l.svcCtx.ProductModel.TxAdjustStock(tx, in.Id, 1)
return err
})
if err != nil {
return nil, err
}
return &product.DecrStockResponse{}, nil
}order rpcCreateRevertorder rpcCreateDecrStockRevert$ vim mall/service/order/rpc/order.proto
syntax = "proto3";
package orderclient;
option go_package = "order";
......
service Order {
rpc Create(CreateRequest) returns(CreateResponse);
rpc CreateRevert(CreateRequest) returns(CreateResponse);
......
}提示：修改后使用 goctl 工具重新生成下代码。
CreateCreateproduct rpcDecrStock$ vim mall/service/order/rpc/internal/logic/createlogic.go
package logic
import (
"context"
"database/sql"
"fmt"
"mall/service/order/model"
"mall/service/order/rpc/internal/svc"
"mall/service/order/rpc/order"
"mall/service/user/rpc/user"
"github.com/dtm-labs/dtmgrpc"
"github.com/tal-tech/go-zero/core/logx"
"github.com/tal-tech/go-zero/core/stores/sqlx"
"google.golang.org/grpc/status"
)
type CreateLogic struct {
ctx context.Context
svcCtx *svc.ServiceContext
logx.Logger
}
func NewCreateLogic(ctx context.Context, svcCtx *svc.ServiceContext) *CreateLogic {
return &CreateLogic{
ctx: ctx,
svcCtx: svcCtx,
Logger: logx.WithContext(ctx),
}
}
func (l *CreateLogic) Create(in *order.CreateRequest) (*order.CreateResponse, error) {
// 获取 RawDB
db, err := sqlx.NewMysql(l.svcCtx.Config.Mysql.DataSource).RawDB()
if err != nil {
return nil, status.Error(500, err.Error())
}
// 获取子事务屏障对象
barrier, err := dtmgrpc.BarrierFromGrpc(l.ctx)
if err != nil {
return nil, status.Error(500, err.Error())
}
// 开启子事务屏障
if err := barrier.CallWithDB(db, func(tx *sql.Tx) error {
// 查询用户是否存在
_, err := l.svcCtx.UserRpc.UserInfo(l.ctx, &user.UserInfoRequest{
Id: in.Uid,
})
if err != nil {
return fmt.Errorf("用户不存在")
}
newOrder := model.Order{
Uid: in.Uid,
Pid: in.Pid,
Amount: in.Amount,
Status: 0,
}
// 创建订单
_, err = l.svcCtx.OrderModel.TxInsert(tx, &newOrder)
if err != nil {
return fmt.Errorf("订单创建失败")
}
return nil
}); err != nil {
return nil, status.Error(500, err.Error())
}
return &order.CreateResponse{}, nil
}CreateRevert9（无效状态）$ vim mall/service/order/rpc/internal/logic/createrevertlogic.go
package logic
import (
"context"
"database/sql"
"fmt"
"mall/service/order/rpc/internal/svc"
"mall/service/order/rpc/order"
"mall/service/user/rpc/user"
"github.com/dtm-labs/dtmgrpc"
"github.com/tal-tech/go-zero/core/logx"
"github.com/tal-tech/go-zero/core/stores/sqlx"
"google.golang.org/grpc/status"
)
type CreateRevertLogic struct {
ctx context.Context
svcCtx *svc.ServiceContext
logx.Logger
}
func NewCreateRevertLogic(ctx context.Context, svcCtx *svc.ServiceContext) *CreateRevertLogic {
return &CreateRevertLogic{
ctx: ctx,
svcCtx: svcCtx,
Logger: logx.WithContext(ctx),
}
}
func (l *CreateRevertLogic) CreateRevert(in *order.CreateRequest) (*order.CreateResponse, error) {
// 获取 RawDB
db, err := sqlx.NewMysql(l.svcCtx.Config.Mysql.DataSource).RawDB()
if err != nil {
return nil, status.Error(500, err.Error())
}
// 获取子事务屏障对象
barrier, err := dtmgrpc.BarrierFromGrpc(l.ctx)
if err != nil {
return nil, status.Error(500, err.Error())
}
// 开启子事务屏障
if err := barrier.CallWithDB(db, func(tx *sql.Tx) error {
// 查询用户是否存在
_, err := l.svcCtx.UserRpc.UserInfo(l.ctx, &user.UserInfoRequest{
Id: in.Uid,
})
if err != nil {
return fmt.Errorf("用户不存在")
}
// 查询用户最新创建的订单
resOrder, err := l.svcCtx.OrderModel.FindOneByUid(in.Uid)
if err != nil {
return fmt.Errorf("订单不存在")
}
// 修改订单状态9，标识订单已失效，并更新订单
resOrder.Status = 9
err = l.svcCtx.OrderModel.TxUpdate(tx, resOrder)
if err != nil {
return fmt.Errorf("订单更新失败")
}
return nil
}); err != nil {
return nil, status.Error(500, err.Error())
}
return &order.CreateResponse{}, nil
}order apiorder rpcCreateCreateRevertproduct rpcDecrStockDecrStockRevertorder apiSAGA事务模式pproduct rpc$ vim mall/service/order/api/etc/order.yaml
Name: Order Host: 0.0.0.0 Port: 8002 ...... OrderRpc: Etcd: Hosts: - etcd:2379 Key: order.rpc ProductRpc: Etcd: Hosts: - etcd:2379 Key: product.rpc
pproduct rpc$ vim mall/service/order/api/internal/config/config.go
package config
import (
"github.com/tal-tech/go-zero/rest"
"github.com/tal-tech/go-zero/zrpc"
)
type Config struct {
rest.RestConf
Auth struct {
AccessSecret string
AccessExpire int64
}
OrderRpc zrpc.RpcClientConf
ProductRpc zrpc.RpcClientConf
}pproduct rpc$ vim mall/service/order/api/internal/svc/servicecontext.go
package svc
import (
"mall/service/order/api/internal/config"
"mall/service/order/rpc/orderclient"
"mall/service/product/rpc/productclient"
"github.com/tal-tech/go-zero/zrpc"
)
type ServiceContext struct {
Config config.Config
OrderRpc orderclient.Order
ProductRpc productclient.Product
}
func NewServiceContext(c config.Config) *ServiceContext {
return &ServiceContext{
Config: c,
OrderRpc: orderclient.NewOrder(zrpc.MustNewClient(c.OrderRpc)),
ProductRpc: productclient.NewProduct(zrpc.MustNewClient(c.ProductRpc)),
}
}gozerodtm$ vim mall/service/order/api/order.go
package main
import (
......
_ "github.com/dtm-labs/driver-gozero" // 添加导入 `gozero` 的 `dtm` 驱动
)
var configFile = flag.String("f", "etc/order.yaml", "the config file")
func main() {
......
}order apiCreate$ vim mall/service/order/api/internal/logic/createlogic.go
package logic
import (
"context"
"mall/service/order/api/internal/svc"
"mall/service/order/api/internal/types"
"mall/service/order/rpc/order"
"mall/service/product/rpc/product"
"github.com/dtm-labs/dtmgrpc"
"github.com/tal-tech/go-zero/core/logx"
"google.golang.org/grpc/status"
)
type CreateLogic struct {
logx.Logger
ctx context.Context
svcCtx *svc.ServiceContext
}
func NewCreateLogic(ctx context.Context, svcCtx *svc.ServiceContext) CreateLogic {
return CreateLogic{
Logger: logx.WithContext(ctx),
ctx: ctx,
svcCtx: svcCtx,
}
}
func (l *CreateLogic) Create(req types.CreateRequest) (resp *types.CreateResponse, err error) {
// 获取 OrderRpc BuildTarget
orderRpcBusiServer, err := l.svcCtx.Config.OrderRpc.BuildTarget()
if err != nil {
return nil, status.Error(100, "订单创建异常")
}
// 获取 ProductRpc BuildTarget
productRpcBusiServer, err := l.svcCtx.Config.ProductRpc.BuildTarget()
if err != nil {
return nil, status.Error(100, "订单创建异常")
}
// dtm 服务的 etcd 注册地址
var dtmServer = "etcd://etcd:2379/dtmservice"
// 创建一个gid
gid := dtmgrpc.MustGenGid(dtmServer)
// 创建一个saga协议的事务
saga := dtmgrpc.NewSagaGrpc(dtmServer, gid).
Add(orderRpcBusiServer+"/orderclient.Order/Create", orderRpcBusiServer+"/orderclient.Order/CreateRevert", &order.CreateRequest{
Uid: req.Uid,
Pid: req.Pid,
Amount: req.Amount,
Status: 0,
}).
Add(productRpcBusiServer+"/productclient.Product/DecrStock", productRpcBusiServer+"/productclient.Product/DecrStockRevert", &product.DecrStockRequest{
Id: req.Pid,
Num: 1,
})
// 事务提交
err = saga.Submit()
if err != nil {
return nil, status.Error(500, err.Error())
}
return &types.CreateResponse{}, nil

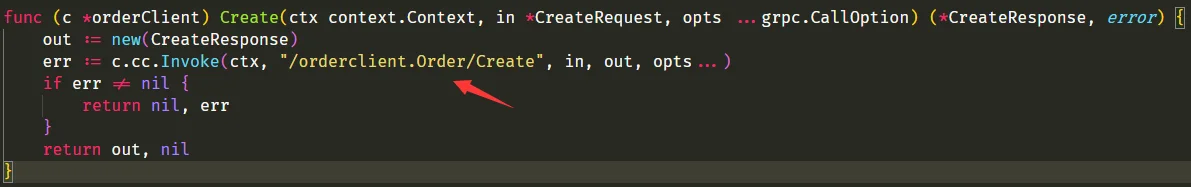

}SagaGrpc.Addactiongrpcmall/service/order/rpc/order/order.pb.gomall/service/product/rpc/product/product.pb.goInvoke
go-zeroDTM10.3.1 测试分布式事务正常流程

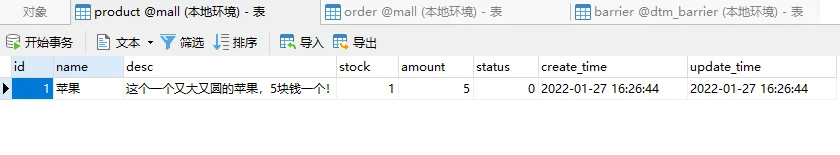

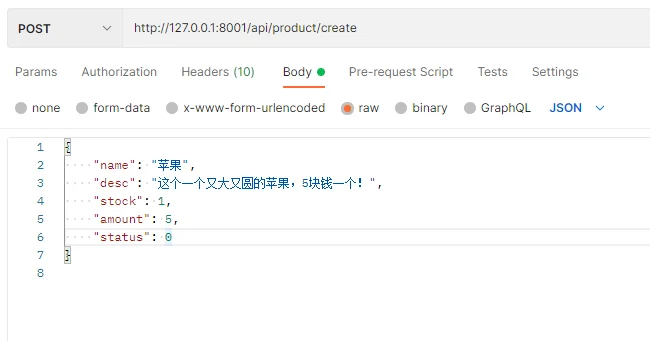

postman/api/product/createstock1

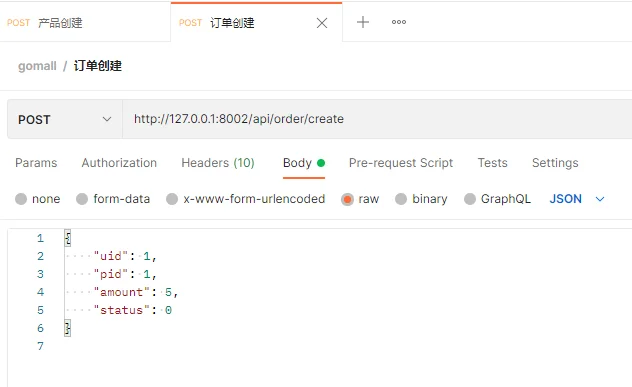

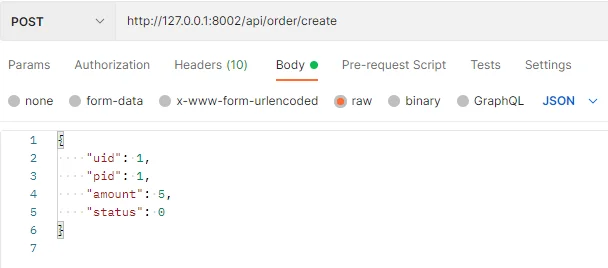

postman/api/order/createpid1

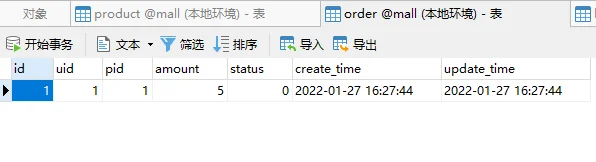

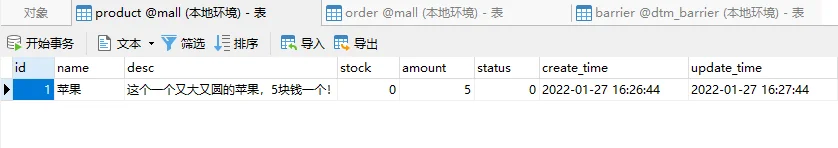

10

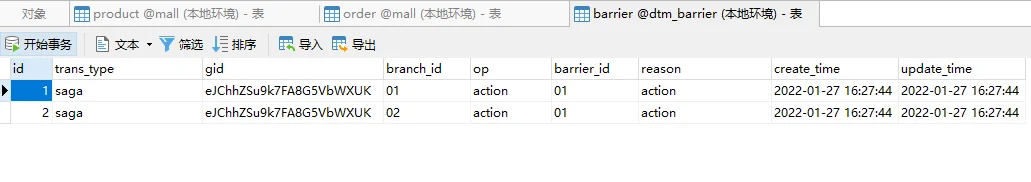

barrier
10.3.2 测试分布式事务失败流程1

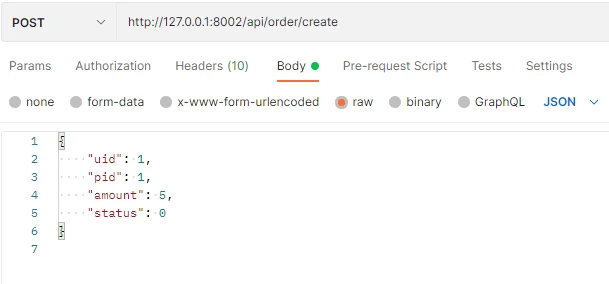

10postman/api/order/create
219

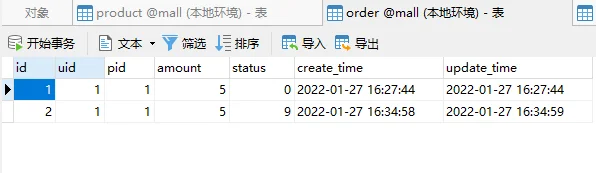

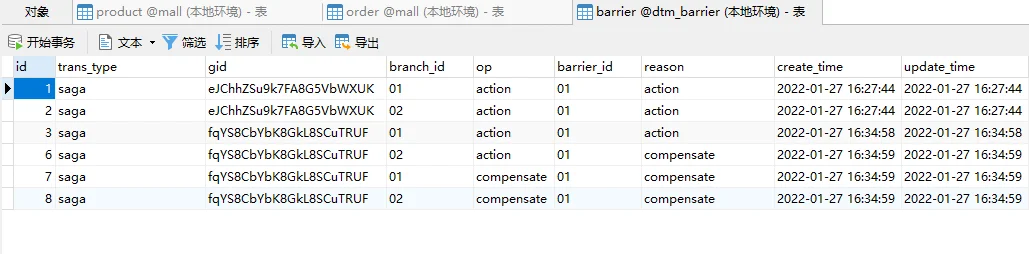

barrier（gid = fqYS8CbYbK8GkL8SCuTRUF）（branch_id = 01）（branch_id = 02）
DTMorder rpcCreateDTMproduct rpcDecrStockpidDTMorder rpcCreateRevertDTMproduct rpcDecrStockRevertproduct rpcDecrStockDecrStockRevert10.3.3 测试分布式事务失败流程2
1product rpcDecrStock
postman/api/order/createpid1

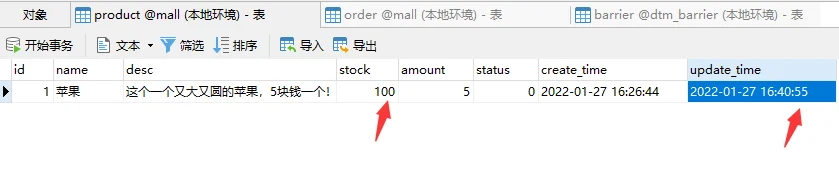

391100

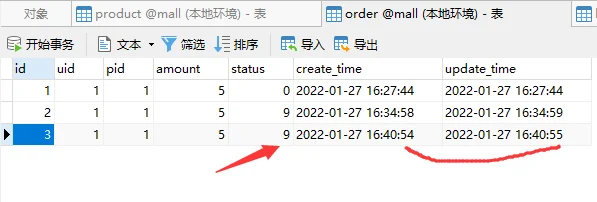

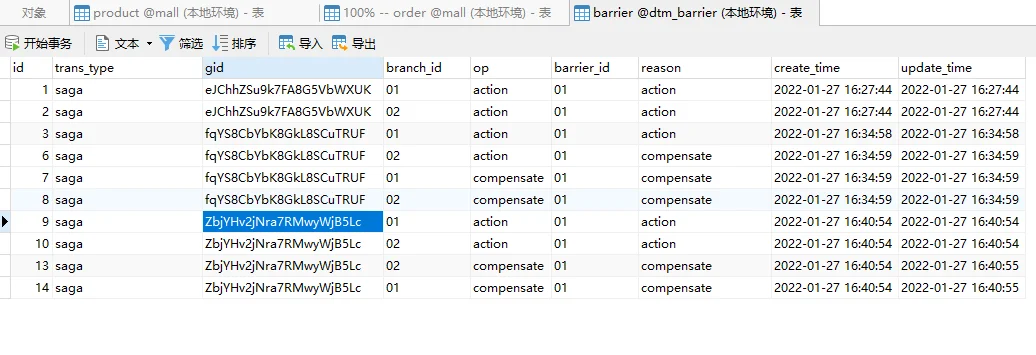

barrier（gid = ZbjYHv2jNra7RMwyWjB5Lc）（branch_id = 01）（branch_id = 02）product rpcDecrStock
DTM子事务屏障会自动识别正向操作是否已执行，失败流程1未执行业务操作，所以补偿时，也不会执行补偿的业务操作；失败流程2执行了业务操作，所以补偿时，也会执行补偿的业务操作。
项目地址
go-zero微信交流群
关注『微服务实践』公众号并点击 交流群 获取社区群二维码。
