应用场景

每次去阿里云控制台 将自己的外网IP添加为白名单操作过于繁琐，一切可以自动化的事情应该要自动化，所以我们需要一个 自动将本机外网IP添加为安全组规则的脚本。

前置条件

AuthorizeSecurityGroupAccessKey

前往 AccessKey 管理 添加 accessKey。

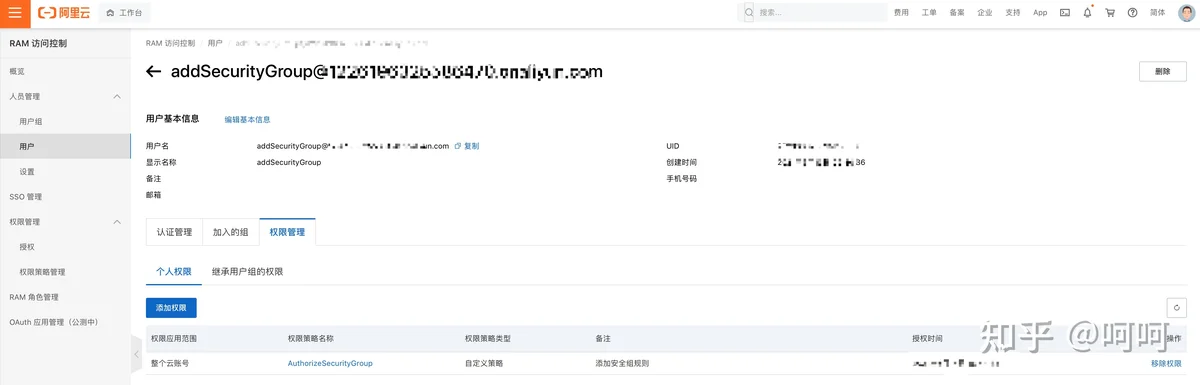

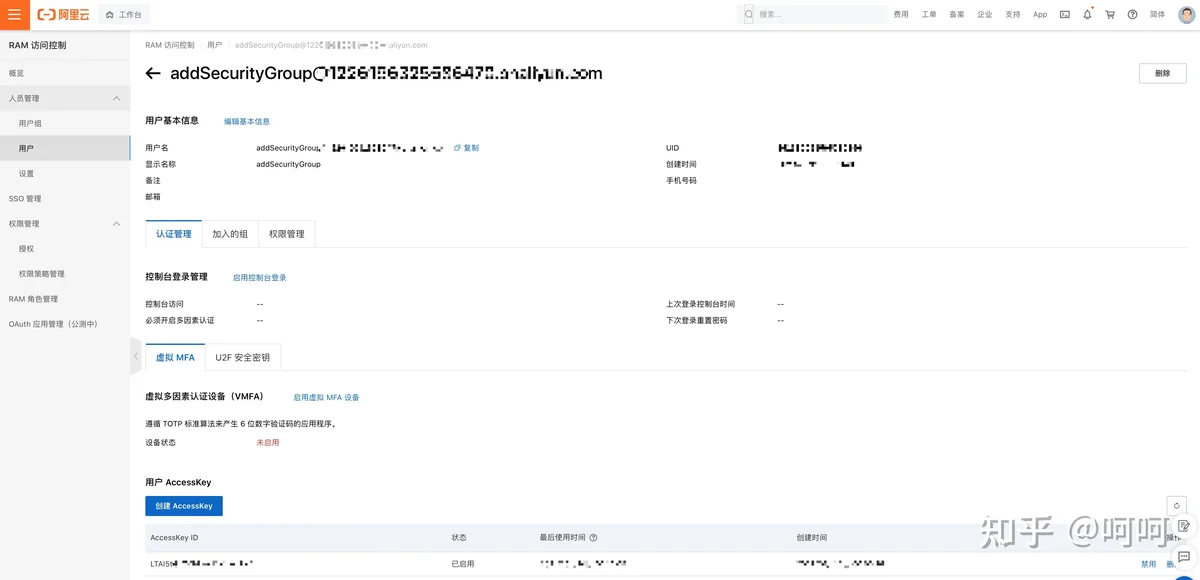

添加一个子账号，创建 AccessKey

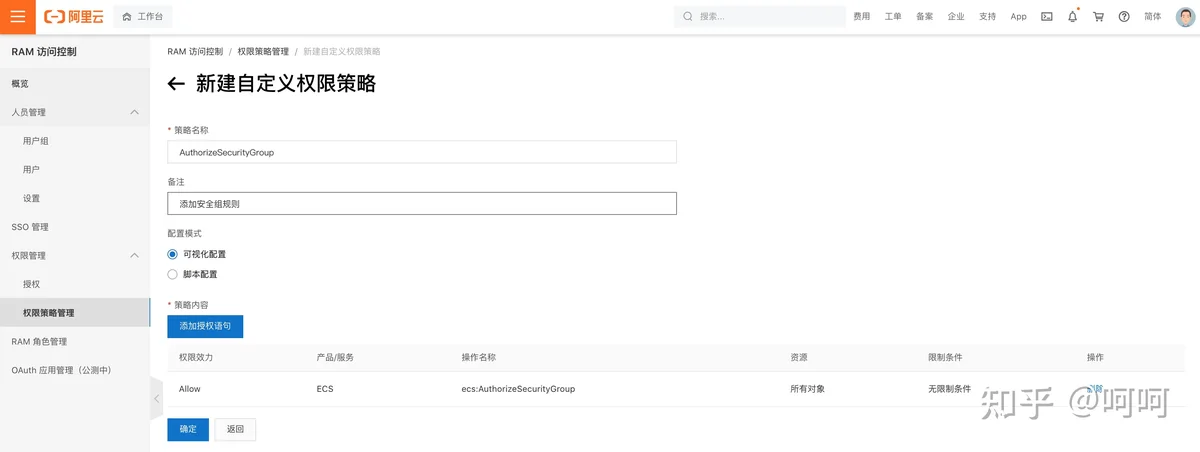

AuthorizeSecurityGroup


准备好了 AccessKey，就可以开始准备脚本了。

以下提供两种方式， Python 、Golang（推荐，因为编译后看不到密码）。

1/65535

1. Python

1.1 安装依赖包

# pip3 install aliyun-python-sdk-ecs==4.24.3

1.2 编写脚本

, ,
#!/usr/bin/env python
#coding=utf-8
import requests
from aliyunsdkcore.client import AcsClient
from aliyunsdkcore.acs_exception.exceptions import ClientException
from aliyunsdkcore.acs_exception.exceptions import ServerException
from aliyunsdkecs.request.v20140526.AuthorizeSecurityGroupRequest import AuthorizeSecurityGroupRequest

r = requests.get('https://ipw.cn/api/ip/myip')
clientIP = r.text

# <accessKeyId>, <accessSecret>: 前往 https://ram.console.aliyun.com/manage/ak 添加 accessKey
# RegionId：安全组所属地域ID ，比如 `cn-guangzhou`
# 访问 [DescribeRegions:查询可以使用的阿里云地域](https://next.api.aliyun.com/api/Ecs/2014-05-26/DescribeRegions) 查阅
# 国内一般是去掉 ECS 所在可用区的后缀，比如去掉 cn-guangzhou-b 的尾号 -b
client = AcsClient('<accessKeyId>', '<accessSecret>', '<RegionId>')

request = AuthorizeSecurityGroupRequest()
request.set_accept_format('json')

request.set_SecurityGroupId("<YourSecurityGroupId>") # 安全组ID
request.set_IpProtocol("tcp") # 协议,可选 tcp,udp, icmp, gre, all：支持所有协议
request.set_PortRange("22/22") # 端口范围，使用斜线（/）隔开起始端口和终止端口，如果信任所有端口为 1/65535
request.set_Priority("1") # 安全组规则优先级，数字越小，代表优先级越高。取值范围：1~100
request.set_Policy("accept") # accept:接受访问, drop: 拒绝访问
request.set_NicType("internet") # internet：公网网卡, intranet：内网网卡。
request.set_SourceCidrIp(clientIP) # 源端IPv4 CIDR地址段。支持CIDR格式和IPv4格式的IP地址范围。

response = client.do_action_with_exception(request)
# python2:  print(response)
print(str(response, encoding='utf-8'))
print("Client IP: %s  was successfully added to the Security Group." % clientIP)

1.3 执行代码

$ python3 addSecurityGroupRule.py
{"RequestId":"1657CAC5-8B1F-4EB8-A947-DC76F44B27C8"}
Client IP: 119.xx.xx.xx  was successfully added to the Security Group.

2. Golang

2.1 安装依赖包

$ go get github.com/aliyun/alibaba-cloud-sdk-go/services/ecs

2.2 编写脚本

, ,
package main

import (
    "fmt"
    "io/ioutil"
    "net/http"

    "github.com/aliyun/alibaba-cloud-sdk-go/services/ecs"
)

func main() {

    responseClient, errClient := http.Get("https://ipw.cn/api/ip/myip") // 获取外网 IP
    if errClient != nil {
        fmt.Printf("获取外网 IP 失败，请检查网络\n")
        panic(errClient)
    }
    // 程序在使用完 response 后必须关闭 response 的主体。
    defer responseClient.Body.Close()

    body, _ := ioutil.ReadAll(responseClient.Body)
    clientIP := string(body)

// <accessKeyId>, <accessSecret>: 前往 https://ram.console.aliyun.com/manage/ak 添加 accessKey
// RegionId：安全组所属地域ID ，比如 `cn-guangzhou`
// 访问 [DescribeRegions:查询可以使用的阿里云地域](https://next.api.aliyun.com/api/Ecs/2014-05-26/DescribeRegions) 查阅
// 国内一般是去掉 ECS 所在可用区的后缀，比如去掉 cn-guangzhou-b 的尾号 -b

    client, err := ecs.NewClientWithAccessKey("<RegionId>", "<accessKeyId>", "<accessSecret>")
    if err != nil {
        fmt.Print(err.Error())
    }

    request := ecs.CreateAuthorizeSecurityGroupRequest()
    request.Scheme = "https"

    request.SecurityGroupId = "<YourSecurityGroupId>" // 安全组ID
    request.IpProtocol = "tcp" // 协议,可选 tcp,udp, icmp, gre, all：支持所有协议
    request.PortRange = "22/22" // 端口范围，使用斜线（/）隔开起始端口和终止端口
    request.Priority = "1" // 安全组规则优先级，数字越小，代表优先级越高。取值范围：1~100
    request.Policy = "accept" // accept:接受访问, drop: 拒绝访问
    request.NicType = "internet" // internet：公网网卡, intranet：内网网卡。
    request.SourceCidrIp = clientIP // 源端IPv4 CIDR地址段。支持CIDR格式和IPv4格式的IP地址范围。

    response, err := client.AuthorizeSecurityGroup(request)
    if err != nil {
        fmt.Print(err.Error())
    }
    fmt.Printf("Response: %#v\nClient IP: %s  was successfully added to the Security Group.\n", response, clientIP)
}

2.3 执行代码

$ go run addSecurityGroupRule.go
Response: &ecs.AuthorizeSecurityGroupResponse{BaseResponse:(*responses.BaseResponse)(0xc00014c080), RequestId:"53C16A7C-91DC-48E6-B6BA-B0830A00C7C1"}
Client IP: 119.xx.xx.xx  was successfully added to the Security Group.

无误后，编译程序

$ go build addSecurityGroupRule.go
$ ./addSecurityGroupRule
Response: &ecs.AuthorizeSecurityGroupResponse{BaseResponse:(*responses.BaseResponse)(0xc0002c0080), RequestId:"BEAC369E-2267-4EEF-9463-26A1DEA3ED9B"}
Client IP: 119.xx.xx.xx  was successfully added to the Security Group.

自动化可以解放我们，一起加油吧。
