go语言web开发系列之十二:gin框架通过casbin实现rbac权限设计(mysql存储规则)

一，安装casbin

1,casbin项目代码的地址



2,为go安装casbin

liuhongdi@ku:~$ go get -u github.com/casbin/casbin/v2

gorm-adapter代码地址:

安装gorm-adapter

liuhongdi@ku:~$ go get -u github.com/casbin/gorm-adapter/v3

4,为兼容gorm-adapter,我们更换了gorm的版本，

  安装命令:

liuhongdi@ku:~$ go get -u gorm.io/gorm

说明：csv存储只适合于不需要对规则进行管理的权限设计,
          所以我们在这里使用数据库来存储规则

说明：刘宏缔的go森林是一个专注golang的博客，
          地址：https://blog.csdn.net/weixin_43881017



二，演示项目的相关信息

1，项目地址

2,项目功能说明：

   /admin/* :只有role为 superAdmin时可访问

  /article/* : role为superAdmin/user时均可访问

  /home/*:   role为任何用户时均可访问

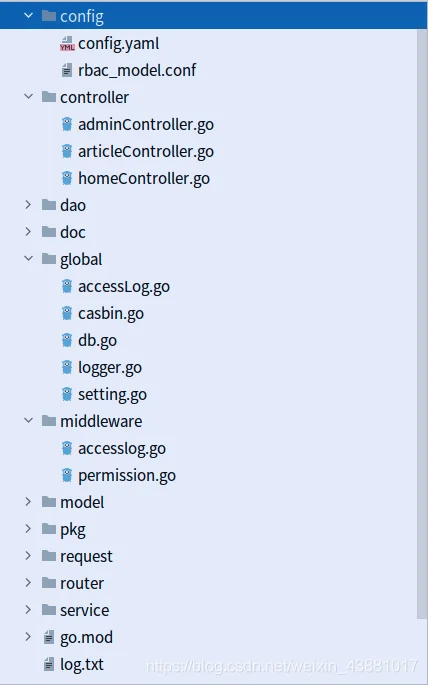

3，项目结构：如图:



三，配置文件说明:

1,config/rbac_model.conf

# Request definition 自定义请求的格式
[request_definition]
r = sub, obj, act

# Policy definition 策略定义
[policy_definition]
p = sub, obj, act

# Policy effect
[policy_effect]
e = some(where (p.eft == allow))

# Matchers
[matchers]
#m = r.sub == p.sub && r.obj == p.obj && r.act == p.act
m = (r.sub == p.sub || p.sub == "*") && keyMatch(r.obj,p.obj) && (r.act == p.act || p.act == "*")

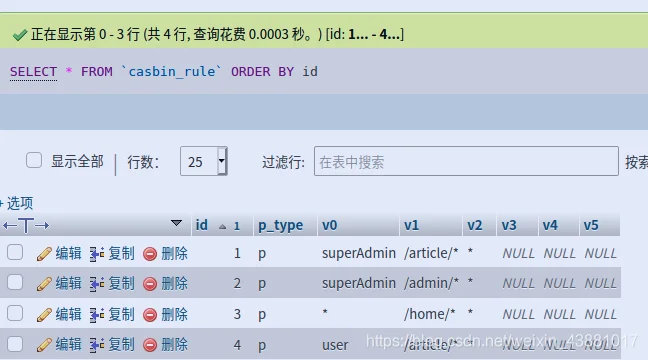

2,mysql数据表:

说明：此数据表由casbin的gorm-adapter自动创建，我们只需要插入数据即可:

sql:

INSERT INTO `casbin_rule` (`id`, `p_type`, `v0`, `v1`, `v2`, `v3`, `v4`, `v5`) VALUES
(3, 'p', '*', '/home/*', '*', NULL, NULL, NULL),
(2, 'p', 'superAdmin', '/admin/*', '*', NULL, NULL, NULL),
(1, 'p', 'superAdmin', '/article/*', '*', NULL, NULL, NULL),
(4, 'p', 'user', '/article/*', '*', NULL, NULL, NULL);



四，go代码说明

1,homeController.go

package controller

import (
	"github.com/gin-gonic/gin"
	"github.com/liuhongdi/digv12/pkg/result"
)

type HomeController struct{}

func NewHomeController() HomeController {
	return HomeController{}
}
//首页，任何人可访问，不登录也可访问
func (a *HomeController) Home(c *gin.Context) {
	resultRes := result.NewResult(c)
	resultRes.Success("this is home page");
	return
}



2,adminController.go

package controller

import (
	"github.com/gin-gonic/gin"
	"github.com/liuhongdi/digv12/pkg/result"
)

type HomeController struct{}

func NewHomeController() HomeController {
	return HomeController{}
}
//首页，任何人可访问，不登录也可访问
func (a *HomeController) Home(c *gin.Context) {
	resultRes := result.NewResult(c)
	resultRes.Success("this is home page");
	return
}

3,ArticleController.go

package controller

import (
	"fmt"
	"github.com/gin-gonic/gin"
	"github.com/liuhongdi/digv12/pkg/page"
	"github.com/liuhongdi/digv12/pkg/result"
	"github.com/liuhongdi/digv12/pkg/validCheck"
	"github.com/liuhongdi/digv12/request"
	"github.com/liuhongdi/digv12/service"
)

type ArticleController struct{}

func NewArticleController() ArticleController {
	return ArticleController{}
}
//得到一篇文章的详情
func (a *ArticleController) GetOne(c *gin.Context) {
	result := result.NewResult(c)
	param := request.ArticleRequest{ID: validCheck.StrTo(c.Param("id")).MustUInt64()}
	valid, errs := validCheck.BindAndValid(c, &param)
	if !valid {
		result.Error(400,errs.Error())
		return
	}

	if (param.ID == 100) {
		var z int = 0
		var i int = 100 / z
		fmt.Println("i:%i",i)
	}

	articleOne,err := service.GetOneArticle(param.ID);
	if err != nil {
		result.Error(404,"数据查询错误")
	} else {
		result.Success(&articleOne);
	}
	return
}

4,global/casbin.go

package global

import (
	"fmt"
	"github.com/casbin/casbin/v2"
	gormadapter "github.com/casbin/gorm-adapter/v3"
	"log"
	"os"
)

var (
	Enforcer *casbin.Enforcer
)

//创建casbin的enforcer
func SetupCasbinEnforcer() (error) {

	a, err := gormadapter.NewAdapterByDB(DBLink)
	if (err != nil) {
		log.Fatalf("gormadapter.NewAdapterByDB err: %v", err)
	}
	dir, _ := os.Getwd()
	modelPath := dir + "/config/rbac_model.conf"
	//csvPath := dir + "/config/rbac2.csv"
	fmt.Println("modelPath:"+modelPath);
	//fmt.Println("csvPath:"+csvPath);
	var errC error
	Enforcer, errC = casbin.NewEnforcer(modelPath, a)
	//fmt.Printf("RBAC test start\n") // output for debug
	if (errC != nil) {
		//fmt.Println(errC)
		log.Fatalf("SetupCasbinEnforcer err: %v", errC)
		return errC
	} else {
		Enforcer.LoadPolicy()
		Enforcer.EnableLog(true)
		return nil
	}
}

5,main.go

package main

import (
	"github.com/gin-gonic/gin"
	"github.com/liuhongdi/digv12/global"
	"github.com/liuhongdi/digv12/router"
	"log"
)

//init
func init() {
	//setting
	err := global.SetupSetting()
	if err != nil {
		log.Fatalf("init.setupSetting err: %v", err)
	}

	//logger
	err = global.SetupLogger()
	if err != nil {
		log.Fatalf("init.SetupLogger err: %v", err)
	}

	//access logger
	err = global.SetupAccessLogger()
	if err != nil {
		log.Fatalf("init.SetupAccessLogger err: %v", err)
	}

	//db
	err = global.SetupDBLink()
	if err != nil {
		log.Fatalf("init.SetupLogger err: %v", err)
		global.Logger.Fatalf("init.setupDBEngine err: %v", err)
	}

	//casbin
	err = global.SetupCasbinEnforcer()
	if err != nil {
		log.Fatalf("init.SetupCasbinEnforcer err: %v", err)
		global.Logger.Fatalf("init.SetupCasbinEnforcer err: %v", err)
	}

	global.Logger.Infof("------应用init结束")
	//global.Logger.
}

func main() {
	global.Logger.Infof("------应用main函数开始")
	//设置运行模式
	gin.SetMode(global.ServerSetting.RunMode)
	//引入路由
	r := router.Router()
	//run
	r.Run(":"+global.ServerSetting.HttpPort)
}

说明：注意casbin的初始化要放到mysql之后

6,middleware/permission.go

package middleware

import (
	"fmt"
    "github.com/gin-gonic/gin"
	"github.com/liuhongdi/digv12/global"
	"github.com/liuhongdi/digv12/pkg/result"
)

func PermissionMiddleWare() gin.HandlerFunc {
	return func(c *gin.Context) {

		// 请求的path
		p := c.Request.URL.Path
		// 请求的方法
		m := c.Request.Method

		role:="superAdmin"
		//role:="user"
		//role:="guest"

		fmt.Println("role:"+role)
		fmt.Println("path:"+p)
		fmt.Println("method:"+m)

		// 检查用户权限
		isPass, err := global.Enforcer.Enforce(role, p, m)
		if err != nil {
			resultRes := result.NewResult(c)
			resultRes.Error(2005,err.Error())
			return
		}
		if isPass {
			c.Next()
		} else {
			resultRes := result.NewResult(c)
			resultRes.Error(2006,"无访问权限")
			return
		}
	}
}

7,其他相关代码可访问github



五，测试效果

1,middleware/permission.go中，

  role:="guest"

访问:

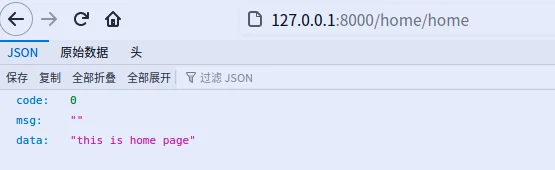

http://127.0.0.1:8000/home/home

返回:

访问:

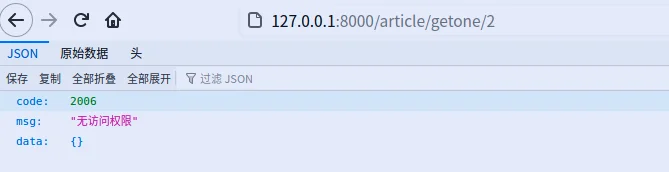

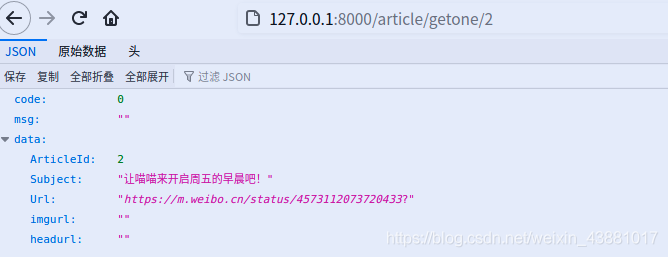

http://127.0.0.1:8000/article/getone/2

返回:

访问:

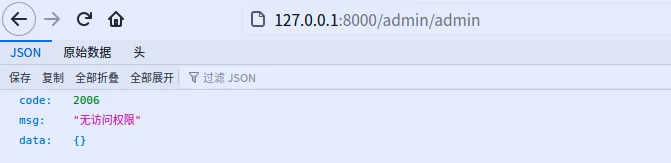

http://127.0.0.1:8000/admin/admin

返回:



2,middleware/permission.go中，

role:="user"

访问:

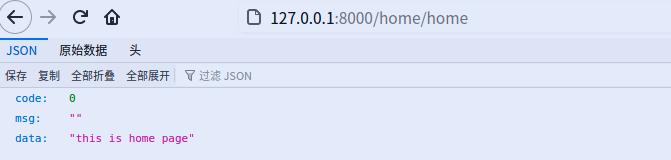

http://127.0.0.1:8000/home/home

返回:

访问:

http://127.0.0.1:8000/article/getone/2

返回:

访问:

http://127.0.0.1:8000/admin/admin

返回:

3,middleware/permission.go中，

role:="superAdmin"

访问:

http://127.0.0.1:8000/home/home

返回:

访问:

http://127.0.0.1:8000/article/getone/2

返回:

访问:

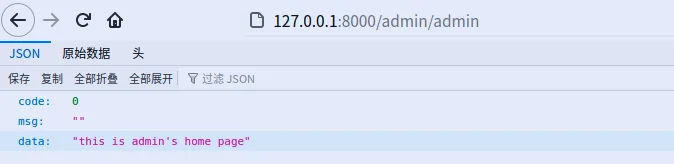

http://127.0.0.1:8000/admin/admin

返回:

六，查看库的版本:

module github.com/liuhongdi/digv12

go 1.15

require (
	github.com/casbin/casbin/v2 v2.17.0
	github.com/casbin/gorm-adapter/v3 v3.0.4
	github.com/gin-gonic/gin v1.6.3
	github.com/go-playground/universal-translator v0.17.0
	github.com/go-playground/validator/v10 v10.2.0
	github.com/lestrrat/go-file-rotatelogs v0.0.0-20180223000712-d3151e2a480f
	github.com/lestrrat/go-strftime v0.0.0-20180220042222-ba3bf9c1d042 // indirect
	github.com/magiconair/properties v1.8.4 // indirect
	github.com/mitchellh/mapstructure v1.3.3 // indirect
	github.com/pelletier/go-toml v1.8.1 // indirect
	github.com/pkg/errors v0.9.1 // indirect
	github.com/spf13/afero v1.4.1 // indirect
	github.com/spf13/cast v1.3.1 // indirect
	github.com/spf13/jwalterweatherman v1.1.0 // indirect
	github.com/spf13/pflag v1.0.5 // indirect
	github.com/spf13/viper v1.7.1
	go.uber.org/multierr v1.6.0 // indirect
	go.uber.org/zap v1.16.0
	golang.org/x/sys v0.0.0-20201119102817-f84b799fce68 // indirect
	golang.org/x/text v0.3.4 // indirect
	gopkg.in/ini.v1 v1.62.0 // indirect
	gopkg.in/yaml.v2 v2.3.0 // indirect
	gorm.io/driver/mysql v1.0.1
	gorm.io/gorm v1.20.7
)
