Golang GUI基础1

What you are wasting today is tomorrow for those who died yesterday; what you hate now is the future you can not go back.

你所浪费的今天是昨天死去的人奢望的明天； 你所厌恶的现在是未来的你回不去的曾经。

本人入门Golang的gui， 只是想做一些小的工具日常工作使用， 因为对Golang的热爱已经到了如痴如醉的地步。

 开始今天的lxn/walk练习：

package main

import (
	"encoding/json"
	"github.com/lxn/walk"
	. "github.com/lxn/walk/declarative"
)

func main() {
	var inTE, outTE *walk.TextEdit
	MainWindow{
		Title:   "格式化工具",
		MinSize: Size{600, 400},
		Layout:  VBox{},
		Children: []Widget{
			HSplitter{
				Children: []Widget{
					TextEdit{AssignTo: &inTE},
					TextEdit{AssignTo: &outTE, ReadOnly: true},
				},
			},
			PushButton{
				Text: "格式化",
				MinSize:Size{150, 36},
				OnClicked: func() {
					var jsonStr interface{}
					err := json.Unmarshal([]byte(inTE.Text()), &jsonStr)
					jsonStr, _ = json.MarshalIndent(jsonStr, "\r\n", "\t")
					if err != nil {
                        // 暂时未找到设置颜色值
						//outTE.SetTextColor(walk.Color(32))
						outTE.SetText("数据格式不正确")
					} else {
						outTE.SetText(string(jsonStr.([]uint8)))
					}
				},
			},
		},
	}.Run()
}





本案例尽在Windows 10 上测试。

运行首先使用rsrc工具编译加载manifest文件，然后build生成可执行文件





======================小优化======================

1. 添加格式化的字符
2. 控件的优化

package main

import (
	"encoding/json"
	"github.com/lxn/walk"
	. "github.com/lxn/walk/declarative"
)
func main() {
	var inTE, outTE *walk.TextEdit
	var RadioTypeTab,RadioTypeSpace *walk.RadioButton

	MainWindow{
		Title:   "格式化工具",
		MinSize: Size{600, 400},
		Layout:  VBox{},
		Children: []Widget{
			HSplitter{
				MinSize: Size{600, 300},
				Children: []Widget{
					TextEdit{AssignTo: &inTE, HScroll:true, VScroll:true},
					TextEdit{AssignTo: &outTE, ReadOnly: true, HScroll:true, VScroll:true},
				},
			},
			Composite{
				MinSize: Size{600, 50},
				Layout:  Grid{Columns: 6, Spacing: 10},
				Children: []Widget{
					HSplitter{
						Children: []Widget{
							RadioButtonGroup{
								Buttons: []RadioButton{
									RadioButton{Name: "SplitType", Text: "Tab", Value: "Tab", RowSpan: 3, ToolTipText: "这是默认选项",AssignTo:&RadioTypeTab},
									RadioButton{Name: "SplitType", Text: "空格", Value: "space", ToolTipText: "4个空格",AssignTo:&RadioTypeSpace}}},
						},
					},
				},
			},
			PushButton{
				Text:    "格式化",
				MinSize: Size{150, 36},
				OnClicked: func() {
					typeStr := "    "
					checked := RadioTypeTab.Checked()
					if checked {
						typeStr = "\t"
					}

					var TextColor walk.Color
					if inTE.Text() == "" {
						TextColor = walk.RGB(byte(255), byte(48), byte(48))
						outTE.SetTextColor(TextColor)
						outTE.SetText("数据为空")
						return
					}
					var jsonStr interface{}
					err := json.Unmarshal([]byte(inTE.Text()), &jsonStr)
					jsonStr, _ = json.MarshalIndent(jsonStr, "\r\n", typeStr)
					if err != nil {
						TextColor = walk.RGB(byte(255), byte(48), byte(48))
						outTE.SetTextColor(TextColor)
						outTE.SetText("数据格式不正确")
						return
					}
					TextColor = walk.RGB(byte(34), byte(139), byte(34))
					//outTE.SetTextSelection(1, 10)
					outTE.SetTextColor(TextColor)
					outTE.SetText(string(jsonStr.([]uint8)))
				},
			},
		},
	}.Run()
}

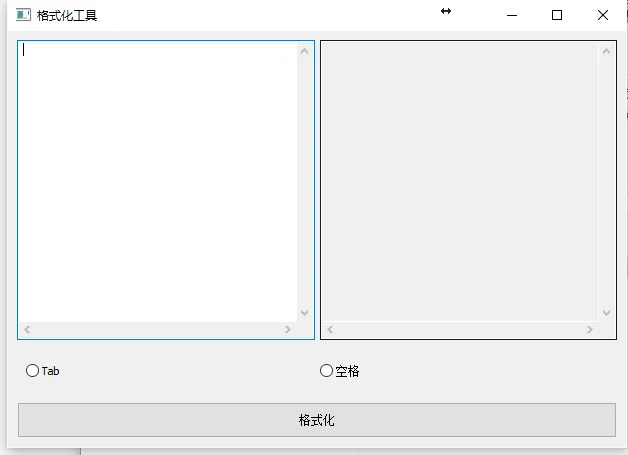

运行的最终效果图：





由于是练习GUI的使用方式，并未在代码阅读性和性能方面做功夫，

比如： 应该将处理数据的逻辑代码独立出来， 与gui代码逻辑分离

更多建议贵请留言 ^_^
