WebSocket协议是基于TCP的一种新的网络协议。它实现了浏览器与服务器全双工(full-duplex)通信——允许服务器主动发送信息给客户端。
WebSocket通信协议于2011年被IETF定为标准RFC 6455，并被RFC7936所补充规范。
在golang语言中，目前有两种比较常用的实现方式：一个是golang自带的库，另一个是gorilla，功能强大。
golang自带库的使用例子可参考以前的博文:Golang如何使用websocket
本文以gorilla为例，介绍websocket的使用。
下载gorilla
# go get github.com/gorilla/websocket
下面例子中主要包括两部分，server和client。
client部分又包括：web client(浏览器)和非web client。
server
server端是一个HTTP 服务器，监听8080端口。
当接收到连接请求后，将连接使用的http协议升级为websocket协议。后续通信过程中，使用websocket进行通信。
对每个连接，server端等待读取数据，读到数据后，打印数据，然后，将数据又发送给client.
server启动方式
# go run server.go
server.go代码如下：
// Copyright 2015 The Gorilla WebSocket Authors. All rights reserved.
// Use of this source code is governed by a BSD-style
// license that can be found in the LICENSE file.
// +build ignore
package main
import (
"flag"
"html/template"
"log"
"net/http"
"github.com/gorilla/websocket"
)
var addr = flag.String("addr", "localhost:8080", "http service address")
var upgrader = websocket.Upgrader{} // use default options
func echo(w http.ResponseWriter, r *http.Request) {
c, err := upgrader.Upgrade(w, r, nil)
if err != nil {
log.Print("upgrade:", err)
return
}
defer c.Close()
for {
mt, message, err := c.ReadMessage()
if err != nil {
log.Println("read:", err)
break
}
log.Printf("recv: %s", message)
err = c.WriteMessage(mt, message)
if err != nil {
log.Println("write:", err)
break
}
}
}
func home(w http.ResponseWriter, r *http.Request) {
homeTemplate.Execute(w, "ws://"+r.Host+"/echo")
}
func main() {
flag.Parse()
log.SetFlags(0)
http.HandleFunc("/echo", echo)
http.HandleFunc("/", home)
log.Fatal(http.ListenAndServe(*addr, nil))
}
var homeTemplate = template.Must(template.New("").Parse(`
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<script>
window.addEventListener("load", function(evt) {
var output = document.getElementById("output");
var input = document.getElementById("input");
var ws;
var print = function(message) {
var d = document.createElement("div");
d.innerHTML = message;
output.appendChild(d);
};
document.getElementById("open").onclick = function(evt) {
if (ws) {
return false;
}
ws = new WebSocket("{{.}}");
ws.onopen = function(evt) {
print("OPEN");
}
ws.onclose = function(evt) {
print("CLOSE");
ws = null;
}
ws.onmessage = function(evt) {
print("RESPONSE: " + evt.data);
}
ws.onerror = function(evt) {
print("ERROR: " + evt.data);
}
return false;
};
document.getElementById("send").onclick = function(evt) {
if (!ws) {
return false;
}
print("SEND: " + input.value);
ws.send(input.value);
return false;
};
document.getElementById("close").onclick = function(evt) {
if (!ws) {
return false;
}
ws.close();
return false;
};
});
</script>
</head>
<body>
<table>
<tr><td valign="top" width="50%">
<p>Click "Open" to create a connection to the server,
"Send" to send a message to the server and "Close" to close the connection.
You can change the message and send multiple times.
<p>
<form>
<button id="open">Open</button>
<button id="close">Close</button>
<p><input id="input" type="text" value="Hello world!">
<button id="send">Send</button>
</form>
</td><td valign="top" width="50%">
<div id="output"></div>
</td></tr></table>
</body>
</html>
`))
server output:
recv: 2018-10-20 17:09:12.497129965 +0800 CST m=+1.010137585
recv: 2018-10-20 17:09:13.495602484 +0800 CST m=+2.008641088
recv: 2018-10-20 17:09:14.49401062 +0800 CST m=+3.007080206
recv: 2018-10-20 17:09:15.497114615 +0800 CST m=+4.010215329
recv: 2018-10-20 17:09:16.494394706 +0800 CST m=+5.007526368
read: websocket: close 1000 (normal)
非web client
client启动后，首先连接server。
连接建立后，主routine每一秒钟向server发送消息(当前时间)。
另一个routine从server接收数据,并打印。
当client退出时，会向server发送关闭消息。接着，等待退出。
client启动方式
# go run client.go
client代码如下:
// Copyright 2015 The Gorilla WebSocket Authors. All rights reserved.
// Use of this source code is governed by a BSD-style
// license that can be found in the LICENSE file.
// +build ignore
package main
import (
"flag"
"log"
"net/url"
"os"
"os/signal"
"time"
"github.com/gorilla/websocket"
)
var addr = flag.String("addr", "localhost:8080", "http service address")
func main() {
flag.Parse()
log.SetFlags(0)
interrupt := make(chan os.Signal, 1)
signal.Notify(interrupt, os.Interrupt)
u := url.URL{Scheme: "ws", Host: *addr, Path: "/echo"}
log.Printf("connecting to %s", u.String())
c, _, err := websocket.DefaultDialer.Dial(u.String(), nil)
if err != nil {
log.Fatal("dial:", err)
}
defer c.Close()
done := make(chan struct{})
go func() {
defer close(done)
for {
_, message, err := c.ReadMessage()
if err != nil {
log.Println("read:", err)
return
}
log.Printf("recv: %s", message)
}
}()
ticker := time.NewTicker(time.Second)
defer ticker.Stop()
for {
select {
case <-done:
return
case t := <-ticker.C:
err := c.WriteMessage(websocket.TextMessage, []byte(t.String()))
if err != nil {
log.Println("write:", err)
return
}
case <-interrupt:
log.Println("interrupt")
// Cleanly close the connection by sending a close message and then
// waiting (with timeout) for the server to close the connection.
err := c.WriteMessage(websocket.CloseMessage, websocket.FormatCloseMessage(websocket.CloseNormalClosure, ""))
if err != nil {
log.Println("write close:", err)
return
}
select {
case <-done:
case <-time.After(time.Second):
}
return
}
}
}
client output:
connecting to ws://localhost:8080/echo
recv: 2018-10-20 17:09:12.497129965 +0800 CST m=+1.010137585
recv: 2018-10-20 17:09:13.495602484 +0800 CST m=+2.008641088
recv: 2018-10-20 17:09:14.49401062 +0800 CST m=+3.007080206
recv: 2018-10-20 17:09:15.497114615 +0800 CST m=+4.010215329
recv: 2018-10-20 17:09:16.494394706 +0800 CST m=+5.007526368
^Cinterrupt
read: websocket: close 1000 (normal)

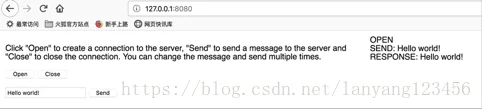

web client
web client，也就是使用浏览器。
在浏览器中输入http://127.0.0.1:8080
"Open"，然后"send"
server output:
recv: Hello world!!
