切片作为常用的数据结构体之一,切片实际上是数组的抽象，也称动态数组，顾名思义，它自带扩容的机制，因为其灵活性，相对数组来说被运用的更加广泛。
结构体
golang的切片实现是在包runtime/slice.go,切片结构体包含array指向数组的指针，是一块连续的内存空间,len代表切片的长度,cap代表切片的容量,cap总是大于等于len。
type slice struct {
array unsafe.Pointer
len int
cap int
}

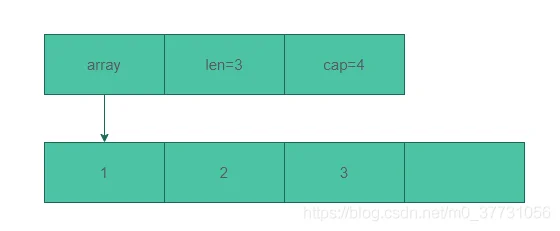

从上图可以看出,切片是在数组的基础上抽象了一层，底层是对数组的引用,当切片发生扩容时,底层数组发生改变，而对于上层切片来说是没有变化的。
make初始化
先来看看slice的初始化,slice的初始化可以通过make关键字,传入type、len、cap。
make(Type,len,cap)
var numbers = make([]int64,5,6)
slice的make初始化主要通过runtime.makeslice来完成,先计算出需要的内存空间大小，然后再分配内存。
func makeslice(et *_type, len, cap int) unsafe.Pointer {
//计算需要分配的内存空间和内存是否有溢出
mem, overflow := math.MulUintptr(et.size, uintptr(cap))
if overflow || mem > maxAlloc || len < 0 || len > cap {
// NOTE: Produce a 'len out of range' error instead of a
// 'cap out of range' error when someone does make([]T, bignumber).
// 'cap out of range' is true too, but since the cap is only being
// supplied implicitly, saying len is clearer.
// See golang.org/issue/4085.
mem, overflow := math.MulUintptr(et.size, uintptr(len))
if overflow || mem > maxAlloc || len < 0 {
panicmakeslicelen()
}
panicmakeslicecap()
}
//分配内存
return mallocgc(mem, et, true)
}
内存空间大小的计算公式为：
内存空间大小 = 切片中元素大小 * 容量大小
append扩容
当使用append的时候就可能会触发切片的扩容机制,扩容是调用runtime.growslice,具体步骤为：
func growslice(et *_type, old slice, cap int) slice {
.....
newcap := old.cap
doublecap := newcap + newcap
if cap > doublecap {
newcap = cap
} else {
if old.len < 1024 {
newcap = doublecap
} else {
// Check 0 < newcap to detect overflow
// and prevent an infinite loop.
for 0 < newcap && newcap < cap {
newcap += newcap / 4
}
// Set newcap to the requested cap when
// the newcap calculation overflowed.
if newcap <= 0 {
newcap = cap
}
}
}
}
.....
func growslice(et *_type, old slice, cap int) slice {
var overflow bool
var lenmem, newlenmem, capmem uintptr
/*
*lenmem表示旧切片实际元素长度所占的内存空间大小
*newlenmem表示新切片实际元素长度所占的内存空间大小
*capmem表示扩容之后的容量大小
*overflow是否溢出
*/
// Specialize for common values of et.size.
// For 1 we don't need any division/multiplication.
// For sys.PtrSize, compiler will optimize division/multiplication into a shift by a constant.
// For powers of 2, use a variable shift.
switch {
case et.size == 1: //元素所占的字节数为1
lenmem = uintptr(old.len)
newlenmem = uintptr(cap)
capmem = roundupsize(uintptr(newcap))//向上取整分配内存
overflow = uintptr(newcap) > maxAlloc
newcap = int(capmem)
case et.size == sys.PtrSize: //元素所占的字节数为8个字节
lenmem = uintptr(old.len) * sys.PtrSize
newlenmem = uintptr(cap) * sys.PtrSize
capmem = roundupsize(uintptr(newcap) * sys.PtrSize)
overflow = uintptr(newcap) > maxAlloc/sys.PtrSize
newcap = int(capmem / sys.PtrSize)
case isPowerOfTwo(et.size): //元素所占的字节数为2的倍数
var shift uintptr
//根据元素的字节数计算出位运算系数
if sys.PtrSize == 8 {
// Mask shift for better code generation.
shift = uintptr(sys.Ctz64(uint64(et.size))) & 63
} else {
shift = uintptr(sys.Ctz32(uint32(et.size))) & 31
}
//计算内存空间转化为用位运算
lenmem = uintptr(old.len) << shift
newlenmem = uintptr(cap) << shift
capmem = roundupsize(uintptr(newcap) << shift)
overflow = uintptr(newcap) > (maxAlloc >> shift)
newcap = int(capmem >> shift)
default:
lenmem = uintptr(old.len) * et.size
newlenmem = uintptr(cap) * et.size
capmem, overflow = math.MulUintptr(et.size, uintptr(newcap))
capmem = roundupsize(capmem)
newcap = int(capmem / et.size)
}
}计算出需要分配的内存大小后，就会重新申请内存,然后将原来切片的元素重新赋值到新的切片中。
``` go
func growslice(et *_type,old slice,cap int)slice{
var p unsafe.Pointer
//如果元素不是指针
if et.ptrdata == 0{
//申请一块无类型的内存空间
p = mallocgc(capmem, nil, false)
// The append() that calls growslice is going to overwrite from old.len to cap (which will be the new length).
// Only clear the part that will not be overwritten.
//将超出切片当前长度的位置进行初始化
memclrNoHeapPointers(add(p, newlenmem), capmem-newlenmem)
}else{
// Note: can't use rawmem (which avoids zeroing of memory), because then GC can scan uninitialized memory.
//根据元素类型申请内存空间
p = mallocgc(capmem,et,true)
if lenmem > 0 && writeBarrier.enabled {
// Only shade the pointers in old.array since we know the destination slice p
// only contains nil pointers because it has been cleared during alloc.
bulkBarrierPreWriteSrcOnly(uintptr(p), uintptr(old.array), lenmem-et.size+et.ptrdata)
}
}
//将旧切片的值拷入新的切片
memmove(p, old.array, lenmem)
}
拷贝切片
拷贝切片可以用copy方法
func copy(dst, src []Type) int
func main() {
var number1 =[]int64{1}
var number2 =make([]int64,len(number1))
copy(number2,number1)
fmt.Println(number2)
}
实际上copy根据数据类型，最终会调用切片的runtime.slicecopy方法。
func slicecopy(toPtr unsafe.Pointer, toLen int, fmPtr unsafe.Pointer, fmLen int, width uintptr) int {
//如果源切片和目标切片长度为0,则直接返回0
if fmLen == 0 || toLen == 0 {
return 0
}
//根据源切片和目标切片的长度，以长度最小的切片进行拷贝
n := fmLen
if toLen < n {
n = toLen
}
if width == 0 {
return n
}
//拷贝的空间大小=长度 * 元素大小
size := uintptr(n) * width
if size == 1 { // common case worth about 2x to do here
// TODO: is this still worth it with new memmove impl?
//如果拷贝的空间大小等于1,那么直接转化赋值
*(*byte)(toPtr) = *(*byte)(fmPtr) // known to be a byte pointer
} else {
//如果拷贝的空间大小大于1,则源切片中array的数据拷贝到目标切片的array
memmove(toPtr, fmPtr, size)
}
return n
}
从源码可以看出在切片拷贝的时候，要预先定义切片的长度再进行拷贝，否则有可能拷贝失败。
总结
- 在扩容过程中,切片的地址不会被改变,改变的是切片的底层数组array,会申请一块新的内存地址替换。
- slice没有缩小容量的操作 更多欢迎关注go成神之路
