java xml转pem

小白一枚，搞这个弄得心力交瘁，希望对你们有用…

参考了大牛的实现，https://github.com/ZZMarquis/gmhelper

感谢大牛的贡献，不然我等小白真的…

pom.xml

4.0.0

com.jinhongjian.testBCgm

testBCgm-test

1.0-SNAPSHOT

org.apache.maven.plugins

maven-compiler-plugin

6

6

org.bouncycastle

bcprov-jdk15on

1.60

org.bouncycastle

bcpkix-jdk15on

1.60

java程序

程序里面包含的功能有：sm2 公私钥对的生成，x509证书的生成，私钥以及证书转成pem格式保存到文件中

这里面是生成的自签发的CA证书。我也是新手，代码不规范请见谅…

import org.bouncycastle.asn1.gm.GMNamedCurves;

import org.bouncycastle.asn1.x509.*;

import org.bouncycastle.asn1.x500.X500Name;

import org.bouncycastle.asn1.x9.X9ECParameters;

import org.bouncycastle.cert.X509v3CertificateBuilder;

import org.bouncycastle.cert.jcajce.JcaX509CertificateConverter;

import org.bouncycastle.cert.jcajce.JcaX509ExtensionUtils;

import org.bouncycastle.cert.jcajce.JcaX509v3CertificateBuilder;

import org.bouncycastle.crypto.params.*;

import org.bouncycastle.jcajce.provider.asymmetric.ec.BCECPublicKey;

import org.bouncycastle.jce.provider.BouncyCastleProvider;

import org.bouncycastle.jce.spec.ECParameterSpec;

import org.bouncycastle.openssl.jcajce.JcaPEMWriter;

import org.bouncycastle.operator.ContentSigner;

import org.bouncycastle.operator.OperatorCreationException;

import org.bouncycastle.operator.jcajce.JcaContentSignerBuilder;

import org.bouncycastle.pkcs.PKCS10CertificationRequest;

import org.bouncycastle.pkcs.PKCS10CertificationRequestBuilder;

import org.bouncycastle.pkcs.jcajce.JcaPKCS10CertificationRequestBuilder;

import org.bouncycastle.util.io.pem.PemObject;

import javax.xml.bind.DatatypeConverter;

import java.io.*;

import java.math.BigInteger;

import java.security.*;

import java.security.cert.X509Certificate;

import java.util.*;

public class x509Cert {

private static X9ECParameters x9ECParameters = GMNamedCurves.getByName("sm2p256v1");

private static ECParameterSpec ecParameterSpec = new ECParameterSpec(x9ECParameters.getCurve(), x9ECParameters.getG(), x9ECParameters.getN());

public static final String SIGN_ALGO_SM3WITHSM2 = "SM3withSM2";

static {

if (Security.getProvider("BC") == null) {

Security.addProvider(new org.bouncycastle.jce.provider.BouncyCastleProvider());

}

}

public static KeyPair generateKeyPair(){

try {

KeyPairGenerator kpGen = KeyPairGenerator.getInstance("EC", "BC");

kpGen.initialize(ecParameterSpec, new SecureRandom());

KeyPair kp = kpGen.generateKeyPair();

return kp;

} catch (Exception e) {

throw new RuntimeException(e);

}

}

public static PKCS10CertificationRequest createCSR(X500Name subject, SM2PublicKey pubKey, PrivateKey priKey,String signAlgo)

throws OperatorCreationException {

PKCS10CertificationRequestBuilder csrBuilder = new JcaPKCS10CertificationRequestBuilder(subject, pubKey);

ContentSigner signerBuilder = new JcaContentSignerBuilder(signAlgo)

.setProvider(BouncyCastleProvider.PROVIDER_NAME).build(priKey);

return csrBuilder.build(signerBuilder);

}

private static JcaContentSignerBuilder makeContentSignerBuilder(PublicKey issPub) throws Exception {

if (issPub.getAlgorithm().equals("EC")) {

JcaContentSignerBuilder contentSignerBuilder = new JcaContentSignerBuilder(SIGN_ALGO_SM3WITHSM2);

contentSignerBuilder.setProvider(BouncyCastleProvider.PROVIDER_NAME);

return contentSignerBuilder;

}

throw new Exception("Unsupported PublicKey Algorithm:" + issPub.getAlgorithm());

}

//生成自签发ca证书

public static X509Certificate caCertGen(KeyPair keypair)throws Exception {

X500Name issuerDN = new X500Name("CN=My Application,O=My Organisation,L=My City,C=DE");

SM2PublicKey sm2SubPub = new SM2PublicKey(keypair.getPublic().getAlgorithm(),

(BCECPublicKey) keypair.getPublic());

byte[] csr = createCSR(issuerDN, sm2SubPub, keypair.getPrivate(), "SM3withSM2").getEncoded();

PKCS10CertificationRequest request = new PKCS10CertificationRequest(csr);

PublicKey subPub = BCECUtil.createPublicKeyFromSubjectPublicKeyInfo(request.getSubjectPublicKeyInfo());

PrivateKey issPriv = keypair.getPrivate();

PublicKey issPub = keypair.getPublic();

Calendar c = Calendar.getInstance();

c.add(Calendar.YEAR,1);//日期加1年

Date startDate = new Date();

Date endDate = c.getTime();

JcaX509ExtensionUtils extUtils = new JcaX509ExtensionUtils();

X509v3CertificateBuilder v3CertGen = new JcaX509v3CertificateBuilder(issuerDN, BigInteger.valueOf(System.currentTimeMillis()),

startDate, endDate, request.getSubject(), subPub);

v3CertGen.addExtension(Extension.subjectKeyIdentifier, false,

extUtils.createSubjectKeyIdentifier(SubjectPublicKeyInfo.getInstance(subPub.getEncoded())));

v3CertGen.addExtension(Extension.authorityKeyIdentifier, false,

extUtils.createAuthorityKeyIdentifier(SubjectPublicKeyInfo.getInstance(issPub.getEncoded())));

v3CertGen.addExtension(Extension.basicConstraints, false, new BasicConstraints(true));

v3CertGen.addExtension(Extension.keyUsage, false, new KeyUsage(KeyUsage.digitalSignature | KeyUsage.dataEncipherment

| KeyUsage.keyCertSign | KeyUsage.cRLSign));

JcaContentSignerBuilder contentSignerBuilder = makeContentSignerBuilder(issPub);

X509Certificate cert = new JcaX509CertificateConverter().setProvider(BouncyCastleProvider.PROVIDER_NAME)

.getCertificate(v3CertGen.build(contentSignerBuilder.build(issPriv)));

cert.checkValidity(new Date());

cert.verify(issPub);

return cert;

}

public static String saveX509ToPemFile(X509Certificate x509Cert, String path) throws Exception {

PemObject pemCSR = new PemObject("CERTIFICATE REQUEST", x509Cert.getEncoded());

StringWriter str = new StringWriter();

JcaPEMWriter pemWriter = new JcaPEMWriter(str);

pemWriter.writeObject(pemCSR);

pemWriter.close();

str.close();

FileOutputStream certOut = new FileOutputStream(path);

certOut.write(str.toString().getBytes());

return str.toString();

}

public static void savePrivateKey(PrivateKey priv, String keyFileName) throws IOException {

// 保存private key

try {

FileOutputStream keyOut = new FileOutputStream(keyFileName);

StringBuilder sb = new StringBuilder(300);

sb.append("-----BEGIN PRIVATE KEY-----\n");

String priKey = DatatypeConverter.printBase64Binary(priv.getEncoded());

// 每64个字符输出一个换行

int LEN = priKey.length();

for (int ix = 0; ix < LEN; ++ix) {

sb.append(priKey.charAt(ix));

if ((ix + 1) % 64 == 0) {

sb.append('\n');

}

}

sb.append("\n-----END PRIVATE KEY-----\n");

keyOut.write(sb.toString().getBytes());

} catch (Exception e) {

throw new RuntimeException(e);

}

}

public static void main(String[] args) throws Exception {

// 生成公私钥对 ---------------------

KeyPair kp = generateKeyPair();

X509Certificate cert = caCertGen(kp);

System.out.println(cert);

savePrivateKey(kp.getPrivate(),"cert/privSm2.pri");

String pemCertString = saveX509ToPemFile(cert,"cert/certSm2.crt");

System.out.println(pemCertString);

}

}

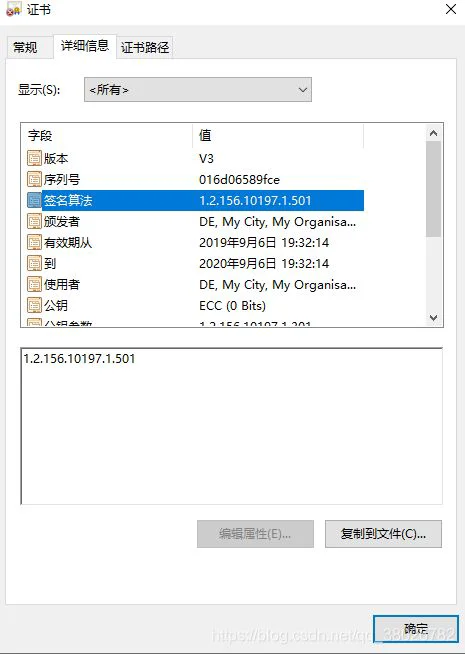

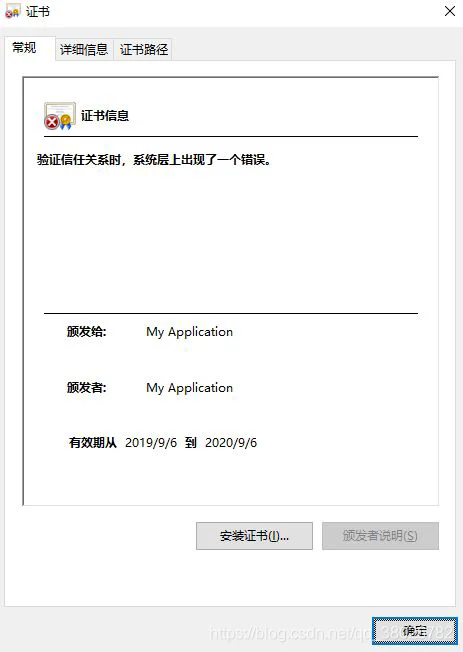

生成的证书在Windows下查看是这样的：

使用golang的 tjfoc 国密实现对证书及密钥进行验证

package main

import (

"github.com/tjfoc/gmsm/sm2"

"fmt"

"log"

"reflect"

"encoding/asn1"

"math/big"

"crypto/ecdsa"

)

type dsaSignature struct {

R, S *big.Int

}

type ecdsaSignature dsaSignature

func main(){

privKey, err := sm2.ReadPrivateKeyFromPem("cert/privSm2.pri", nil) // 读取密钥

if err != nil {

log.Fatal(err)

}

pubkey1 := privKey.Public()

fmt.Println(reflect.TypeOf(pubkey1))

r,s,err :=sm2.Sm2Sign(privKey,[]byte("qwe"),nil)

if err != nil {

log.Fatal(err)

}

fmt.Println(pubkey1)

cert, err := sm2.ReadCertificateFromPem("cert/certSm2.crt")

if err != nil {

fmt.Printf("failed to read cert file")

}

pubkey2 := cert.PublicKey.(*ecdsa.PublicKey)

fmt.Println(reflect.TypeOf(pubkey2))

sm2pubkey := sm2.PublicKey{

pubkey2.Curve,

pubkey2.X,

pubkey2.Y,

}

fmt.Println("###########################")

fmt.Println(sm2.Sm2Verify(&sm2pubkey,[]byte("qwe"),nil,r,s))

fmt.Println(pubkey2)

ecdsaSig := new(ecdsaSignature)

if _, err := asn1.Unmarshal(cert.Signature, ecdsaSig); err != nil {

log.Fatal(err)

}

//直接验证证书里的签名

fmt.Println(sm2.Sm2Verify(&sm2pubkey,cert.RawTBSCertificate,nil,ecdsaSig.R,ecdsaSig.S))

err = cert.CheckSignature(cert.SignatureAlgorithm, cert.RawTBSCertificate, cert.Signature)

if err != nil {

log.Fatal(err)

} else {

fmt.Printf("CheckSignature ok\n")

}

}

这一步的目的就是看看这证书到底生成的对不对了…目前验证的是私钥中提出的公钥可以验证证书里的签名成功，证书自己验证也可以成功
