22届211本科,在字节实习了一年多,正式工作了半年,工作主要是golang业务研发,go语言使用和生态比java简洁很多,也存在部分容易遇见的问题,常用结构需要对其底层实现略有了解才不容易写出有问题的代码。
本文学习主要参考《Go 语言设计与实现》一书,其对go语言部分底层实现解释较为清晰,但书上的都是别人的,故写一篇记录。
一、Map简介
哈希表是编程语言中必备的常见数据结构,也叫做映射、map、散列表。map实际上是一个非常简单的数据结构,其核心为hash函数、数组、拉链(或类似拉链)。
map使用数组存储元素,但是不像列表一样顺序存储,而是使用hash函数获得存储key的hash值,通常经过取模运算获得最终数组index然后存储数据,这样从map中查询元素时即可通过key计算数组index,快速定位已经存储的元素。hash冲突是不同的key通过hash函数可能得到的hash值去模后时一样的,例如数学中的抛物线函数,一定存在两个x对应的y值一样,此时数组存储在原位上就不够用了,通常使用开放寻址法或者拉链法处理,此处不展开。
map数据结构相比数组提高了集合元素的查询效率,最快有O(1)的时间复杂度,但是如果hash冲突严重,可能退化成O(n)。
不同语言中map实现主题一样,细节可能有些差别。Java中Map的实现主要是通过拉链法,如果拉链过长则会将链表转化成红黑树,在Java中数组的每个元素就是一个桶,即一个桶只有一个头元素,冲突后立即拉链。Golang中的数组每个元素是一个bmap,其中能够存储8个key-value对,并且bmap支持拉链,以bmap作为链表元素,链表元素的value是8个key-value对。Java中链表转化红黑树的条件为数组长度大于等于64且链表长度大于8,为什么都是8呢?据说按照正态分布,hash冲突为8的概率已经非常小,故Java设置8可以减少维持红黑树的性能成本,golang设置为8可以减少拉链的空间成本。
golang中bmap里可以存储8个key-value对,其实顺序存储就行了,类似java的拉链存储。而当bmap中存储的元素需要多余8个,即hash冲突过多时,bmap会有一个指向溢出桶bmap结构的指针。
二、 Map的数据结构
golang中map的数据结构使用的是hmap,其中含义明显的字段有count代表map中包含key-value的数量,即len(map)。其中B为map的底层数组长度的对数,即B=log_2(len(buckets))。其中oldbuckets是扩容时用于同时维持老数组的字段。
// A header for a Go map.
type hmap struct {
count int // map的长度
flags uint8
B uint8 // log_2(桶数量)
noverflow uint16 // approximate number of overflow buckets; see incrnoverflow for details
hash0 uint32 // hash seed
buckets unsafe.Pointer // 长度为2^B的桶数组. 如果map是空的可能是空.
oldbuckets unsafe.Pointer // 长度只有一半的老桶数组, 只有扩容时不为空
nevacuate uintptr // progress counter for evacuation (buckets less than this have been evacuated)
extra *mapextra // optional fields
}
数组中的每个元素都是bmap,bmap结构中包含tophash为一个长度为8的uint8数组,用于存储该桶对应hash值的高8位,用hash值的高8位定位桶,低8为定位桶中元素。看注释“接着是 bucketCnt 键,然后是 bucketCnt 元素。”,为什么没有显示声明字段在结构体中呢?个人理解为golang中存在指针计算偏移量的功能,后续插入、查询、扩容都是基于指针计算偏移量来进行的,只需创建的桶数组(本质是一段连续的内存)中包含8个bmap对象,每个bmap对象后面跟着8*(key_size+value_size)的大小即可。这样实现还有一个好处是没有额外的内存消耗,例如维护对象或者padding等。
注释原话是,“注意:将所有键打包在一起,然后将所有元素打包在一起,使代码比交替 keyelemkeyelem 更复杂一些…但它允许我们消除需要的填充,例如 map[int64]int8。后跟一个溢出指针。”
// Maximumnumber of key/elem pairs a bucket can hold.
bucketCntBits = 3
bucketCnt = 1 << bucketCntBits
// A bucket for a Go map.
type bmap struct {
// tophash generally contains the top byte of the hash value
// for each key in this bucket. If tophash[0] < minTopHash,
// tophash[0] is a bucket evacuation state instead.
tophash [bucketCnt]uint8
// Followed by bucketCnt keys and then bucketCnt elems.
// NOTE: packing all the keys together and then all the elems together makes the
// code a bit more complicated than alternating key/elem/key/elem/... but it allows
// us to eliminate padding which would be needed for, e.g., map[int64]int8.
// Followed by an overflow pointer.
}
三、Make一个Map
golang创建一个map对象实例通常使用make(map[k]v, hint),其中math.MulUintptr的含义为两个int指针的数据相乘的结果。
2^B>hint
// makemap implements Go map creation for make(map[k]v, hint).
// If the compiler has determined that the map or the first bucket
// can be created on the stack, h and/or bucket may be non-nil.
// If h != nil, the map can be created directly in h.
// If h.buckets != nil, bucket pointed to can be used as the first bucket.
func makemap(t *maptype, hint int, h *hmap) *hmap {
mem, overflow := math.MulUintptr(uintptr(hint), t.bucket.size)
if overflow || mem > maxAlloc {
hint = 0
}
// initialize Hmap
if h == nil {
h = new(hmap)
}
h.hash0 = fastrand()
// Find the size parameter B which will hold the requested # of elements.
// For hint < 0 overLoadFactor returns false since hint < bucketCnt.
B := uint8(0)
for overLoadFactor(hint, B) {
B++
}
h.B = B
// allocate initial hash table
// if B == 0, the buckets field is allocated lazily later (in mapassign)
// If hint is large zeroing this memory could take a while.
if h.B != 0 {
var nextOverflow *bmap
h.buckets, nextOverflow = makeBucketArray(t, h.B, nil)
if nextOverflow != nil {
h.extra = new(mapextra)
h.extra.nextOverflow = nextOverflow
}
}
return h
}
2^(b-4)
// makeBucketArray initializes a backing array for map buckets.
// 1<<b is the minimum number of buckets to allocate.
// dirtyalloc should either be nil or a bucket array previously
// allocated by makeBucketArray with the same t and b parameters.
// If dirtyalloc is nil a new backing array will be alloced and
// otherwise dirtyalloc will be cleared and reused as backing array.
func makeBucketArray(t *maptype, b uint8, dirtyalloc unsafe.Pointer) (buckets unsafe.Pointer, nextOverflow *bmap) {
base := bucketShift(b)
nbuckets := base
// For small b, overflow buckets are unlikely.
// Avoid the overhead of the calculation.
if b >= 4 {
// Add on the estimated number of overflow buckets
// required to insert the median number of elements
// used with this value of b.
nbuckets += bucketShift(b - 4)
sz := t.bucket.size * nbuckets
up := roundupsize(sz)
if up != sz {
nbuckets = up / t.bucket.size
}
}
if dirtyalloc == nil {
buckets = newarray(t.bucket, int(nbuckets))
} else {
。。。
}
if base != nbuckets {
// We preallocated some overflow buckets.
// To keep the overhead of tracking these overflow buckets to a minimum,
// we use the convention that if a preallocated overflow bucket's overflow
// pointer is nil, then there are more available by bumping the pointer.
// We need a safe non-nil pointer for the last overflow bucket; just use buckets.
nextOverflow = (*bmap)(add(buckets, base*uintptr(t.bucketsize)))
last := (*bmap)(add(buckets, (nbuckets-1)*uintptr(t.bucketsize)))
last.setoverflow(t, (*bmap)(buckets))
}
return buckets, nextOverflow
}

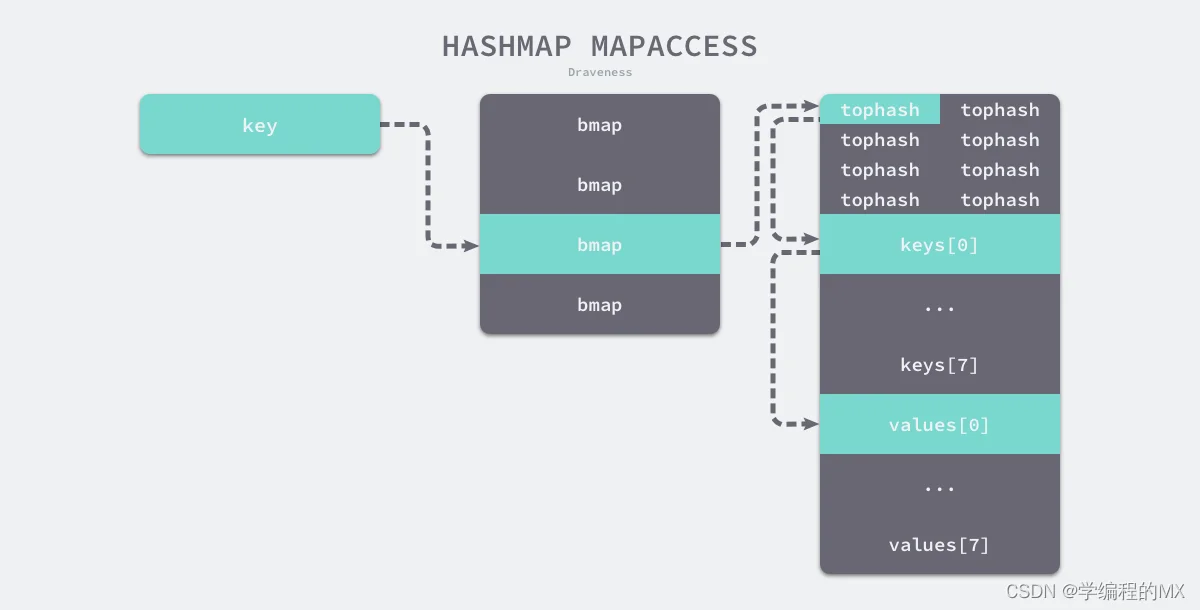

四、Map的访问
有多个mapaccess方法,其中mapaccess1表示只返回value,mapaccess2表示返回value,exist,其他的暂不用了解
- 其中部分逻辑和注释可以忽略阅读
- hash := t.hasher(key, uintptr(h.hash0)) 首先计算hash值
- 通过hash值取模hash&m获得数组索引,然后获得对应桶的bmap结构:b := (*bmap)(add(h.buckets, (hash&m)*uintptr(t.bucketsize)))
- 如果正在扩容,则先从oldbuckets中查询,扩容分为sameSiz扩容和2倍扩容,如果是2倍扩容,老表长度为新表一半,故m >>= 1
- oldb为计算的老表的桶,evacuated函数的含义为疏散,即是否已经迁移到新桶
- 进入bucketloop,此时b代表的要么是非扩容状态下桶中的bmap,要么是扩容时的新数组中的桶或者老数据中的桶(取决于该桶是否已经迁移新数组)
- for ; b != nil; b = b.overflow(t) 即为遍历桶及其链接的溢出桶,即遍历桶链表,实际上否底层数组分配在同一片连续空间,只是用指针串成链表
- for i := uintptr(0); i < bucketCnt; i++ 遍历桶中8个元素的高位hash值
- t.indirectkey() 如果map的key类型是指针,则会使用指针指向的对象作为比较依据
// mapaccess1 returns a pointer to h[key]. Never returns nil, instead
// it will return a reference to the zero object for the elem type if
// the key is not in the map.
// NOTE: The returned pointer may keep the whole map live, so don't
// hold onto it for very long.
func mapaccess1(t *maptype, h *hmap, key unsafe.Pointer) unsafe.Pointer {
。。。
if h == nil || h.count == 0 {
if t.hashMightPanic() {
t.hasher(key, 0) // see issue 23734
}
return unsafe.Pointer(&zeroVal[0])
}
if h.flags&hashWriting != 0 {
throw("concurrent map read and map write")
}
hash := t.hasher(key, uintptr(h.hash0))
m := bucketMask(h.B)
b := (*bmap)(add(h.buckets, (hash&m)*uintptr(t.bucketsize)))
if c := h.oldbuckets; c != nil {
if !h.sameSizeGrow() {
// There used to be half as many buckets; mask down one more power of two.
m >>= 1
}
oldb := (*bmap)(add(c, (hash&m)*uintptr(t.bucketsize)))
if !evacuated(oldb) {
b = oldb
}
}
top := tophash(hash)
bucketloop:
for ; b != nil; b = b.overflow(t) {
for i := uintptr(0); i < bucketCnt; i++ {
if b.tophash[i] != top {
if b.tophash[i] == emptyRest {
break bucketloop
}
continue
}
k := add(unsafe.Pointer(b), dataOffset+i*uintptr(t.keysize))
if t.indirectkey() {
k = *((*unsafe.Pointer)(k))
}
if t.key.equal(key, k) {
e := add(unsafe.Pointer(b), dataOffset+bucketCnt*uintptr(t.keysize)+i*uintptr(t.elemsize))
if t.indirectelem() {
e = *((*unsafe.Pointer)(e))
}
return e
}
}
}
return unsafe.Pointer(&zeroVal[0])
}
五、Map的插入
如果阅读过Java的HashMap源码,实际上插入方法&扩容方法已经可以完全说明Map的实现原理,其他方法都可以依次类推,上述讲解了map的访问,实际上是方便理解
- 老规矩先计算插入元素的hash值:hash := t.hasher(key, uintptr(h.hash0))
- hash值取模获得最终bmap桶index对应的b对象:bucket := hash & bucketMask(h.B)
- 此处有个for循环,目的是遍历桶元素及其拉链的溢出桶,
- 内层for循环用于便利桶中8个kv对(其中部分有可能为空,用枚举的hash值标记),for i := uintptr(0); i < bucketCnt; i++
- 如果遍历桶中8个kv位置的当前位置有空位,则插入其中,记录要插入的index和key位置和value位置
- 如果遍历桶中8个kv位置的当前位置已经被占用了,说明要插入的地方已经有key-value对了,接下来就判断key是否相等,相等说明是一样的key,已经插入过旧value了,需要覆盖,如果不想等,则和tohash高位不想等是一样的,继续往后判断,如果后续有空位则插入其中
- 上述结束后,我们发现当桶满了之后,我们就没有插入了,所以桶拉链指向溢出桶的逻辑在更后面的逻辑中
- 插入溢出桶的逻辑不着急,先判断负载因子看需不需要扩容,需要的话则进行扩容
- 然后检查是否已经插入,没有插入说明map中没有位置可以插入了,需要创建溢出桶插入,这句代码就是给桶b插入溢出桶,让后将插入数据在在溢出桶首位。newb := h.newoverflow(t, b)
// Like mapaccess, but allocates a slot for the key if it is not present in the map.
func mapassign(t *maptype, h *hmap, key unsafe.Pointer) unsafe.Pointer {
if h == nil {
panic(plainError("assignment to entry in nil map"))
}
hash := t.hasher(key, uintptr(h.hash0))
// Set hashWriting after calling t.hasher, since t.hasher may panic,
// in which case we have not actually done a write.
h.flags ^= hashWriting
if h.buckets == nil {
h.buckets = newobject(t.bucket) // newarray(t.bucket, 1)
}
again:
bucket := hash & bucketMask(h.B)
if h.growing() {
growWork(t, h, bucket)
}
b := (*bmap)(add(h.buckets, bucket*uintptr(t.bucketsize)))
top := tophash(hash)
var inserti *uint8
var insertk unsafe.Pointer
var elem unsafe.Pointer
bucketloop:
for {
for i := uintptr(0); i < bucketCnt; i++ {
if b.tophash[i] != top {
if isEmpty(b.tophash[i]) && inserti == nil {
inserti = &b.tophash[i]
insertk = add(unsafe.Pointer(b), dataOffset+i*uintptr(t.keysize))
elem = add(unsafe.Pointer(b), dataOffset+bucketCnt*uintptr(t.keysize)+i*uintptr(t.elemsize))
}
if b.tophash[i] == emptyRest {
break bucketloop
}
continue
}
k := add(unsafe.Pointer(b), dataOffset+i*uintptr(t.keysize))
if t.indirectkey() {
k = *((*unsafe.Pointer)(k))
}
if !t.key.equal(key, k) {
continue
}
// already have a mapping for key. Update it.
if t.needkeyupdate() {
typedmemmove(t.key, k, key)
}
elem = add(unsafe.Pointer(b), dataOffset+bucketCnt*uintptr(t.keysize)+i*uintptr(t.elemsize))
goto done
}
ovf := b.overflow(t)
if ovf == nil {
break
}
b = ovf
}
// Did not find mapping for key. Allocate new cell & add entry.
// If we hit the max load factor or we have too many overflow buckets,
// and we're not already in the middle of growing, start growing.
if !h.growing() && (overLoadFactor(h.count+1, h.B) || tooManyOverflowBuckets(h.noverflow, h.B)) {
hashGrow(t, h)
goto again // Growing the table invalidates everything, so try again
}
if inserti == nil {
// The current bucket and all the overflow buckets connected to it are full, allocate a new one.
newb := h.newoverflow(t, b)
inserti = &newb.tophash[0]
insertk = add(unsafe.Pointer(newb), dataOffset)
elem = add(insertk, bucketCnt*uintptr(t.keysize))
}
// store new key/elem at insert position
done:
if h.flags&hashWriting == 0 {
throw("concurrent map writes")
}
h.flags &^= hashWriting
return elem
}
六、Map的扩容
1. 创建新数组,维护新老指针
根据map插入中的逻辑,会调用hashGrow函数进行扩容,可以容易看出函数中只涉及新数组的创建,以及维护新老数组、新老溢出桶的指针,并没有实际桶数据迁移操作
func hashGrow(t *maptype, h *hmap) {
// If we've hit the load factor, get bigger.
// Otherwise, there are too many overflow buckets,
// so keep the same number of buckets and "grow" laterally.
bigger := uint8(1)
if !overLoadFactor(h.count+1, h.B) {
bigger = 0
h.flags |= sameSizeGrow
}
oldbuckets := h.buckets
newbuckets, nextOverflow := makeBucketArray(t, h.B+bigger, nil)
flags := h.flags &^ (iterator | oldIterator)
if h.flags&iterator != 0 {
flags |= oldIterator
}
// commit the grow (atomic wrt gc)
h.B += bigger
h.flags = flags
h.oldbuckets = oldbuckets
h.buckets = newbuckets
h.nevacuate = 0
h.noverflow = 0
if h.extra != nil && h.extra.overflow != nil {
// Promote current overflow buckets to the old generation.
if h.extra.oldoverflow != nil {
throw("oldoverflow is not nil")
}
h.extra.oldoverflow = h.extra.overflow
h.extra.overflow = nil
}
if nextOverflow != nil {
if h.extra == nil {
h.extra = new(mapextra)
}
h.extra.nextOverflow = nextOverflow
}
// the actual copying of the hash table data is done incrementally
// by growWork() and evacuate().
}
2. 迁移数据
在hashGrow函数的结尾注释中,迁移数据存在于函数growWork和evacuate里。属实有点复杂,下次再写,,,,等xmd催更
func growWork(t *maptype, h *hmap, bucket uintptr) {
// make sure we evacuate the oldbucket corresponding
// to the bucket we're about to use
evacuate(t, h, bucket&h.oldbucketmask())
// evacuate one more oldbucket to make progress on growing
if h.growing() {
evacuate(t, h, h.nevacuate)
}
}
